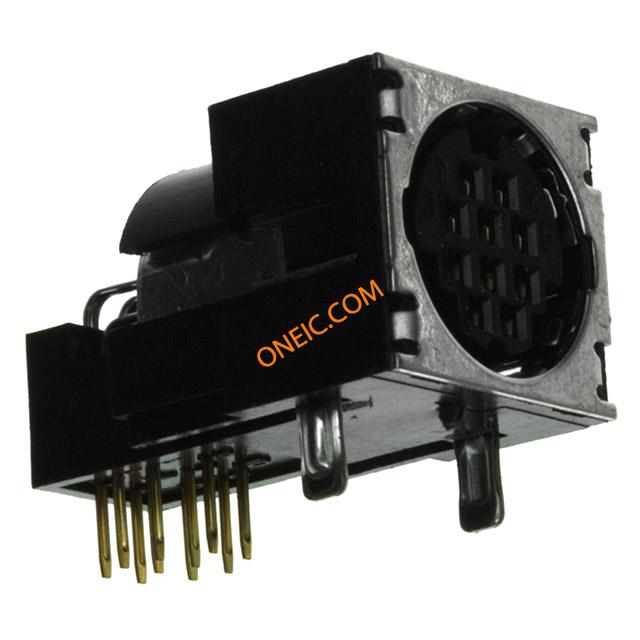

HR212-10RC-10SDL(74)
| Manufacturer | |
| Description | Standard Circular Connector REC 10P R/A GOLD BLK CONN RECEPT 10POS R/A GOLD BLACK Conn Miniature Circular DIN F 10 POS Solder ST Thru-Hole 10 Terminal 1 Port |
| Category |
对参数有疑问？问 AI 助手
Business
| Standard Package | 50 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC | Current Rating (Max) | 1A |
Mechanical
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 10 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder |
| Contact Form | 10Signal | Mounting Type | Through Hole, Right Angle |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Gold |
| Fastening Type | Push-Pull | Mounting Style | Through Hole |
| Contact Material | Phosphor Bronze | 1st Contact Gender | Socket (Female) |
| Mating Orientation | Push-Pull | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | Mini DIN |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Gender | RCP | Series | HR12 |
| DELETED | Compliant | Features | Board Guide, Shielded |
| Main Purpose | Board Guide, Shielded | Product Type | Connectors |
| RF Family/Standard | HR212 | Output Configuration | Through Hole, Right Angle |
Environmental
| Operating Temperature | -15°C ~ 60°C | ||
