HR212-10P-8P(72)
| Manufacturer | |
| Description | Standard Circular Connector PLUG 8P VERT SOLDER TIN CONN PLUG 8POS VERT SOLDER TIN Conn Miniature Circular DIN M 8 POS Solder ST Thru-Hole 8 Terminal 1 Port |
| Category |
Business
| Standard Package | 20 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC | Current Rating (Max) | 1A |
Mechanical
| Depth | Not Required mm | Height | Not Required mm |
| Diameter | 13.2 mm | Packaging | Bulk |
| Cable Exit | No | Shell Size | 10 |
| Orientation | Keyed | Shell Style | Plug |
| Termination | Solder | Contact Form | 8Signal |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug, Male Pins |
| Contact Finish | Tin | Fastening Type | Push-Pull |
| Mounting Style | Through Hole | Shell Material | Plastic |
| Contact Material | Copper Alloy | Length - Overall | 42 mm |
| Termination Style | Solder | 1st Contact Gender | Pin (Male) |
| Mating Orientation | Push-Pull | Number of Contacts | 8 |
| Number of Positions | 8 | Shell Size - Insert | Mini DIN |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Gender | PL | Series | HR12 |
| DELETED | Compliant | Features | Shielded |
| Product Type | Connectors | RF Family/Standard | HR212 |
Environmental
| Operating Temperature | -15°C ~ 60°C | ||
Documents & Media
Similar Parts
HR212-10RA-8SDL(73)
Hirose Connector
Standard Circular Connector REC 8P R/A GOLD BLCK CONN RECEPT 8POS R/A GOLD BLACK Conn Miniature Circular DIN F 8 POS Solder ST Thru-Hole 8 Terminal 1 Port
.jpg&w=3840&q=75)

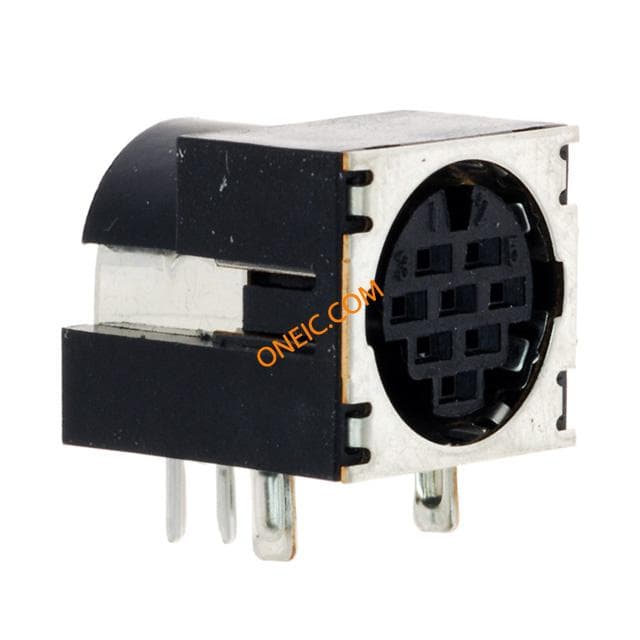

HR212-10RA-8SDL(74)
Hirose Connector
Standard Circular Connector REC 8POS R/A TIN BLK CONN RECEPT 8POS RT ANG TIN BLK Conn Miniature Circular DIN F 8 POS Solder ST Thru-Hole 8 Terminal 1 Port
.JPG&w=3840&q=75)

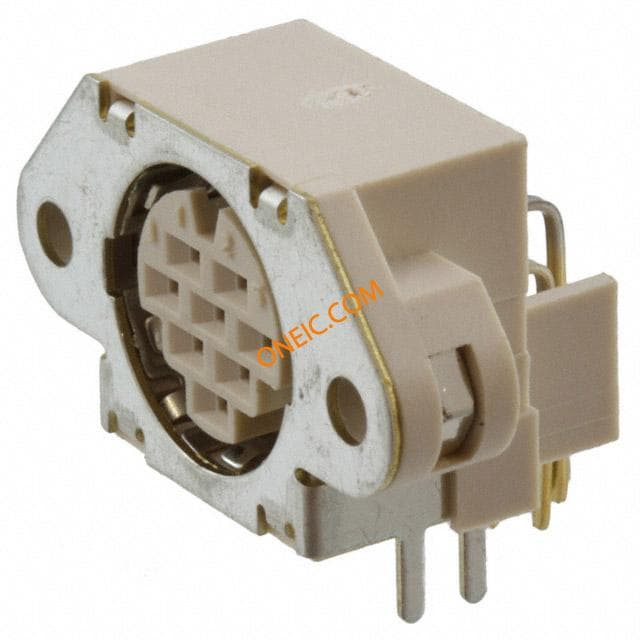

HR212-10R-8SDL(72)
