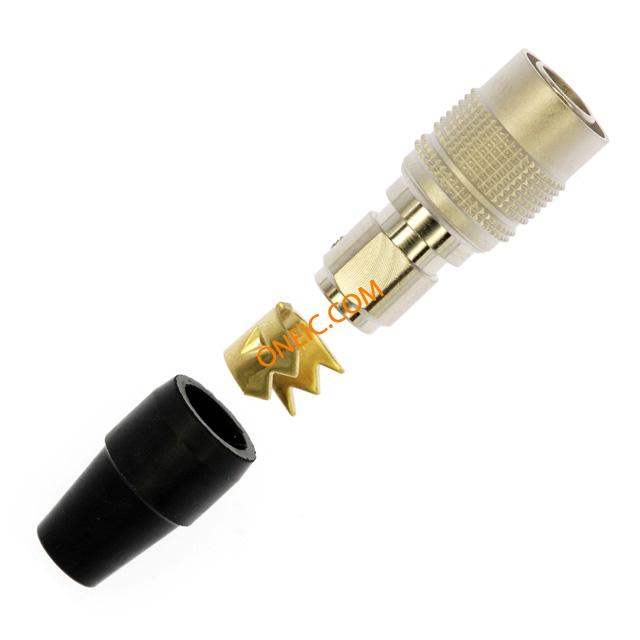

HR10A-7P-6P(74)
| Manufacturer | |
| Description | Circular Push Pull Connectors PLUG 6P MALE SOLDER GOLD CONN PLUG 6POS MALE SOLDER GOLD Hirose HR10 系列 6路 电缆安装 直向 连接器 , 公触点, 推挽式接合 |
| Category |
Business
| Standard Package | 20 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 100VAC | Connector Impedance | 微型 |
| Current Rating (Max) | 2A | ||
Mechanical
| Outline | 7 | Packaging | Bulk |
| Shell Size | 7 | Orientation | Keyed |
| Shell Style | Plug | Termination | Solder |
| Contact Type | 公插 | Mounting Type | Free Hanging (In-Line) |
| Shell Plating | Nickel | Connector Type | Plug, Male Pins |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Cable | Shell Material | Metal |
| Contact Material | 黄铜，青铜 | Housing Material | 黄铜，锌合金 |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 6 |
| Number of Positions | 6 | Shell Size - Insert | 7 |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Series | HR10 | Features | Cable Clamp |
| Main Purpose | Cable Clamp | Product Type | Connectors |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
