点击放大查看

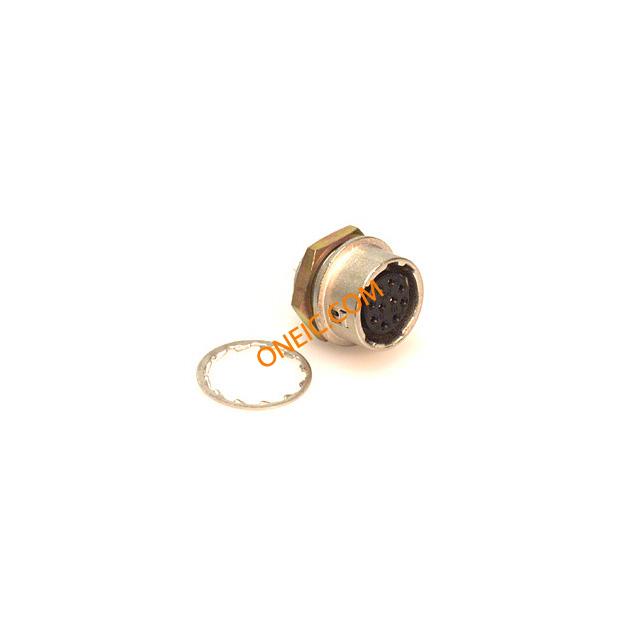

HR10A-10R-10S(71)
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P RECP SHELL SZ 10 FEMALE SIL TERM SLDR HR10A, REC. 10 POS. W/SOCKET 10 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts, Push-Pull Conn Push-Pull F 10 POS Solder Cup ST Panel Mount 10 Terminal 1 Port 10WFMALERECEPTSOLDER Device bushing 10-pin Poles=10, HR10A-10R-10S(71), Hirose |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC | Number of Poles | 10 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical
| Diameter | 14 mm | Packaging | Bulk |
| Cable Exit | No | Shell Size | 10 |
| Orientation | Keyed | Shell Style | Receptacle |
| Termination | Solder Cup | Contact Form | 10Signal |
| Mounting Type | Panel Mount, Bulkhead - Rear Side Nut | Shell Plating | Nickel |
| Connector Type | Receptacle, Female Sockets | Contact Finish | Silver |
| Fastening Type | Push-Pull | Mounting Style | Panel |
| Shell Material | Metal | Connector Usage | Push-Pull |
| Locking Feature | Push-Pull | Contact Material | Beryllium, Phosphor Bronze |
| Housing Material | Metal | Length - Overall | 16 mm |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 10 | Number of Positions | 10 |
| Shell Size - Insert | 10 | 1st Connector Gender | Female |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Type | Push-Pull | Design | Panel-mount female receptacle |
| Gender | Female | Series | HR10 |
| DELETED | Compliant | Product Type | Connectors |
| RF Family/Standard | HR10A | ||
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
