HR10A-10J-10SC(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors HR10A JACK 10POS FEM CONN HR10A JACK 10POS FEMALE Connector,circular,jack,female,sz10,10w Hirose HR10 系列 10路 电缆安装 直向 连接器 , 母触点, 推挽式接合 |
| Category |
Business
| Standard Package | 20 | Factory Pack Quantity | 1 |
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100 V ac | Connector Impedance | 微型 |
| Current Rating (Max) | 2A | Connector - Voltage Input | Micro |
Mechanical
| Outline | 10mm | Packaging | Bulk |
| Shell Size | 10mm | Orientation | Keyed |
| Shell Style | Jacks | Termination | Crimp |
| Contact Size | 1.0mm | Contact Type | Crimp |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Jack for Female Contacts | Contact Finish | Silver |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Shell Material | Metal | Connector Usage | Push-Pull |
| Contact Material | Beryllium, Phosphor Bronze | Housing Material | Brass, Zinc Alloy |
| Termination Rows | 压接 | Termination Style | Crimp |
| 1st Contact Gender | Female | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | 10 |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Note | Contacts Not Provided | Gender | Female |
| Series | HR10A | Product Type | Connectors |
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Similar Parts

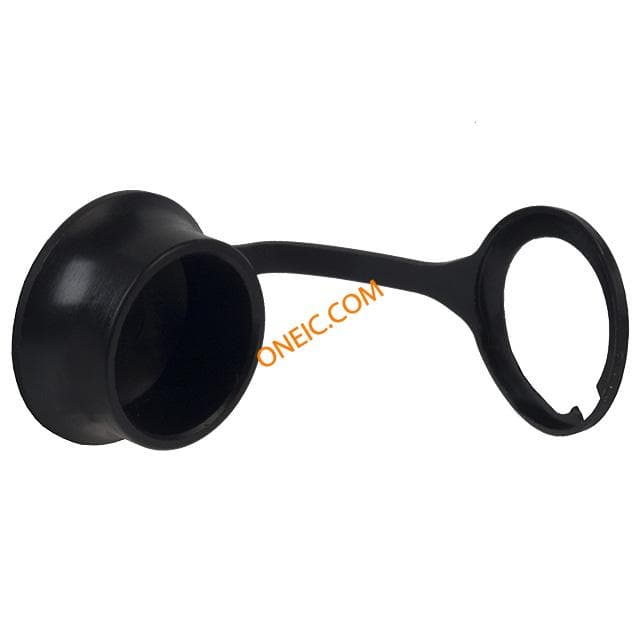

HR10-10R-C
