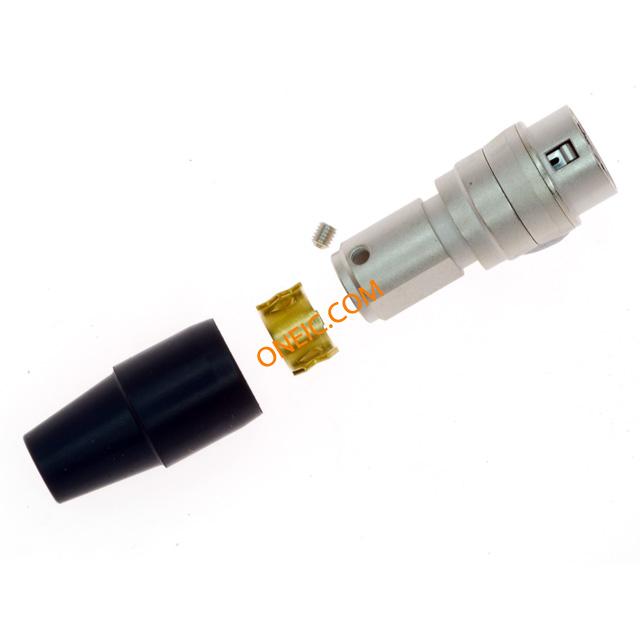

HR10A-10J-10S(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 10P JACK SHELL SZ 10 FEMALE SIL TERM SLDR HR10A, JACK, 10 POS W/SOCKET Connector,circular,jack,female,sz10,10w Conn Push-Pull F 10 POS Solder Cup ST Cable Mount 10 Terminal 1 Port Hirose HR10 系列 10路 电缆安装 直向 连接器 , 母触点, 推挽式接合 |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Rad Hardened | No |
Electrical
| Voltage Rating | 100VAC | Connector Impedance | 微型 |
| Current Rating (Max) | 2A | Connector - Voltage Input | Micro |
Mechanical
| Outline | 10mm | Diameter | 14 mm |
| Packaging | Bulk | Cable Exit | No |
| Shell Size | 10mm | Orientation | Keyed |
| Shell Style | Jacks | Termination | Solder |
| Contact Form | 10Signal | Contact Type | 母座 |
| Mounting Type | Free Hanging (In-Line) | Shell Plating | Nickel |
| Connector Type | Jack, Female Sockets | Contact Finish | Silver |
| Fastening Type | Push-Pull | Mounting Style | Cable |
| Connector Usage | Push-Pull | Contact Material | Beryllium, Phosphor Bronze |
| Housing Material | Brass, Zinc Alloy | Length - Overall | 43 mm |
| Termination Rows | 焊接 | Termination Style | Solder |
| 1st Contact Gender | Female | Number of Contacts | 10 |
| Number of Positions | 10 | Shell Size - Insert | 10 |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Type | Push-Pull | Gender | Female |
| Series | HR10A | DELETED | Compliant |
| Product Type | Connectors | RF Family/Standard | HR10A |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
