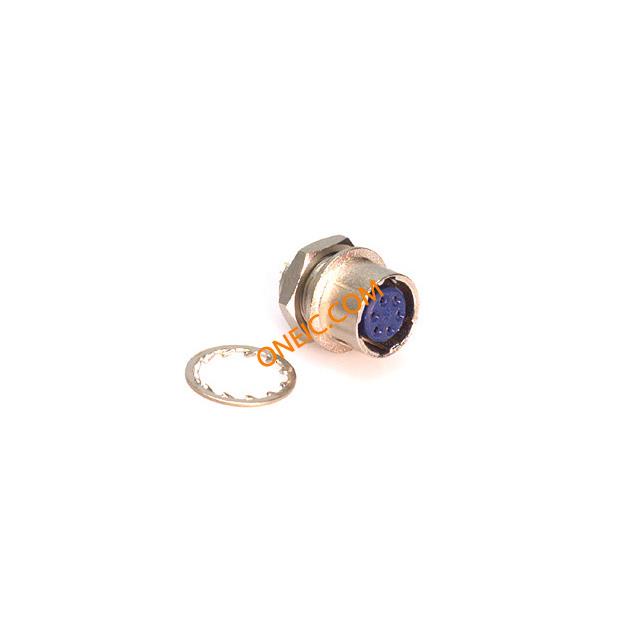

HR10-7R-6S(73)
| Manufacturer | |
| Description | Circular Push Pull Connectors 6P RECP SHELL SZ 7 FEMALE AU TERM SOLDR RECEPTACLE W/SOCKET INSERT-6 CON 6 Pole Female Straight Panel Mount Industrial & Automation Circular Connector with Female Contacts, Push-Pull Device bushing 6-pin Poles=6, HR10-7R-6S(73), Hirose Hirose HR10 系列 6路 面板安装 直向 连接器 插座 , 母触点, 推挽式接合 |
| Category |
Business
| Product Category | Circular Push Pull Connectors | Standard Package | 20 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100VAC | Number of Poles | 6 |
| Current Rating (Max) | 2A | Current Rating - Appliance Inlet | 2 |
Mechanical

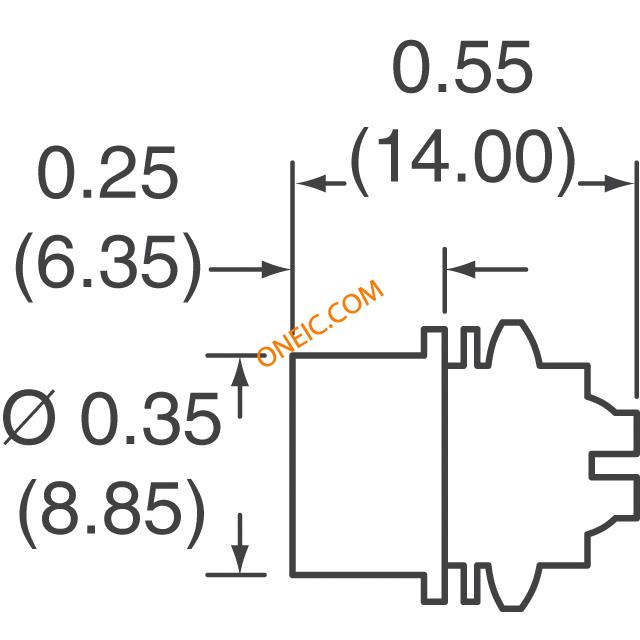

| Outline | 7mm | Packaging | Bulk |
| Shell Size | 7 | Orientation | Keyed |
| Shell Style | Receptacle | Termination | Solder Cup |
| Contact Type | 母座 | Mounting Type | Panel Mount, Bulkhead - Rear Side Nut |
| Shell Plating | Nickel | Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold | Fastening Type | Push-Pull |
| Mounting Style | Panel | Connector Usage | Push-Pull |
| Locking Feature | Push-Pull | Contact Material | Beryllium, Phosphor Bronze |
| Housing Material | Metal | Termination Rows | 焊接 |
| Termination Style | Solder | 1st Contact Gender | Female |
| Number of Contacts | 6 | Number of Positions | 6 |
| Shell Size - Insert | 7 | 1st Connector Gender | Female |
| Shell Material, Finish | Brass and Zinc, Nickel Plated | ||
Product Info
| Design | Panel-mount female receptacle | Gender | Female |
| Series | HR10 | Product Type | Connectors |
| Output Configuration | Panel Mount, Bulkhead - Rear Side Nut | ||
Environmental
| Operating Temperature | -25°C ~ 85°C | ||
