点击放大查看
FX8-120P-SV(91)
| Manufacturer | |
| Description | 基板間およびメザニンコネクタ HDR 120 POS 0.6mm Solder ST SMD CONN HEADER 120POS .6MM GOLD SMD Hirose FX8 Series 0.6mm Pitch 120 Way 2 Row Straight PCB Header, Solder Termination, 0.4A Board to Board & Mezzanine Connectors HDR 120 POS 0.6mm Solder ST SMD Hirose FunctionMAX FX8 系列 0.6mm节距 120路 (2排) 直 PCB 针座, 焊接端接, 400mA , 表面安装 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Board to Board & Mezzanine Connectors | Standard Package | 12 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 100 V ac | Current Rating (Max) | 0.4A |
Mechanical
| Pitch | 0.023" (0.60mm) | Packaging | Tube |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Surface Mount | Connector Type | Header, Outer Shroud Contacts |
| Contact Finish | Gold | Number of Rows | 2 |
| Contact Material | Phosphor Bronze | Housing Material | Polyphenylene Sulfide (PPS) |
| Termination Rows | 焊接 | Termination Style | SMD |
| Height Above Board | 0.112" (2.85mm) | Number of Contacts | 120 |
| Number of Positions | 120 | Mated Stacking Heights | 3mm |
Product Info
| Type | Board to Board | Series | FX8 |
| Coverage | 覆盖 | Features | Board Guide |
| Product Type | Headers | ||
Documents & Media
PDF Document
PDF Document
Similar Parts

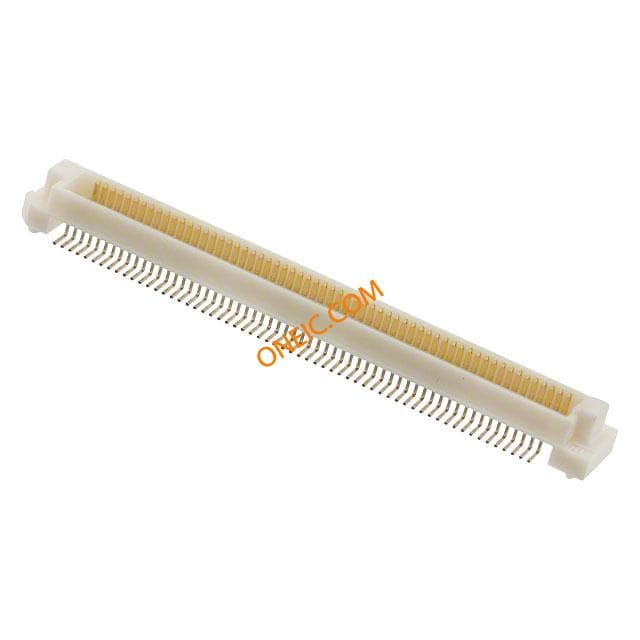

FX8-120S-SV
