FX10A-120S/12-SV(71)
| Manufacturer | |
| Description | Board to Board & Mezzanine Connectors REC 120P W/POST SMT CONN RECEPT 120POS W/POST SMD Hirose 0.5mm 120 Way 2 Row Straight PCB Socket Surface Mount Board to Board Hirose FX10 系列 2行 120路 直 0.5mm节距 表面贴装 印刷电路板插座, 板对板 |
| Category |
Business
| Standard Package | 60 | Factory Pack Quantity | 1 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 50 V | Current Rating (Max) | 0.3 A |
Mechanical
| Pitch | 0.5 mm | Packaging | Tray |
| Orientation | 直 | Termination | Solder |
| Mounting Type | Straight | Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Stacking Method | 4 mm |
| Contact Material | Phosphor Bronze | Housing Material | Liquid Crystal Polymer (LCP) |
| Termination Rows | 焊接 | Termination Style | SMD |
| Height Above Board | 0.126" (3.20mm) | Number of Contacts | 120 |
| Number of Positions | 120 | Height - Seated (Max) | 0.126" (3.20mm) |
| Mated Stacking Heights | 4mm, 5mm | Contact Finish Thickness | 3.9µin (0.10µm) |
Product Info
| Type | Board to Board | Series | FX10 |
| Features | Board Guide, Ground Plate, Solder Retention | Main Purpose | Board Guide, Ground Plate, Solder Retention |
| Product Type | Receptacles | Output Configuration | Surface Mount |
Environmental
| Mating Cycles | 4mm, 5mm | ||
Documents & Media
Similar Parts
FX10B-120P/12-SV1(71)
Hirose Connector
基板間およびメザニンコネクタ HDR 120POS W/O POST SMT CONN HEADER 120POS W/O POST SMD Board to Board & Mezzanine Connectors HDR 120POS W/O POST SMT Conn Board to Board HDR 120 POS 0.5mm Solder ST SMD Tray
.jpg&w=3840&q=75)

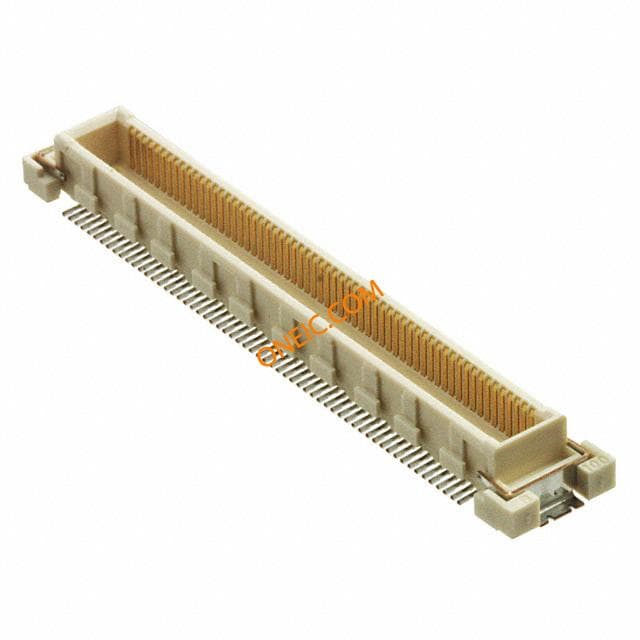

FX10A-120P-SV(71)
