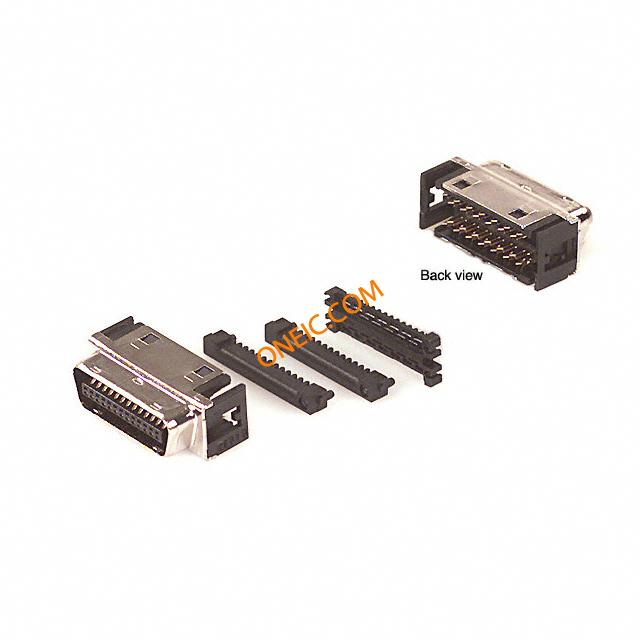

DX30AM-26P
| Manufacturer | |
| Description | I/O コネクタ PL 26 POS 1.27mm IDT ST Cable Mount CONN PLUG DISCRETE IDC 26 POS I/O Connectors PL 26 POS 1.27mm IDT ST Cable Mount Conn SCSI PL 26 POS 1.27mm IDT RA Cable Mount 26 Terminal 1 Port |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | I/O Connectors | Standard Package | 90 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Current Rating (Max) | 0.5 A | Voltage - Supply (Min) | 125VAC |
Mechanical

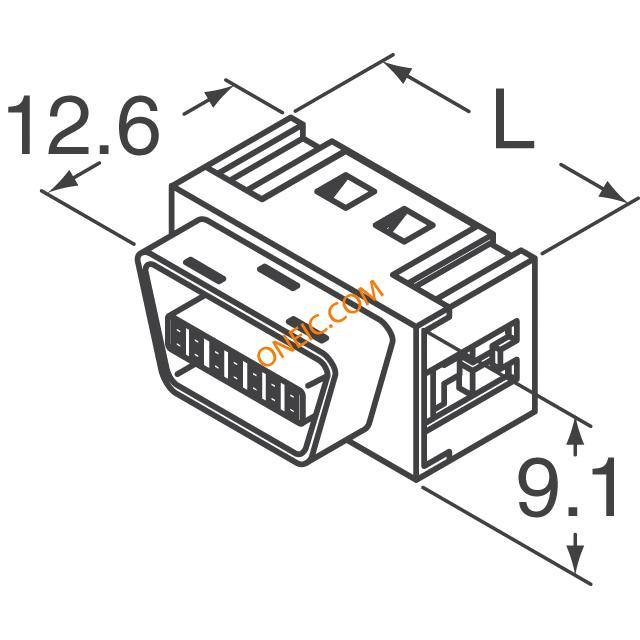

| Depth | 9.1 mm | Pitch | 1.27 mm |
| Height | 12.6 mm | Termination | IDC |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Plug |
| Contact Finish | Gold | Mounting Style | Cable |
| Number of Rows | 2 | Connector Style | Center Strip Contacts |
| Contact Material | Copper Alloy | Length - Overall | 24.71 mm |
| Number of Contacts | 26 POS | Number of Positions | 26 |
Product Info
| Type | Miniature High Density (HD) | Gender | PL |
| Series | DX | DELETED | Compliant |
| Number of Ports | 1 Port | ||
Environmental
| Operating Temperature | -55C to 85C | Operating Temperature - Junction | 85C |
Documents & Media
PDF Document
PDF Document
Similar Parts
DX20M-26S(50)
Hirose Connector
I/O Connectors REC VERT 26 POS PCB CONN RECEPT VERT 26 POS PCB
$39.5760
Details

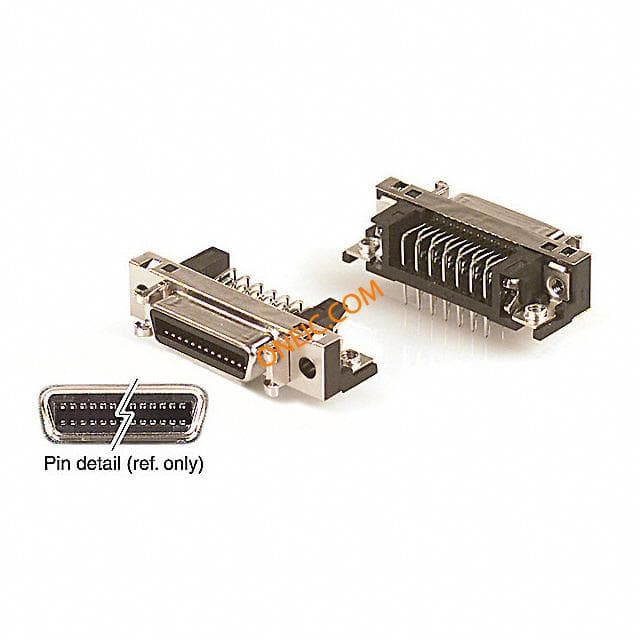

DX10G1M-26S(50)
Hirose Connector
I/O コネクタ REC RT ANG 26POS PCB CONN RECEPT RT ANG 26POS PCB I/O Connectors REC RT ANG 26POS PCB
$18.2682
Details

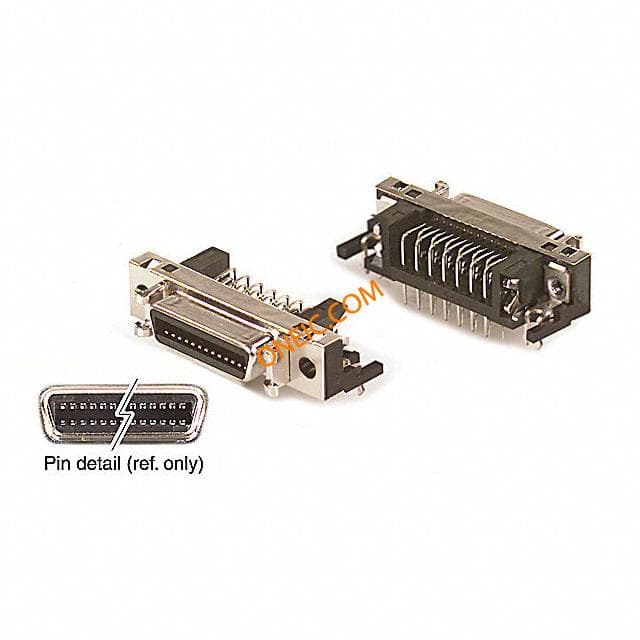

DX10G1M-26SE(50)
Hirose Connector
I/O Connectors REC RT ANG 26POS PCB CONN RECEPT RT ANG 26POS PCB Conn SCSI RCP 26 POS 2.54mm Solder RA Thru-Hole 26 Terminal 1 Port
$14.7560
Details

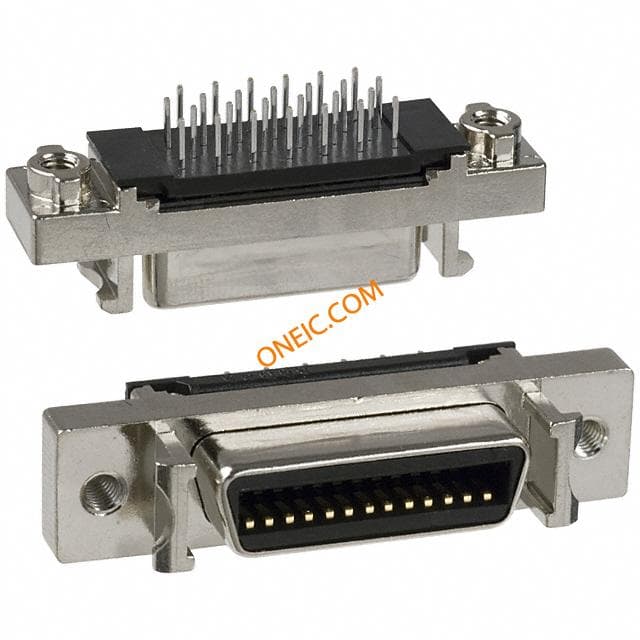

DX20M-26S
