DH40-27S
| Manufacturer | |
| Description | I/O コネクタ 27P PLUG UNIT SOLDER TYPE CONN PLUG SLDR 1MM 27POS Plug 27 way solder type,DH series I/O Connectors 27P PLUG UNIT SOLDER TYPE |
| Category |
Business
| Standard Package | 50 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 125 V ac | Number of Poles | 27 |
| Current Rating (Max) | 0.5A | ||
Mechanical
| Depth | 9.55mm | Pitch | 1mm |
| Width | 15.7mm | Length | 19.8mm |
| Packaging | Tray | Termination | Solder |
| Mounting Type | Surface Mount | Connector Type | Plug |
| Contact Finish | Gold | Mounting Style | SMD/SMT |
| Number of Rows | 2 | Connector Style | Center Strip Contacts |
| Contact Material | Copper Alloy | Housing Material | PA |
| Size / Dimension | 19.8 x 15.7 x 9.55mm | Termination Style | Solder |
| Number of Contacts | 27 | Number of Positions | 27 |
Product Info
| Type | SCSI | Gender | Male |
| Series | DH | Features | Shielded |
Environmental
| Operating Temperature | +85°C | ||
Documents & Media
Similar Parts
.JPG&w=3840&q=75)

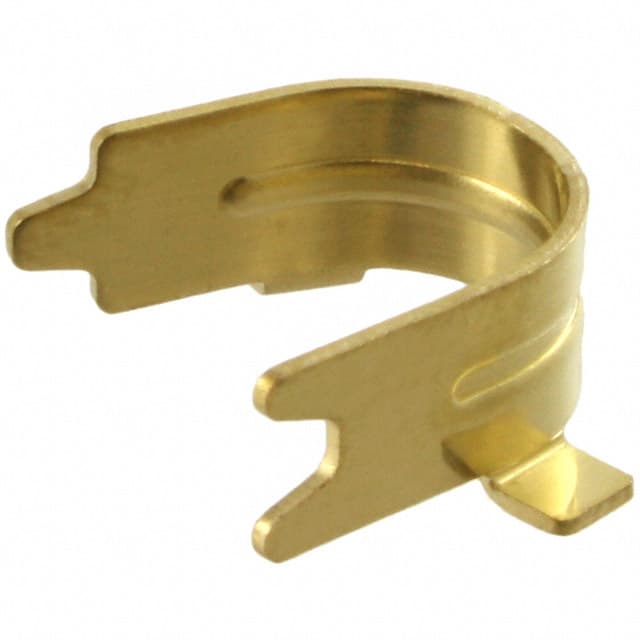

DH-27-CMB(6.9)
Hirose Connector
I/O Connectors CLAMP METAL CABLE CLAMP FOR 6.9MM CABLE Hirose Brass Cable Clamp, 6.9mm Bundle Diameter, 13.5 x 5.5 x 10.6mm DHcableclamp27waycabledia6.9mm Hirose 黄铜 电缆夹, 6.9mm 捆束直径

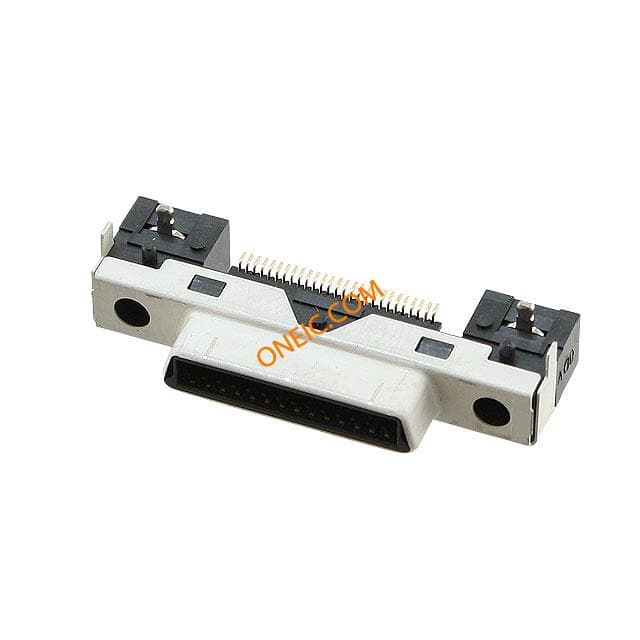

DH60-27P
Hirose Connector
I/O コネクタ 27P R/A RCPT SCREW LOCK CONN RCPT R/A SMT 1MM 27POS Hirose DH Series 24.2mm 27 Way 2 Row Right Angle PCB Socket Surface Mount Wire to Board I/O Connectors 27P R/A RCPT SCREW LOCK DHreceptacle27wayrightangleSMT Hirose DH 系列 2行 27路 直角 24.2mm节距 表面贴装 印刷电路板插座, 线对板

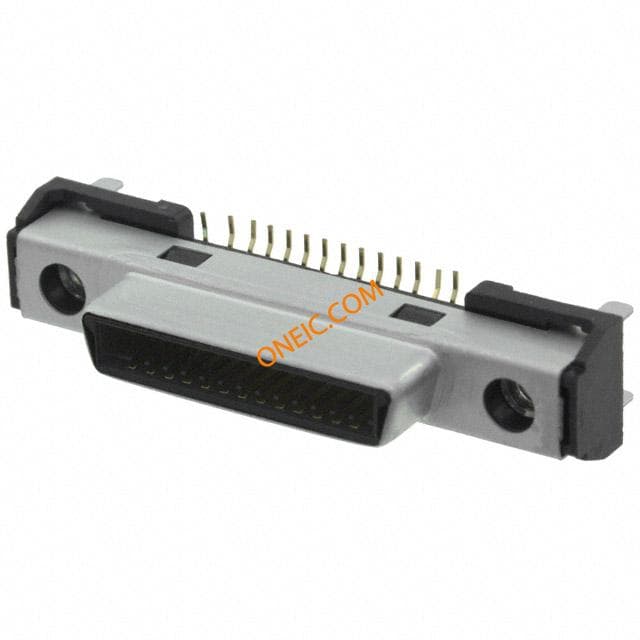

DH80-27P
Hirose Connector
I/O コネクタ 27P VERT RECPT SCREW LOCK CONN RCPT SMT 1MM 27POS Hirose DH Series 1mm 27 Way 2 Row Straight PCB Socket Surface Mount Board to Wire I/O Connectors 27P VERT RECPT SCREW LOCK

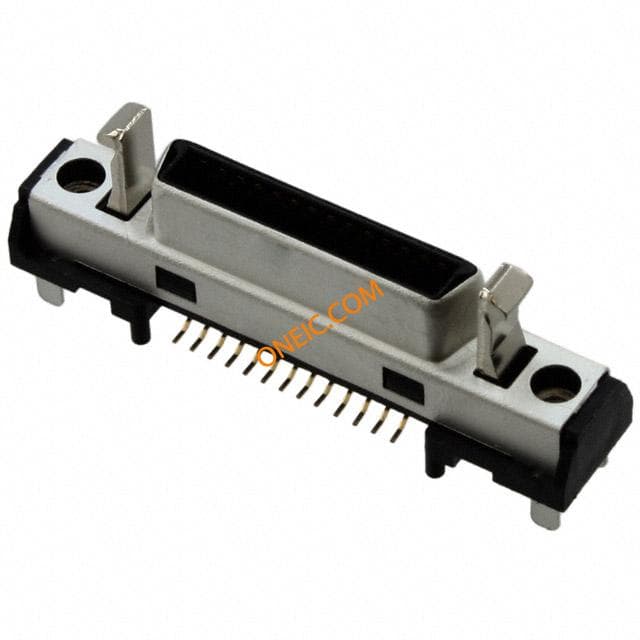

DH80A-27P
Hirose Connector
I/O Connectors 27P STR HI SPEED REC CONN RCPT 27POS STRAIGHT SMD Hirose DH Series 1mm 27 Way 2 Row Straight PCB Socket Surface Mount Board to Wire Hirose DH 系列 2行 27路 直 1mm节距 表面贴装 印刷电路板插座, 板对线

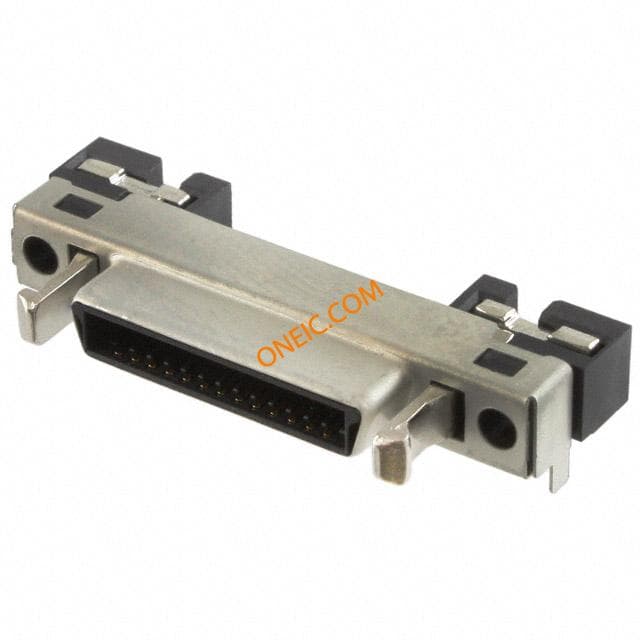

DH60A-27P
Hirose Connector
I/O コネクタ 27P R/A RCPT ONE TOUCH LOCK CONN RCPT R/A SMT 1MM 27POS Hirose DH Series 24.2mm 27 Way 2 Row Right Angle PCB Socket Surface Mount Wire to Board I/O Connectors 27P R/A RCPT ONE TOUCH LOCK DHreceptacle27wayrightangleSMT Hirose DH 系列 2行 27路 直角 24.2mm节距 表面贴装 印刷电路板插座, 线对板
.JPG&w=3840&q=75)

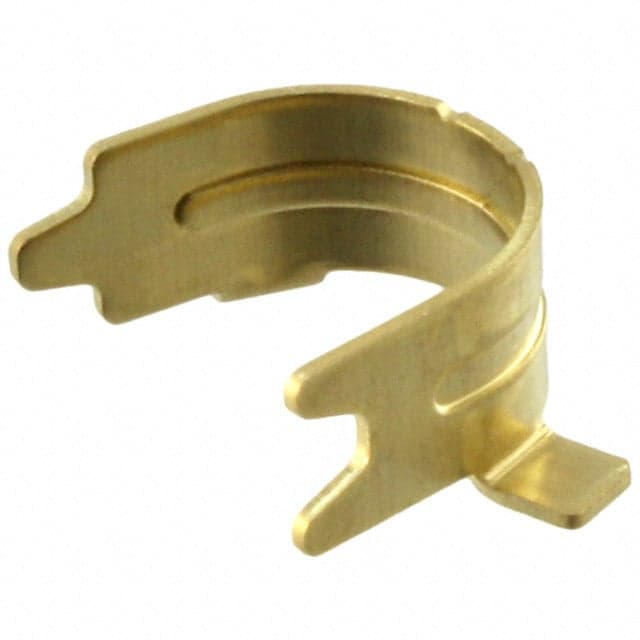

DH-27-CMB(7.3)
Hirose Connector
I/O Connectors CLAMP METAL CABLE CLAMP FOR 7.3MM CABLE Hirose Brass Cable Clamp, 7.3mm Bundle Diameter, 14.4 x 5.5 x 9.5mm Hirose 黄铜 电缆夹, 7.3mm 捆束直径
DH-27-CT2B
Hirose Connector
I/O Connectors ONE TOUCH LOCK TYPE COVER PLASTIC BUTTON COVER PLASTIC BUTTON FOR 27POS Cover case for DH 60A, 27 way receptacle Hirose DH 系列 1mm 节距 27 路 直 电缆安装 PCB 壳体

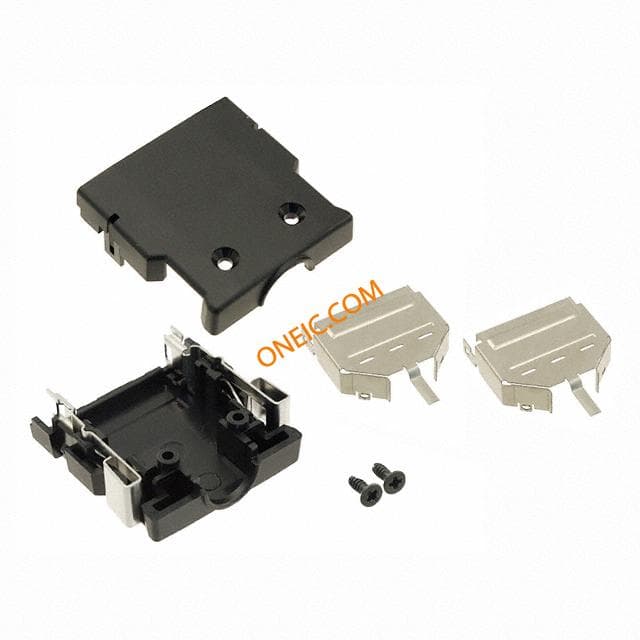

DH-27-CT1B
