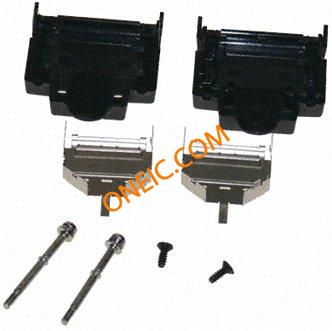

DH-37-CV1B
| Manufacturer | |
| Description | I/O コネクタ SCREW LOCK TYPE CVR DRIVER SCREWING TYPE COVER SCREW LOCK FOR 37POS Cover case for DH 60, 37 way receptacle I/O Connectors SCREW LOCK TYPE CVR DRIVER SCREWING TYPE CovercaseforDH60,37wayreceptacle Hirose DH 系列 1mm 节距 37 路 直 电缆安装 PCB 壳体 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product | Accessories | Standard Package | 15 |
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Mechanical
| Color | Black | Depth | 13.6mm |
| Pitch | 1mm | Width | 39mm |
| Length | 36mm | Material | Metal Shell, Steel/Plastic Cover |
| Packaging | Tray | Shielding | Shielded |
| Cable Exit | 180° | Cable Type | Round |
| Orientation | 直 | Cable Opening | 180° |
| Mounting Type | Straight | Housing Material | PC |
| Number of Contacts | 37 | Number of Positions | 37 |
| Supplier Device Package | Assembly Hardware | ||
Product Info
| Series | DH | Features | Mating Screw M2.3 |
| Hardware | Assembly Hardware | Main Purpose | Mating Screw M2.3 |
| Accessory Type | Two Piece Backshell and Cover | Number of Ports | 1 |
| For Use With/Related Products | Small Interface Connector | ||
Environmental
| Operating Temperature | - 25 C to + 85 C | ||
