DF5A-4S-5C
| Manufacturer | |
| Description | Headers & Wire Housings Housing PL 4 POS 5mm ST Bag CONN RECEPT HOUSING 4POS 5MM Conn Housing PL 4 POS 5mm Crimp ST Cable Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 8 A |
| Voltage - Supply (Min) | 500VAC | ||
Mechanical
| Color | White | Depth | 18.5 mm |
| Pitch | 0.197" (5.00mm) | Height | 10.15 mm |
| Packaging | Bulk | Wire Gauge | 18-22 AWG |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | Phosphor Bronze | Housing Material | Polyamide |
| Length - Overall | 20.5 mm | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 4 |
| Contact Termination | Crimp | Number of Positions | 4 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | DF5 |
| DELETED | Compliant | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
Similar Parts
DF5A-4P-5DSA(05)
Hirose Connector
Headers & Wire Housings HDR 4POS 5MM STRGHT TIN CONN HEADER 4POS 5MM STRGHT TIN Conn Wire to Board HDR 4 POS 5mm Solder ST Thru-Hole Bag

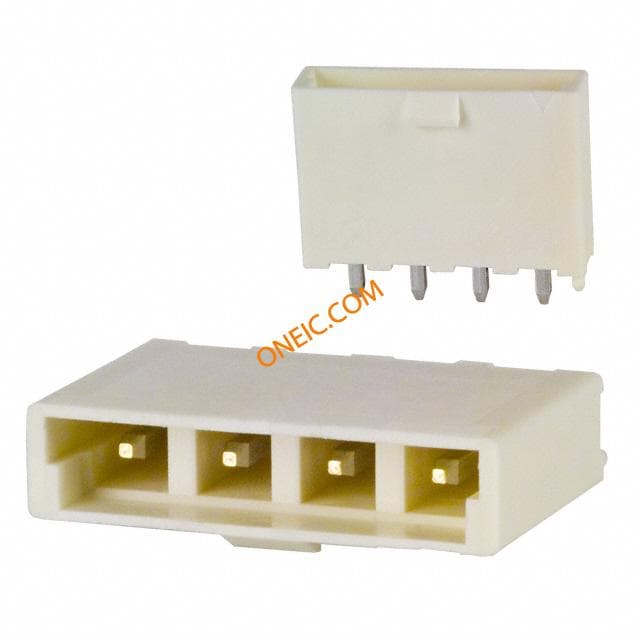

DF5A-4P-5DSA
