DF5A-10DS-5C
| Manufacturer | |
| Description | Headers & Wire Housings Housing PL 10 POS 5mm ST Bag CONN RECEPT HOUSE 10POS 5MM DUAL Conn Housing PL 10 POS 5mm Crimp ST Cable Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 500 VAC | Current Rating (Max) | 7 A |
| Voltage - Supply (Min) | 500VAC | ||
Mechanical
| Color | White | Depth | 18.5 mm |
| Pitch | 0.197" (5.00mm) | Height | 15.5 mm |
| Packaging | Bulk | Wire Gauge | 18-22 AWG |
| Row Spacing | 0.197" (5.00mm) | Contact Type | Female Socket |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Number of Rows | 2 | Housing Material | Polyamide |
| Length - Overall | 25.5 mm | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 10 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | DF5 |
| DELETED | Compliant | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
Similar Parts
DF5A-10DP-5DSA(05)
Hirose Connector
Headers & Wire Housings HDR 10P 5MM DUAL TIN CONN HEADER 10POS 5MM DUAL TIN

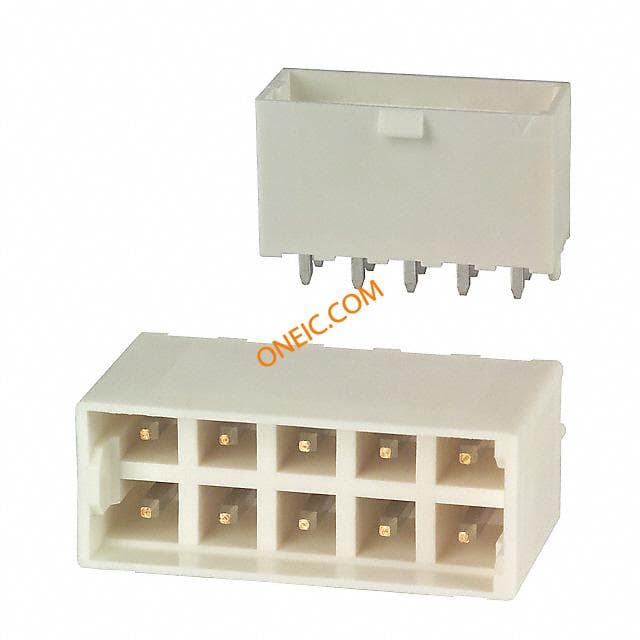

DF5A-10DP-5DSA
