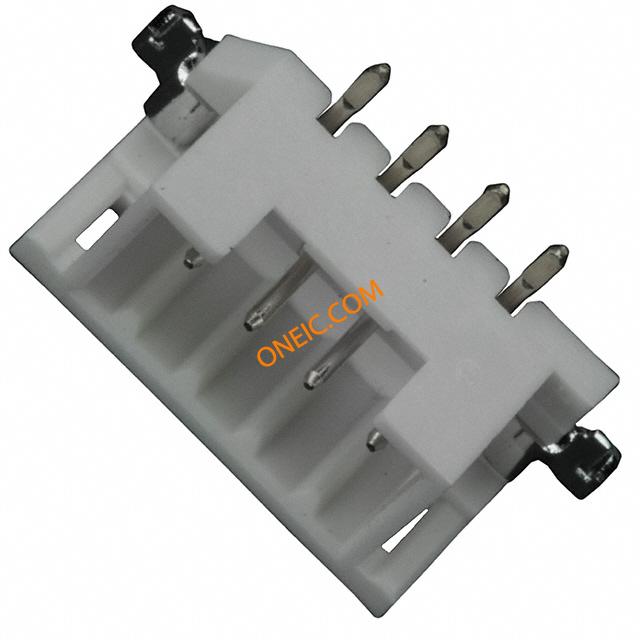

DF3DZ-4P-2V(51)
| Manufacturer | |
| Description | Headers & Wire Housings 2MM V PCB HEADER 4POS SMT GLD CONN HEADER 4POS 2MM VERT GOLD Header 2mm pitch vertical SMT gold 4 way Conn Shrouded Header HDR 4 POS 2mm Solder ST SMD Reel Hirose DF3 系列 2mm节距 4路 (1排) 直 PCB 针座, 焊接端接, 3A |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | HR1992CT | Product Category | Headers & Wire Housings |
| Standard Package | 1,000 | Factory Pack Quantity | 1000 |
Compliance
| RoHS | Lead free / RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V ac | Contact Resistance | 30 mohm |
| Current Rating (Max) | 3A | Voltage - Supply (Min) | 30VAC |
Mechanical
| Color | Beige | Depth | 5.6 mm |
| Pitch | 0.079" (2.00mm) | Height | 5.9 mm |
| Packaging | Tube | Orientation | 直 |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Surface Mount |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Mounting Style | Surface Mount | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyamide |
| Length - Overall | 15.5 mm | Termination Rows | 焊接 |
| Termination Style | SMD | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 4 | Number of Positions | 4 |
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | DF3 | DELETED | Compliant |
| Coverage | 覆盖 | Features | Solder Retention |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -30C to 85C | ||
Documents & Media
PDF Document
PDF Document
