DF33-2S-3.3C
| Manufacturer | |
| Description | 基板間およびメザニンコネクタ SOC HSG 2POS 3.3MM CONN SOCKET HSG 2POS 3.3MM Crimp socket Housing 3.3mm pitch 2 way Board to Board & Mezzanine Connectors SOC HSG 2POS 3.3MM Conn Power RCP 2 POS 3.3mm Crimp ST Cable Mount 2 Terminal 1 Port Hirose DF33 系列 3.3mm 节距 2 路 直 母 电缆安装 PCB 连接器外壳 |
| Category |
Business
| Standard Package | 100 | Factory Pack Quantity | 100 |
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 500 V | Current Rating (Max) | 5 A |
| Insulation Resistance | 1000 MOhms | Voltage - Supply (Min) | 500VDC/500VAC |
Mechanical
| Color | Natural | Depth | 14mm |
| Pitch | 0.130" (3.30mm) | Width | 7.4mm |
| Height | 7.4 mm | Length | 7.8mm |
| Diameter | Not Required mm | Packaging | Bulk |
| Termination | Crimp | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin | Fastening Type | Latch Lock |
| Mounting Style | Cable | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | PA |
| Length - Overall | 7.8 mm | Termination Style | Crimp |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | ||
Product Info
| Note | Contacts Not Provided | Type | Power |
| Gender | Female | Series | DF33 |
| DELETED | Compliant | Product Type | Receptacles |
| Number of Ports | 1 Port | For Use With/Related Products | DF33 Series Connector |
Environmental
| Operating Temperature | - 35 C to + 85 C | Operating Temperature - Junction | 85C |
Documents & Media
Similar Parts

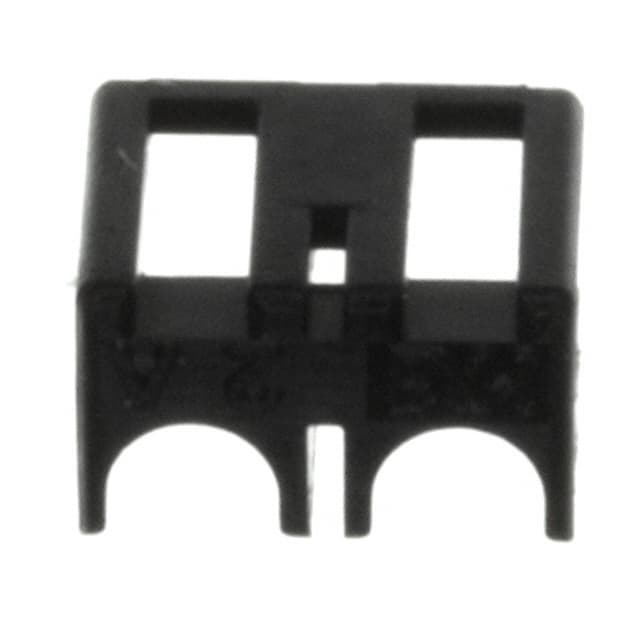

DF33-2RS-3.3
Hirose Connector
基板間およびメザニンコネクタ RETAINER SROW 2POS CONN RETAINER SINGLE ROW 2POS Retainer 3.3mm pitch 2 way Board to Board & Mezzanine Connectors RETAINER SROW 2POS Hirose 2路 固定架 , 使用于DF33 系列连接器
DF33A-2022SCF
Hirose Connector
Board to Board & Mezzanine Connectors CRIMP TERM 20-22AWG FEM CONN CRIMP TERM FEMALE 20-22AWG
DF33A-2022SC
Hirose Connector
Board to Board & Mezzanine Connectors Connectors CONN CRIMP TERM FEMALE 20-22AWG Crimp Contact Tin plated 20-22 AWG loose DF33A-2022SC Hirose DF33 and DF33C 系列 母 压接接线端子, 压接, 镀锡触点
.JPG&w=3840&q=75)

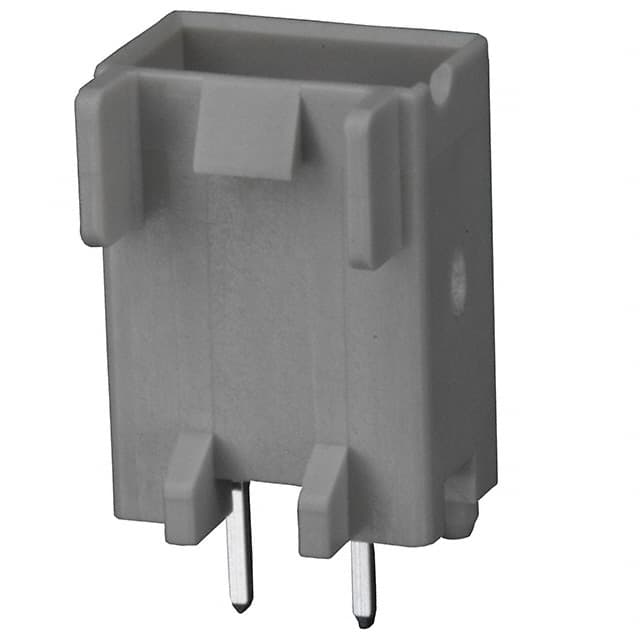

DF33-2P-3.3DSA(24)
