DF22L-5S-7.92C(28)
| Manufacturer | |
| Description | Power to the Board Housing PL 5 POS 7.92mm ST Bag CONN SOCKET 5POS 7.92MM RED PCB Connector bd-wire 7.92mm pitch Hirose EnerBee DF22 系列 7.92mm 节距 5 路 直 公 电缆安装 压接连接器外壳 |
| Category |
Business
| Product Category | Power to the Board | Standard Package | 100 |
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 1 KVDC/AC | Current Rating (Max) | 18 A |
Mechanical
| Color | Red | Depth | 20mm |
| Pitch | 0.312" (7.92mm) | Width | 11.55mm |
| Length | 39.26mm | Packaging | Bulk |
| Orientation | 直 | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Through Hole |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | PA | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 5 |
| Contact Termination | Crimp | Number of Positions | 5 |
Product Info
| Note | Contacts Not Provided | Gender | Male |
| Series | DF22 | Features | Polarizing Key |
| Product Type | Receptacles | For Use With/Related Products | High Current Connector |
Environmental
| Operating Temperature | - 35 C to + 85 C | ||
Documents & Media
Similar Parts

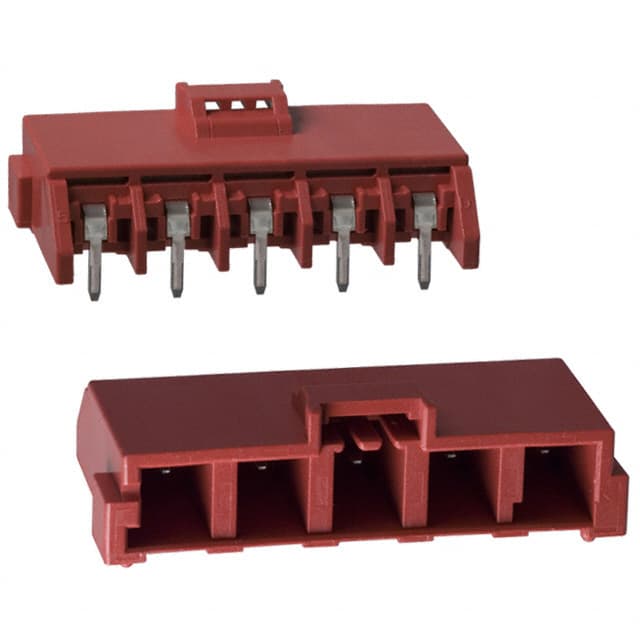

DF22L-5P-7.92DS
Hirose Connector
Power to the Board Obsolete CONN HEADER 5POS 7.92MM R/A TIN

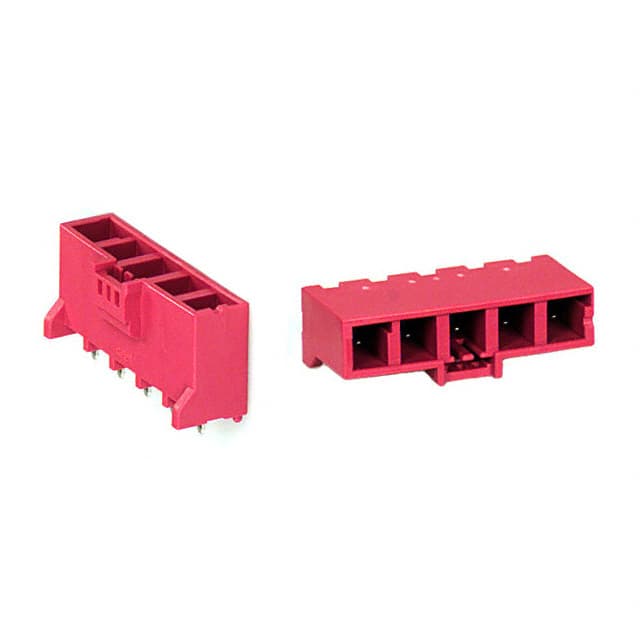

DF22L-5P-7.92DSA(05)
