DF22L-4S-7.92C(28)

Manufacturer	Hirose Electric Co., Ltd.
Description	Power to the Board Housing PL 4 POS 7.92mm ST Bag CONN SOCKET 4POS 7.92MM RED Hirose EnerBee DF22 系列 7.92mm 节距 4 路直公面板安装压接连接器外壳
Category	Connector SolutionsPower Entry ConnectorsPower Entry Connectors

对参数有疑问？问 AI 助手

Business

Product Category

Power to the Board

Standard Package

100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating

1 kV

Mechanical

Color	Red	Depth	20mm
Pitch	0.312" (7.92mm)	Width	11.55mm
Length	31.34mm	Packaging	Bulk
Orientation	直	Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Fastening Type	Latch Lock	Mounting Style	Panel
Number of Rows	1	Housing Material	Polyamide (PA)
Termination Style	Crimp	Number of Contacts	4
Contact Termination	Crimp	Number of Positions	4

Product Info

Note	Contacts Not Provided	Series	DF22
Features	Polarizing Key	Product Type	Receptacle Housings
For Use With/Related Products	高电流连接器

Documents & Media

PDF Document

DF22 Series

PDF Document

e68010003.pdf

Similar Parts

DF22A-1416SCF

Hirose Connector

Power to the Board Contact SKT 1 POS Cr ST Cable Mount T CONN TERMINAL CRIMP UL1015 TIN DF22A-1416SCF Hirose DF22 系列母压接接线端子, 压接, 镀锡触点

$2.9750

Details

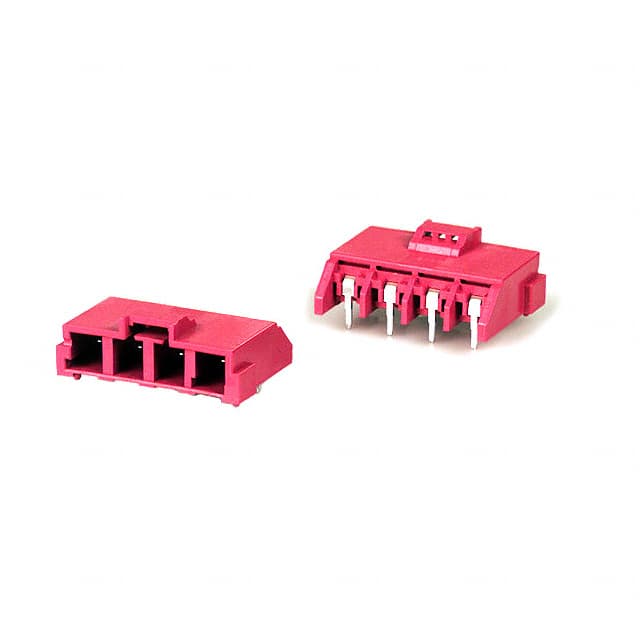

DF22L-4P-7.92DS(05)

Hirose Connector

Power to the Board HDR 4 POS 7.92mm Sol RA Thru-Hole Bag CONN HEADER 4POS 7.92MM R/A TIN Hirose EnerBee DF22 系列 7.92mm节距 4路 (1排) 直角 PCB 针座, 焊接端接 , 通孔

$3.7128

Details

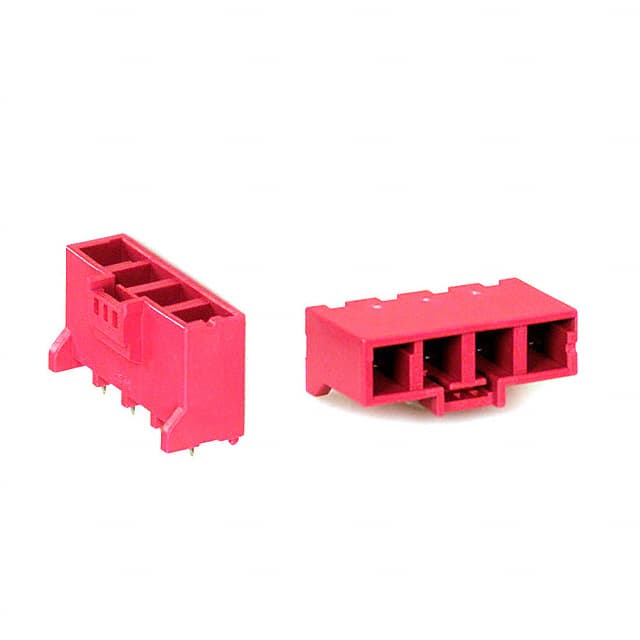

DF22L-4P-7.92DSA(05)
