DF22-5S-7.92C(28)

Manufacturer	Hirose Electric Co., Ltd.
Description	Power to the Board Housing SKT 5 POS 7.92mm ST Bag CONN SOCKET 5POS 7.92MM WHITE PCB Connector bd-wire 7.92mm pitch Hirose EnerBee DF22 系列 7.92mm 节距 5 路直母电缆安装压接连接器外壳
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category

Power to the Board

Standard Package

100

Compliance

RoHS

Not Applicable

Electrical

Voltage Rating

1 KVDC/AC

Mechanical

Color	White	Depth	20mm
Pitch	0.312" (7.92mm)	Width	11.55mm
Length	39.26mm	Packaging	Bulk
Orientation	直	Contact Type	Female Socket
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Fastening Type	Latch Lock	Mounting Style	Panel
Number of Rows	1	Housing Material	PA
Termination Style	Crimp	Number of Contacts	5
Contact Termination	Crimp	Number of Positions	5

Product Info

Note	Contacts Not Provided	Gender	Female
Series	DF22	Features	Polarizing Key
Product Type	Receptacle Housings	For Use With/Related Products	High Current Connector

Documents & Media

PDF Document

DF22 Series

PDF Document

e68010003.pdf

Similar Parts

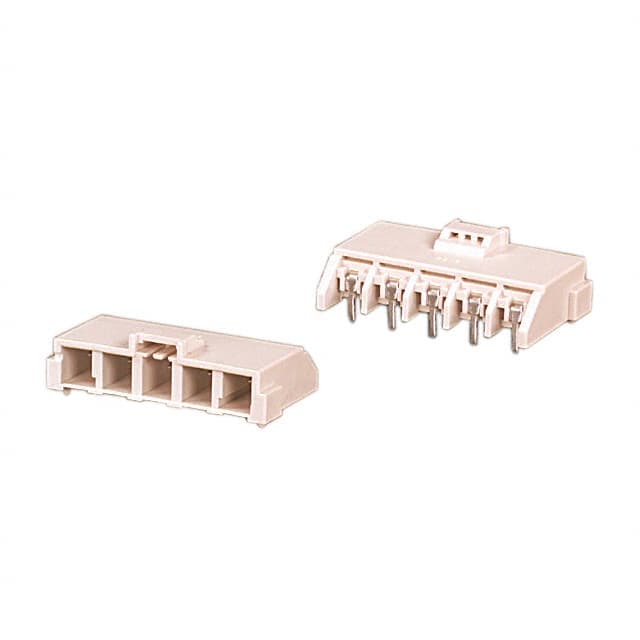

DF22-5P-7.92DS(05)

Hirose Connector

電源対基板 HDR 5 POS 7.92mm Sol RA Thru-Hole Bag CONN HEADER 5POS 7.92MM R/A TIN Hirose DF22 Series 7.92mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination Power to the Board HDR 5 POS 7.92mm Sol RA Thru-Hole Bag Hirose EnerBee DF22 系列 7.92mm节距 5路 (1排) 直角 PCB 针座, 焊接端接 , 通孔

$4.3316

Details

DF22A-1416SCF

Hirose Connector

Power to the Board Contact SKT 1 POS Cr ST Cable Mount T CONN TERMINAL CRIMP UL1015 TIN DF22A-1416SCF Hirose DF22 系列母压接接线端子, 压接, 镀锡触点

$2.9750

Details

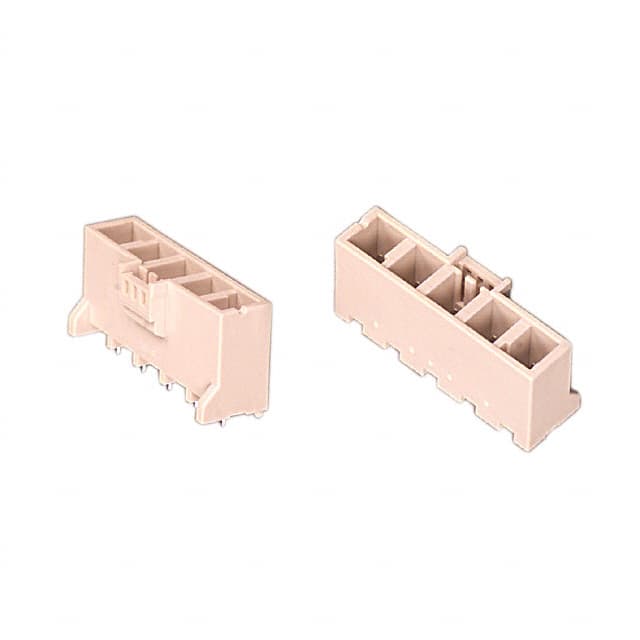

DF22-5P-7.92DSA(05)
