DF22-3S-7.92C(28)
| Manufacturer | |
| Description | Power to the Board Housing SKT 3 POS 7.92mm ST Bag CONN SOCKET 3POS 7.92MM WHITE PCB Connector bd-wire 7.92mm pitch Conn Housing SKT 3 POS 7.92mm Crimp ST Cable Mount Bag Hirose EnerBee DF22 系列 7.92mm 节距 3 路 直 母 电缆安装 压接连接器外壳 |
| Category |
Business
| Product Category | Power to the Board | Standard Package | 100 |
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 600 V | Current Rating (Max) | 20 A |
| Voltage - Supply (Min) | 1000VDC/1000VAC | ||
Mechanical
| Color | White | Depth | 20mm |
| Pitch | 0.312" (7.92mm) | Width | 11.55mm |
| Height | 11.55 mm | Length | 23.42mm |
| Packaging | Bulk | Wire Gauge | 10-16 AWG |
| Orientation | 直 | Weight (g): | 0.15 |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin Copper | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | Copper Alloy | Housing Material | PA |
| Length - Overall | 23.42 mm | Termination Style | Crimp |
| Number of Contacts | 3 | Contact Termination | Crimp |
| Number of Positions | 3 | ||
Product Info
| Name | 塑壳 | Note | Contacts Not Provided |
| Type | Housing | Unit | PCS |
| Gender | Female | Series | DF22 |
| DELETED | Compliant | Features | Polarizing Key |
| Quantity | 5000.0 | Manufacturing Country | 日本 |
| Minimum Order Quantity | 1 | For Use With/Related Products | High Current Connector |
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
Similar Parts

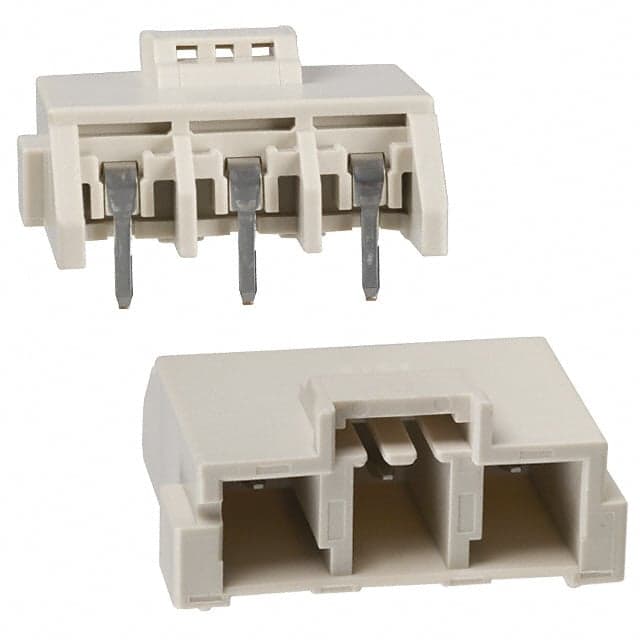

DF22-3P-7.92DS
Hirose Connector
電源対基板 Obsolete CONN HEADER 3POS 7.92MM R/A TIN
DF22A-1416SCF
Hirose Connector
Power to the Board Contact SKT 1 POS Cr ST Cable Mount T CONN TERMINAL CRIMP UL1015 TIN DF22A-1416SCF Hirose DF22 系列 母 压接接线端子, 压接, 镀锡触点

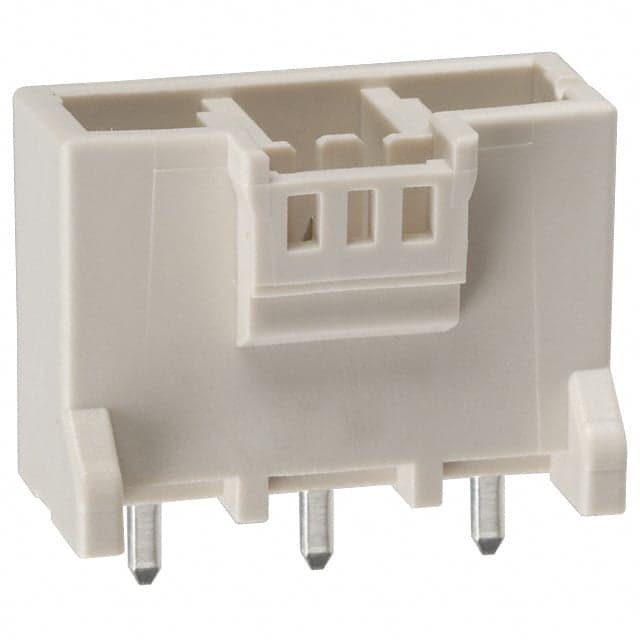

DF22-3P-7.92DSA(05)
