DF22-2EP-7.92C
| Manufacturer | |
| Description | 電源対基板 2CONT IN LINE PLG CRIMP HOUS CONN PLUG HOUSING 2POS 7.92MM 2 Pole Male Panel Mount Mains Inline Plug Rated At 18A,1000V ac/dc Power to the Board 2CONT IN LINE PLG CRIMP HOUS Conn Wire to Board PL 2 POS 7.92mm Crimp ST Cable Mount 2极 面板安装 插头 电源直插式连接器, 额定18A, 1000V 交流/直流 |
| Category |
对参数有疑问？问 AI 助手
Business
| Other Names | 680-1049-2-00 | Standard Package | 100 |
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 1000 V ac/dc | Contact Resistance | 5 mohm |
| Current Rating (Max) | 18A | Insulation Resistance | 1000 MOhms |
| Voltage - Supply (Min) | 600VDC/600VAC | Connector - Voltage Input | Plug |
Mechanical
| Color | Natural | Depth | 35.95 mm |
| Pitch | 0.312" (7.92mm) | Height | 12.72 mm |
| Length | 23.22mm | Packaging | Bulk |
| Termination | Crimp | Contact Type | Male Pin |
| Housing Color | Beige | Mounting Type | Panel Mount |
| Connector Type | Plug | Contact Finish | Tin Lead Alloy |
| Fastening Type | Latch Holder | Mounting Style | Cable |
| Number of Rows | 1 | Contact Material | Copper Alloy |
| Housing Material | Polyamide (PA) | Length - Overall | 23.22 mm |
| Termination Rows | 压接 | Connector - Cable | 插头 |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 2 | Contact Termination | Crimp |
| Number of Positions | 2 | Wire Gauge or Range - AWG | 16-10 |
Product Info
| Note | Contacts Not Provided | Type | Wire to Board |
| Gender | Male | Series | DF22 |
| DELETED | Compliant | Polarity | 2 |
| Pole Format | 2 | Product Type | Plugs |
Environmental
| Operating Temperature | - 35 C to + 85 C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
DF22A-1416PC
Hirose Connector
電源対基板 AWG14 TO 16 IN LINE PLG CONT CRIMP CONTACT Crimp contact,DF22,pin,AWG 14-16 Power to the Board AWG14 TO 16 IN LINE PLG CONT Contact PIN Crimp ST Cable Mount Bag Hirose DF22 系列 公 压接接线端子, 压接, 镀锡铜触点
$2.1706
Details

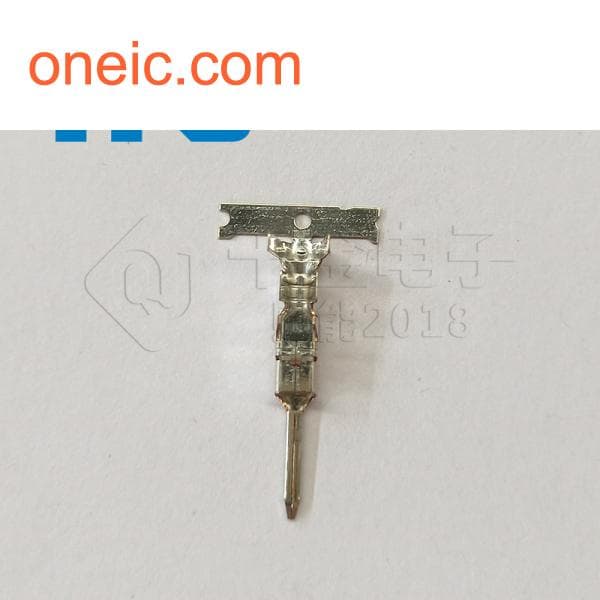

DF22A-1416PCF
Hirose Connector
電源対基板 AWG14 TO 16 IN LINE PLG CONT CONN TERMINAL UL1015 14-16AWG Power to the Board AWG14 TO 16 IN LINE PLG CONT
$0.8579
Details

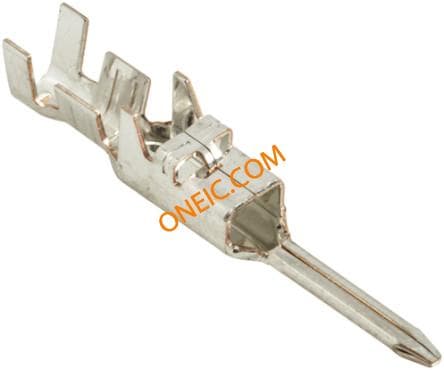

DF22-1416PC
Hirose Connector
Power to the Board HI CURRENT CON AWG14 TO 16 INLINE PLG CNT CONN TERMINAL UL1430 14-16AWG Crimp contact,inline plug,DF22,AWG 14-16 DF22-1416PC Hirose DF22 系列 公 压接接线端子, 压接, 镀锡触点
$90.4128
Details

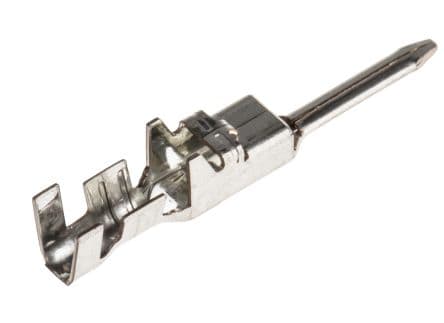

DF22-1416PCF
