点击放大查看

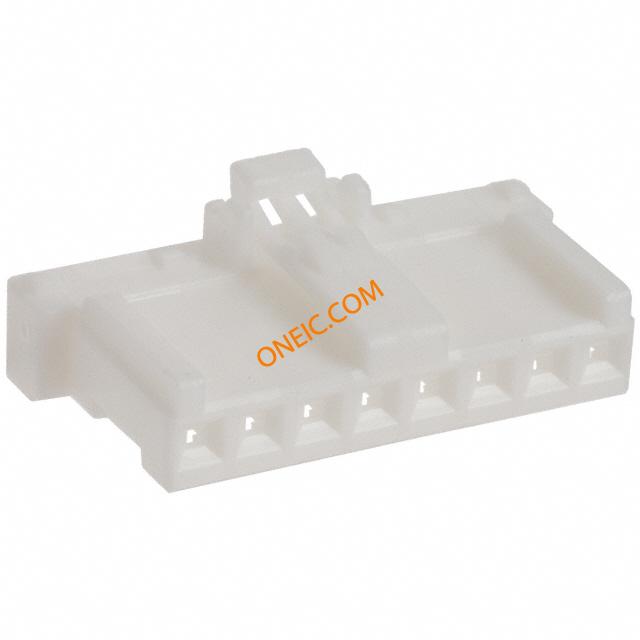

DF1E-8S-2.5C
| Manufacturer | |
| Description | Headers & Wire Housings 2.5MM 8P SOCKET HOUSING CONN RECEPT HOUSING 8POS 2.5MM DF1E Series 2.5mm 8 Way 1 Row Straight PCB Socket Panel Mount Board to Wire Conn Housing SKT 8 POS 2.5mm Crimp ST Cable Mount Bag Hirose DF1E 系列 8路 直 2.5mm节距 电缆安装 印刷电路板插座, 板对线、线对线 |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 3A |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | Crimp |
Mechanical
| Color | White | Depth | 11.8 mm |
| Pitch | 0.098" (2.50mm) | Height | 7.55 mm |
| Packaging | Bulk | Wire Gauge | 24-30 |
| Orientation | 直 | Contact Form | Female Socket |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 1 | Contact Material | 磷铜 |
| Housing Material | Polyamide (PA) | Length - Overall | 23 mm |
| Termination Rows | 压接 | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 8 |
| Contact Termination | Crimp | Number of Positions | 8 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | SKT | Series | DF1E |
| DELETED | Compliant | Product Type | Receptacles / Sockets - Housings |
| Accessory Type | Socket | Output Configuration | Free Hanging (In-Line) |
Environmental
| Operating Temperature | - 35 C to + 85 C | ||
Documents & Media
Similar Parts
DF1E-2022SCF
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SCF

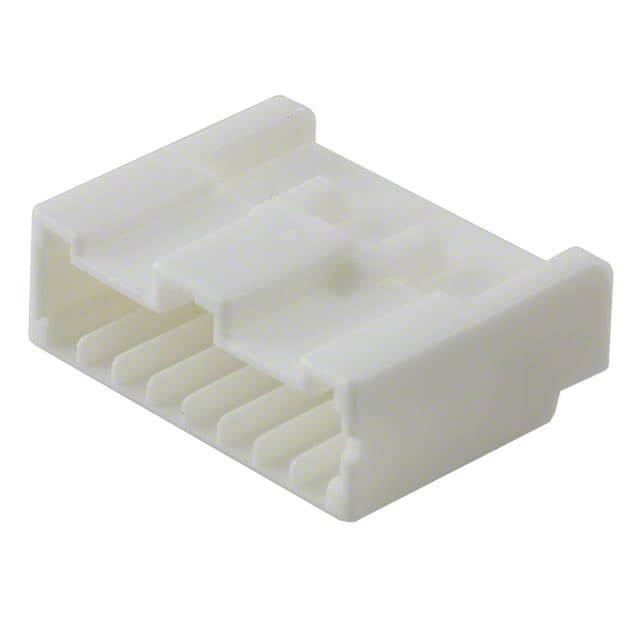

DF1EA-8EP-2.5C
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM INLINE PLUG 8P HSNG NO PNL LOCK CONN PLUG HOUSING 8POS 2.5MM Headers & Wire Housings 2.5MM INLINE PLUG 8P HSNG NO PNL LOCK
DF1E-2022SC
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SC

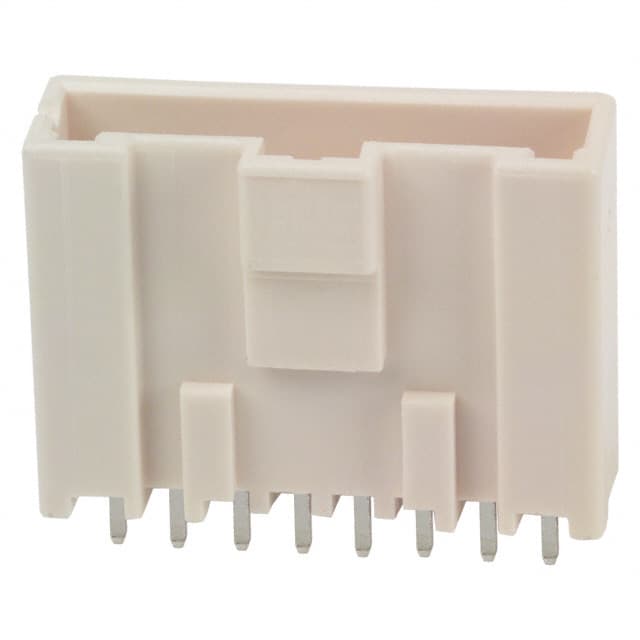

DF1EG-8P-2.5DSA(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM VERT HDR POT 8P PCB TIN W/O BOSS CONN HEADER 8POS 2.5MM STR TIN Headers & Wire Housings 2.5MM VERT HDR POT 8P PCB TIN W/O BOSS

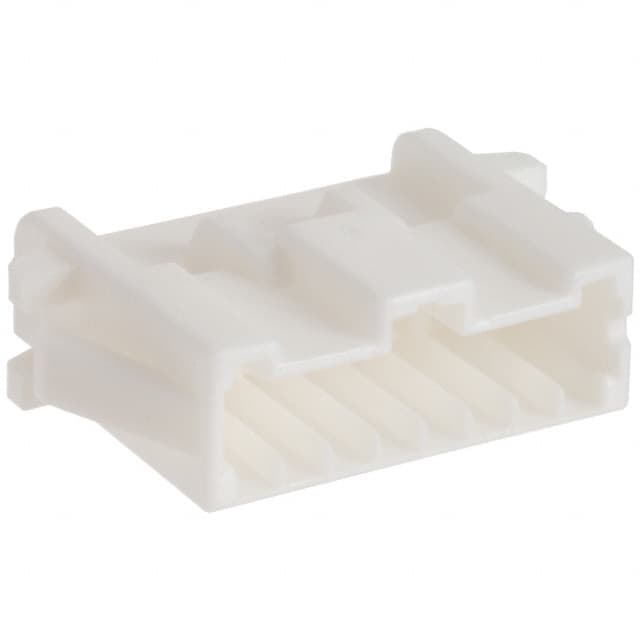

DF1E-8EP-2.5C
Hirose Connector
Headers & Wire Housings 2.5MM INLINE PLUG 8P HOUSING CONN PLUG HOUSING 8POS 2.5MM DF1E Series 2.5mm Pitch 8 Way 1 Row Straight PCB Header, Crimp Termination, 3A

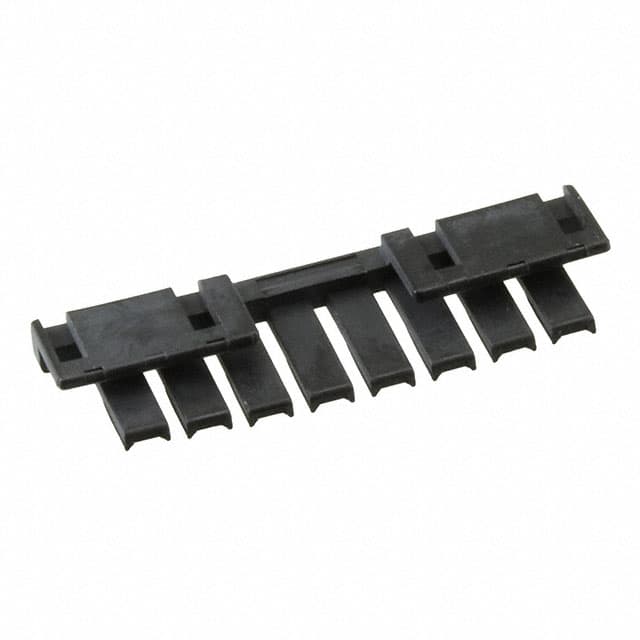

DF1E-8RS/P-2.5
Hirose Connector
Headers & Wire Housings 2.5MM 8P RETAINER CONN RETAINER 8POS 2.5MM connector, nylon, 2.5mm pitch, 8pole,

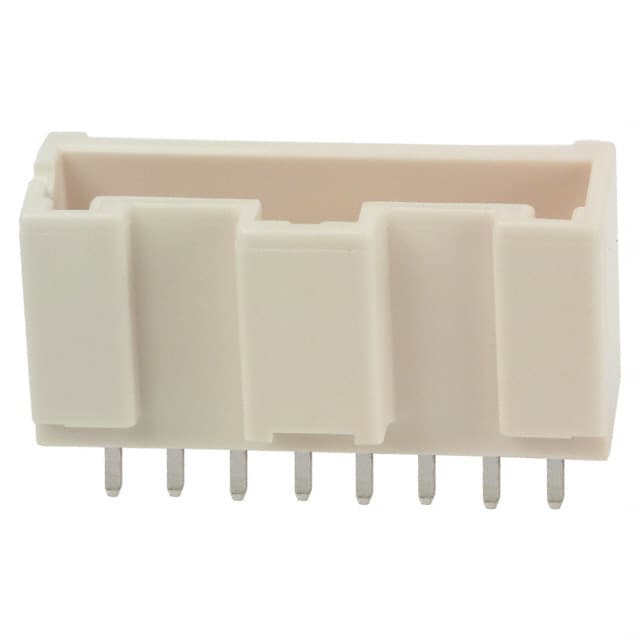

DF1EC-8P-2.5DSA(05)
Hirose Connector
Headers & Wire Housings 2.5MM VERT HDR 8P PCB TIN W/O BOSS CONN HEADER 8POS 2.5MM STR TIN Hirose DF1E Series 2.5mm Pitch 8 Way 1 Row Straight PCB Header, Solder Termination, 3A Conn Shrouded Header HDR 8 POS 2.5mm Solder ST Thru-Hole Bag

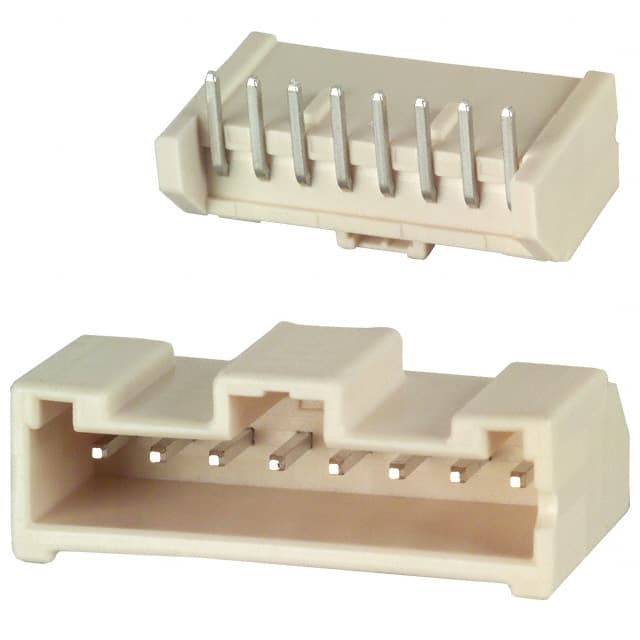

DF1E-8P-2.5DS(05)
