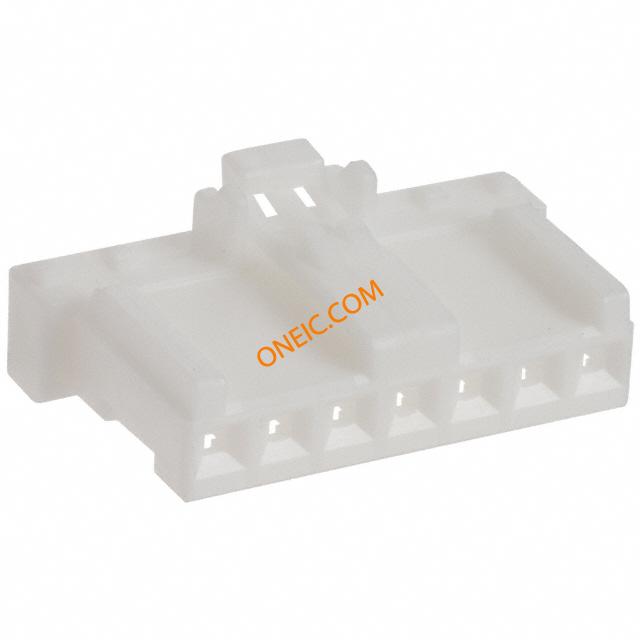

DF1E-7S-2.5C
| Manufacturer | |
| Description | Headers & Wire Housings 2.5MM 7P SOCKET HOUSING CONN RECEPT HOUSING 7POS 2.5MM DF1E Series 2.5mm 7 Way 1 Row Straight PCB Socket Panel Mount Board to Wire Conn Housing SKT 7 POS 2.5mm Crimp ST Cable Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 3A |
| Voltage - Supply (Min) | 250VAC | Connector - Voltage Input | Crimp |
Mechanical
| Color | White | Depth | 11.8 mm |
| Pitch | 0.098" (2.50mm) | Height | 7.55 mm |
| Packaging | Bulk | Contact Form | Female Socket |
| Contact Type | Female Socket | Housing Color | White |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Fastening Type | Latch Lock | Mounting Style | Free Hanging |
| Number of Rows | 1 | Housing Material | Polyamide |
| Length - Overall | 20.5 mm | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 7 | Contact Termination | Crimp |
| Number of Positions | 7 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | SKT | Series | DF1E |
| DELETED | Compliant | Product Type | Receptacles / Sockets - Housings |
| Output Configuration | Free Hanging (In-Line) | ||
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
Similar Parts

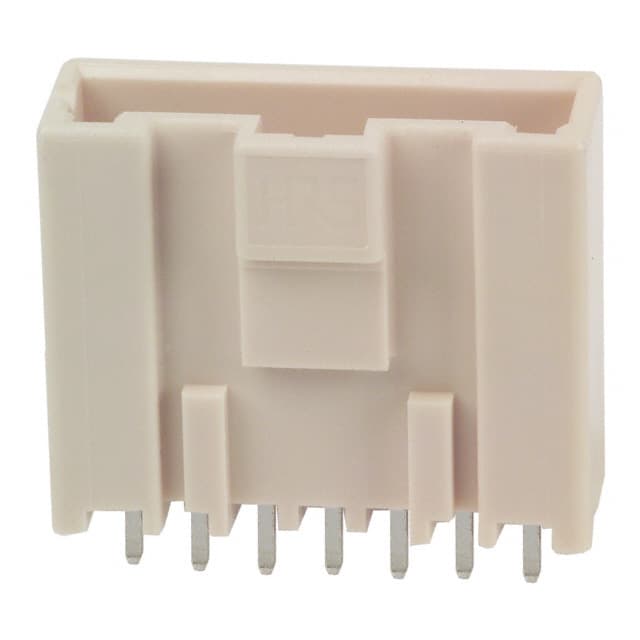

DF1EG-7P-2.5DSA(05)
Hirose Connector
Headers & Wire Housings 2.5MM VERT HDR POT 7P PCB TIN W/O BOSS CONN HEADER 7POS 2.5MM STR TIN

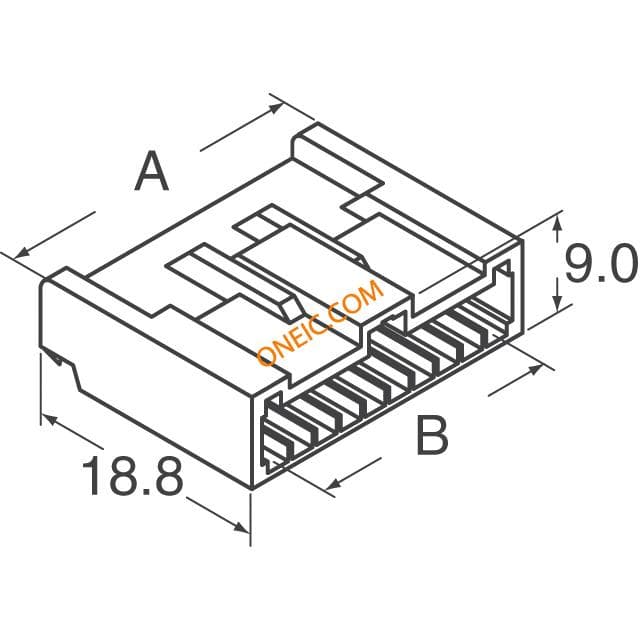

DF1EA-7EP-2.5C
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM INLINE PLUG 7P HSNG NO PNL LOCK CONN PLUG HOUSING 7POS 2.5MM Headers & Wire Housings 2.5MM INLINE PLUG 7P HSNG NO PNL LOCK
DF1E-2022SCF
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SCF
DF1EC-7P-2.5DSA
Hirose Connector
Headers & Wire Housings Obsolete CONN HEADER 7POS 2.5MM STR TIN
DF1EG-7P-2.5DSA
Hirose Connector
Headers & Wire Housings Obsolete CONN HEADER 7POS 2.5MM STR TIN
DF1E-2022SC
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SC

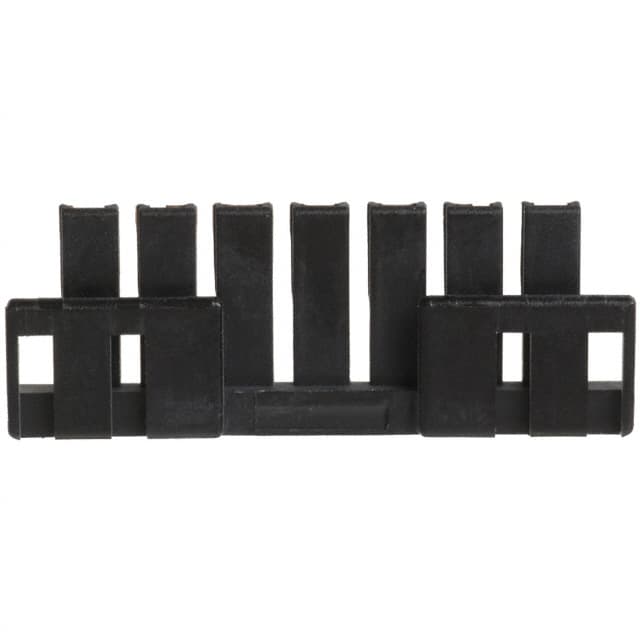

DF1E-7RS/P-2.5
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM 7P RETAINER CONN RETAINER 7POS 2.5MM

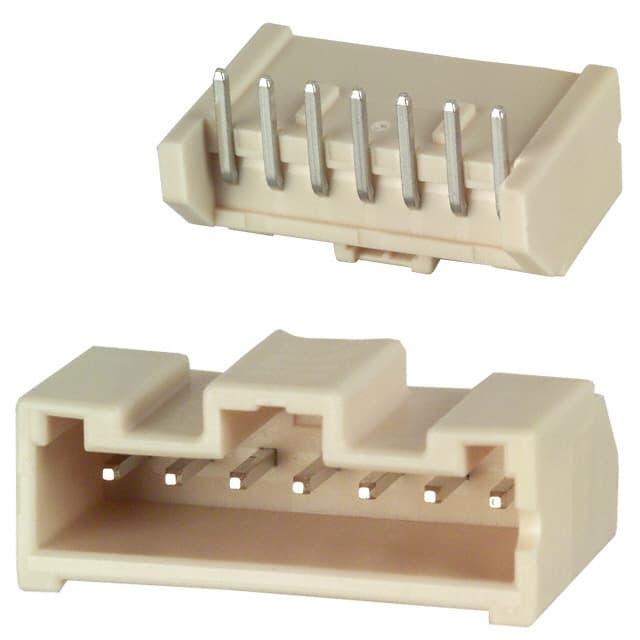

DF1E-7P-2.5DS(05)
Hirose Connector
Headers & Wire Housings 2.5MM RA HEADER 7P THRU-HOLE TIN CONN HEADER 7POS 2.5MM R/A TIN Hirose DF1E Series 2.5mm Pitch 7 Way 1 Row Right Angle PCB Header, Solder Termination, 3A

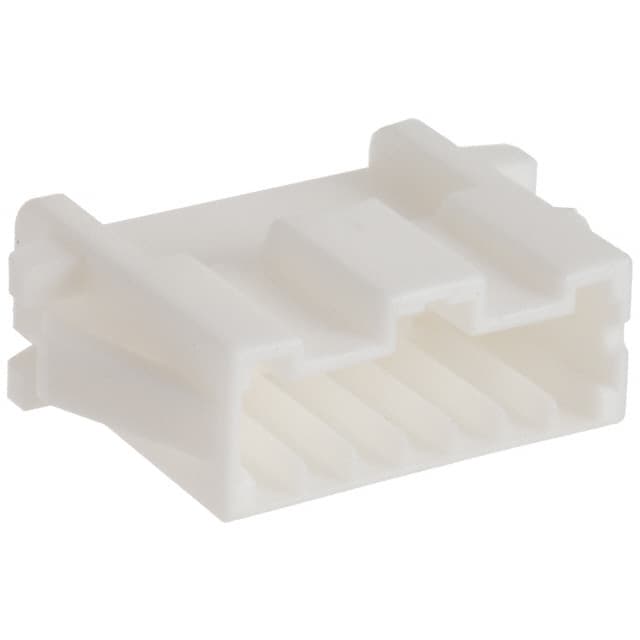

DF1E-7EP-2.5C
