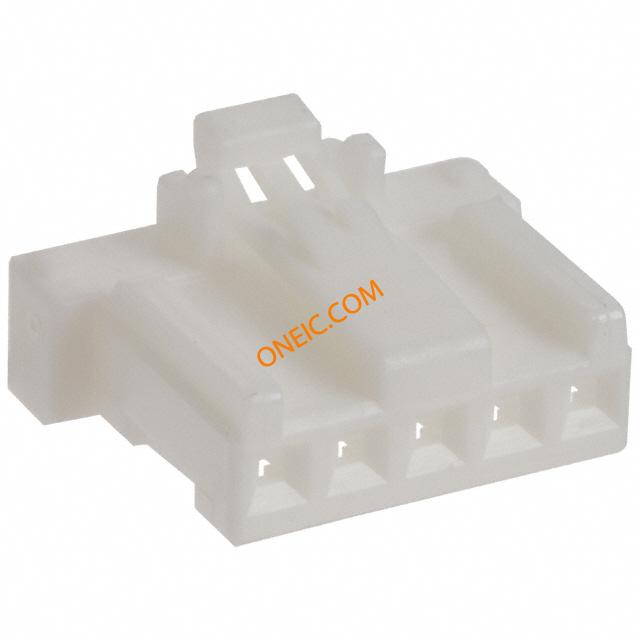

DF1E-5S-2.5C
| Manufacturer | |
| Description | Headers & Wire Housings 2.5MM 5P SOCKET HOUSING CONN RECEPT HOUSING 5POS 2.5MM DF1E Series 2.5mm 5 Way 1 Row Straight PCB Socket Panel Mount Board to Wire Conn Housing SKT 5 POS 2.5mm Crimp ST Cable Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 3A |
Mechanical
| Color | White | Pitch | 0.098" (2.50mm) |
| Packaging | Bulk | Contact Type | Female Socket |
| Mounting Type | Free Hanging (In-Line) | Connector Type | Receptacle |
| Contact Finish | Tin | Fastening Type | Latch Lock |
| Mounting Style | Wire | Number of Rows | 1 |
| Contact Material | Phosphor Copper | Housing Material | Polyamide |
| Termination Style | Crimp | 1st Contact Gender | Socket (Female) |
| Number of Contacts | 5 | Contact Termination | Crimp |
| Number of Positions | 5 | ||
Product Info
| Note | Contacts Not Provided | Series | DF1E |
| DELETED | Compliant | Product Type | Receptacles / Sockets - Housings |
Documents & Media
Similar Parts
DF1EA-5EP-2.5C
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM INLINE PLUG 5P HSNG NO PNL LOCK CONN PLUG HOUSING 5POS 2.5MM Headers & Wire Housings 2.5MM INLINE PLUG 5P HSNG NO PNL LOCK Conn Housing PL 5 POS 2.5mm Crimp ST Cable Mount Bag
DF1E-2022SCF
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SCF

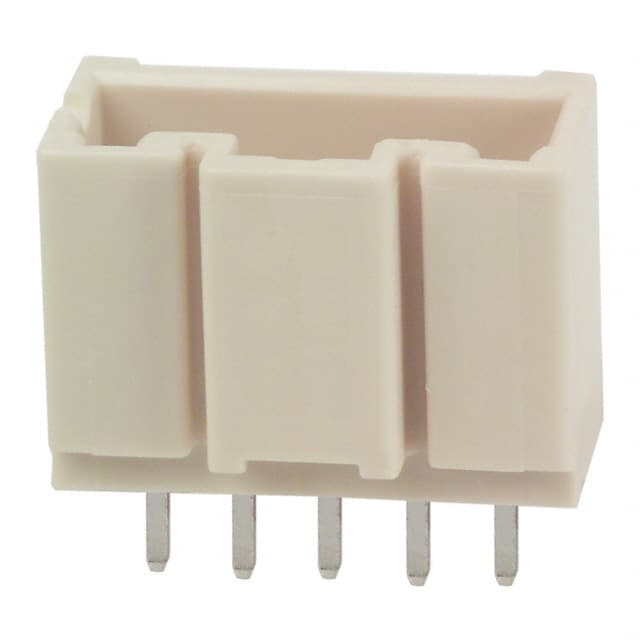

DF1EC-5P-2.5DSA
Hirose Connector
Headers & Wire Housings Obsolete CONN HEADER 5POS 2.5MM STR TIN

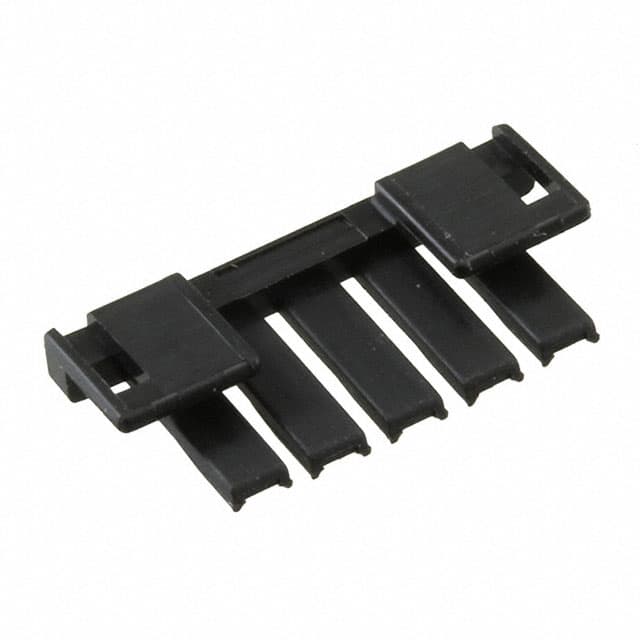

DF1E-5RS/P-2.5
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM 5P HOUSING CONN RETAINER 5POS 2.5MM Headers & Wire Housings 2.5MM 5P HOUSING Connector Accessories Retainer Polyamide Black Bag
DF1E-2022SC
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SC
DF1EC-5P-2.5DSA(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM VERT HDR 5P PCB TIN W/O BOSS CONN HEADER 5POS 2.5MM STR TIN Hirose DF1E Series 2.5mm Pitch 5 Way 1 Row Straight PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5MM VERT HDR 5P PCB TIN W/O BOSS

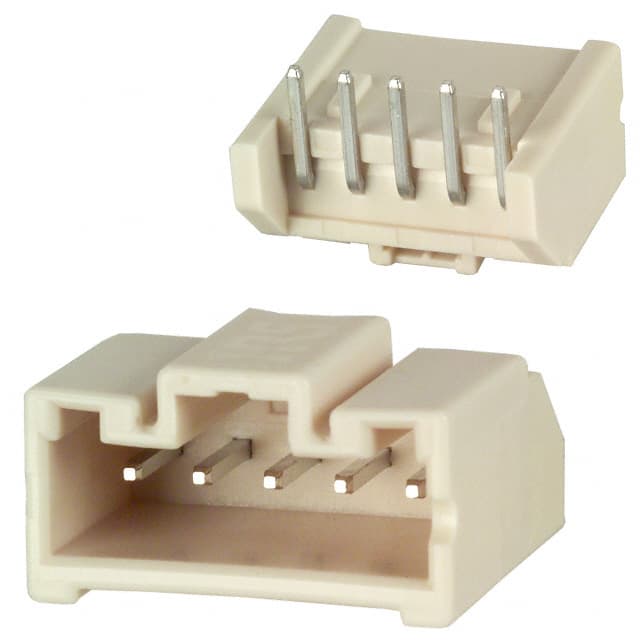

DF1E-5P-2.5DS(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM RA HEADER 5P THRU-HOLE TIN CONN HEADER 5POS 2.5MM R/A TIN Hirose DF1E Series 2.5mm Pitch 5 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings 2.5MM RA HEADER 5P THRU-HOLE TIN

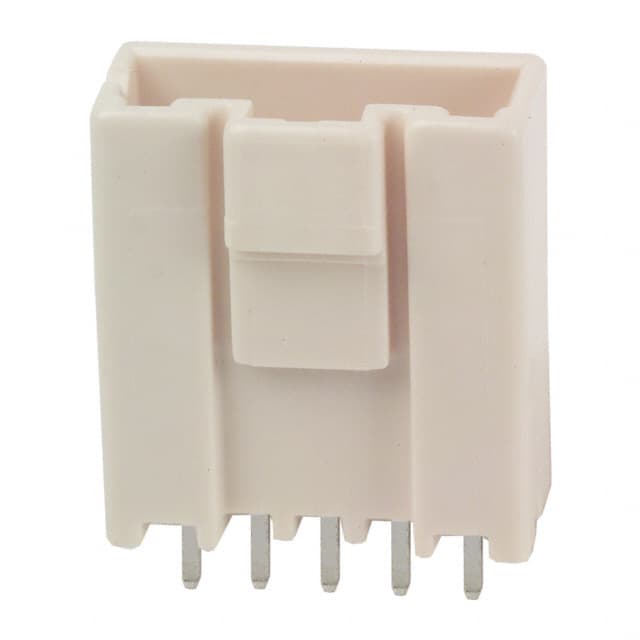

DF1EG-5P-2.5DSA(05)
Hirose Connector
ヘッダ & ワイヤハウジング 2.5MM VERT HDR POT 5P PCB TIN W/O BOSS CONN HEADER 5POS 2.5MM STR TIN

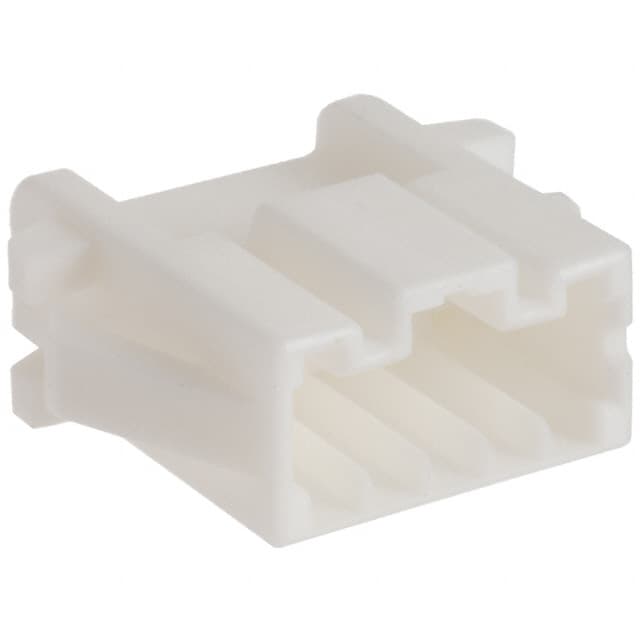

DF1E-5EP-2.5C
Hirose Connector
Headers & Wire Housings 2.5MM INLINE PLUG 5P HOUSING CONN PLUG HOUSING 5POS 2.5MM DF1E Series 2.5mm Pitch 5 Way 1 Row Straight PCB Header, Crimp Termination, 3A
DF1E-5P-2.5DS
Hirose Electric Co Ltd
CONN HEADER 5POS 2.5MM R/A TIN
DF1EG-5P-2.5DSA
Hirose Electric Co Ltd
CONN HEADER 5POS 2.5MM STR TIN
