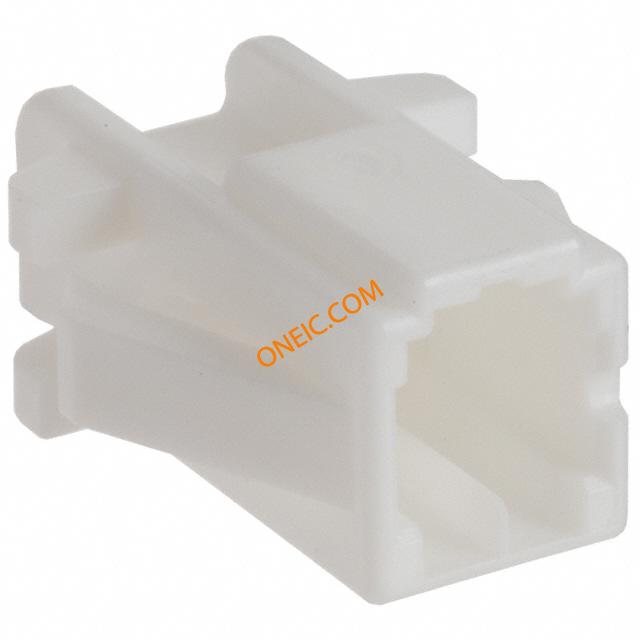

DF1E-2EP-2.5C
| Manufacturer | |
| Description | Headers & Wire Housings 2.5MM INLINE PLUG 2P HOUSING CONN PLUG HOUSING 2POS 2.5MM DF1E Series 2.5mm Pitch 2 Way 1 Row Straight PCB Header, Crimp Termination, 3A Conn Housing PL 2 POS 2.5mm Crimp ST Cable Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 250 V ac | Switch Function | Latched |
| Current Rating (Max) | 3A | Voltage - Supply (Min) | 250VAC |
Mechanical

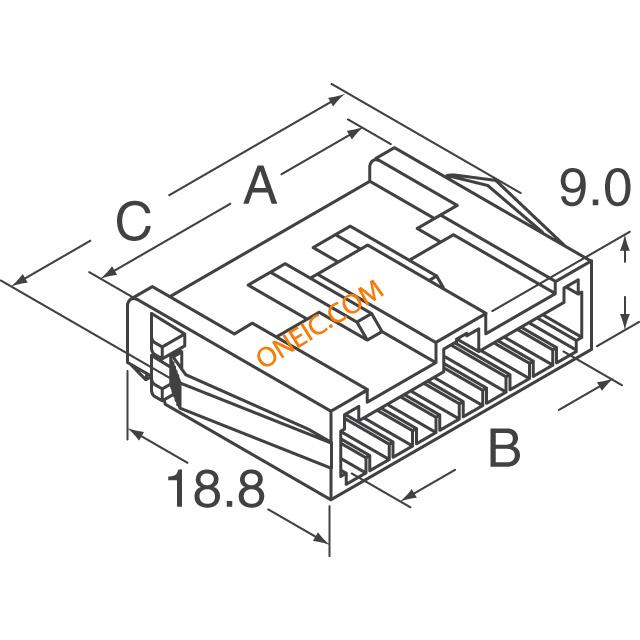

| Color | White | Depth | 18.8 mm |
| Pitch | 0.098" (2.50mm) | Height | 9 mm |
| Packaging | Bulk | Wire Gauge | 20-30 |
| Contact Type | Male Pin | Housing Color | White |
| Mounting Type | Panel Mount, Snap-In | Connector Type | Plug |
| Fastening Type | Latch Holder | Mounting Style | Free Hanging |
| Number of Rows | 1 | Housing Material | Polyamide (PA) |
| Length - Overall | 15 mm | Termination Style | Crimp |
| 1st Contact Gender | Pin (Male) | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | PL | Series | DF1E |
| DELETED | Compliant | Product Type | Plugs - Housings |
Environmental
| Operating Temperature | -35C to 85C | ||
