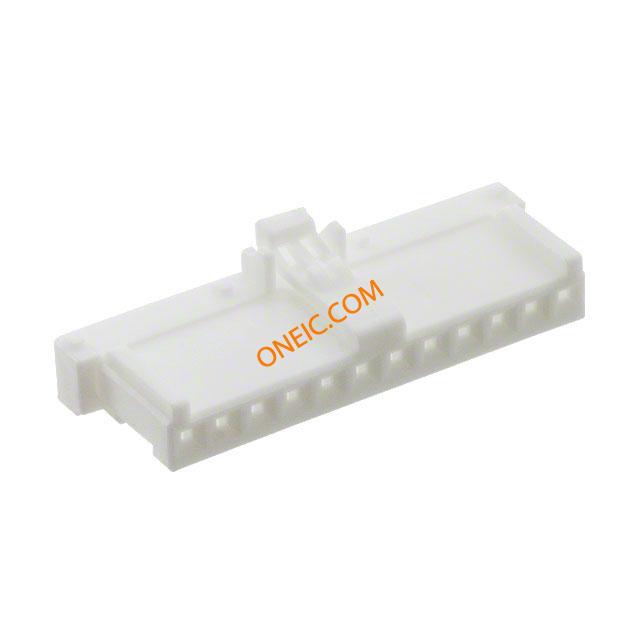

DF1E-12S-2.5C
| Manufacturer | |
| Description | Headers & Wire Housings 2.5MM 12P SOCKET HOUSING CONN RECEPT HOUSING 12POS 2.5MM DF1E Series 2.5mm 12 Way 1 Row Straight PCB Socket Panel Mount Board to Wire Conn Housing SKT 12 POS 2.5mm Crimp ST Cable Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 250 V ac | Current Rating (Max) | 3A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | White | Depth | 11.8 mm |
| Pitch | 0.098" (2.50mm) | Height | 7.55 mm |
| Packaging | Bulk | Contact Type | Female Socket |
| Housing Color | White | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Fastening Type | Latch Lock |
| Mounting Style | Free Hanging | Number of Rows | 1 |
| Housing Material | Polyamide | Length - Overall | 33 mm |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | ||
Product Info
| Note | Contacts Not Provided | Type | Housing |
| Gender | SKT | Series | DF1E |
| DELETED | Compliant | Product Type | Receptacles / Sockets - Housings |
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
Similar Parts
DF1E-2022SCF
Hirose Connector
ヘッダ & ワイヤハウジング 20-22 AWG FEMALE CRIMP CONTACT TIN CONN SOCKET CRIMP 20-22AWG TIN Headers & Wire Housings 20-22 AWG FEMALE CRIMP CONTACT TIN DF1E-2022SCF

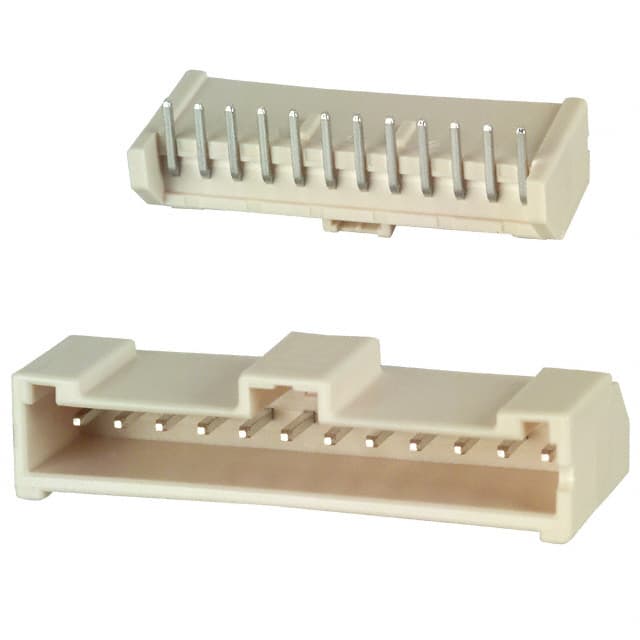

DF1E-12P-2.5DS
