DF1B-3S-2.5R

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2.5MM SINGLE ROW SKT 3P HOUSING CONN RECEPT HOUSING 3POS 2.5MM Conn Housing PL 3 POS 2.5mm Crimp ST Cable Mount Bag
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 VAC	Switch Function	Unlatched
Current Rating (Max)	3 A	Voltage - Supply (Min)	250VAC

Mechanical

Color	White	Depth	11.5 mm
Pitch	0.098" (2.50mm)	Height	4.4 mm
Packaging	Bulk	Weight (g):	2.5
Contact Type	Female Socket	Housing Color	White
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Mounting Style	Free Hanging	Number of Rows	1
Housing Material	Polyamide (PA)	Length - Overall	7.5 mm
Termination Style	Crimp	1st Contact Gender	Socket (Female)
Number of Contacts	3	Contact Termination	Crimp, IDC
Number of Positions	3

Product Info

Name	塑壳	Note	Contacts Not Provided
Type	Housing	Unit	PCS
Gender	PL	Series	DF1B
DELETED	Compliant	Quantity	10000.0
Manufacturing Country	日本	Minimum Order Quantity	1

Environmental

Operating Temperature

-35C to 85C

Documents & Media

PDF Document

DF1B Series

PDF Document

e54102006.pdf

Similar Parts

DF1B-R24

Hirose Connector

Headers & Wire Housings CRIMP FML CONTACT 24 AWG TIN CONN SOCKET IDC 24AWG TIN DF1B-R24

$0.3080

Details

DF1B-R26F

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 26 AWG TIN CONN SOCKET IDC 26AWG TIN

$0.3070

Details

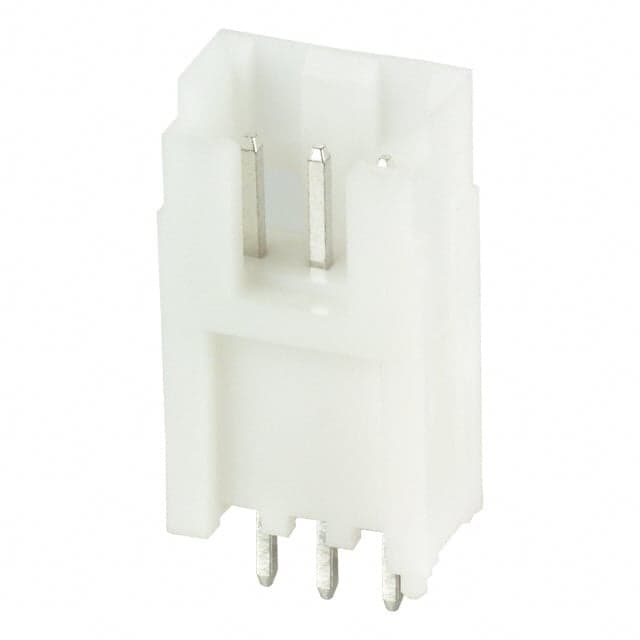

DF1BD-3P-2.5DSA(05)

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM V SNG ROW HDR 3P THRU-HOLE TIN CONN HEADER 3POS 2.5MM STR TIN

$2.4963

Details

DF1B-R28F

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 28 AWG TIN CONN SOCKET IDC 28AWG TIN

$0.1360

Details

DF1B-R28FA

Hirose Connector

Headers & Wire Housings Obsolete CONN SOCKET IDC 28AWG GOLD

Details

DF1B-2428SCFA

Hirose Connector

ヘッダ & ワイヤハウジング CRIMP FML CONTACT 24-28 AWG GOLD CONN SOCKET CRIMP 24-28AWG GOLD Headers & Wire Housings CRIMP FML CONTACT 24-28 AWG GOLD DF1B-2428SCFA

$0.4148

Details

DF1B-R28FA(06)

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 28 AWG GOLD CONN SOCKET IDC 28AWG GOLD

$0.5440

Details

DF1BA-3EP-2.5RC

Hirose Connector

Headers & Wire Housings 2.5MM SNG ROW PLUG 3P INLINE PNL MNT CONN PLUG HOUSING 3POS 2.5MM Conn Housing RCP 3 POS 2.5mm Crimp ST Cable Mount Bag

$0.8908

Details

DF1B-R24FA(06)

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 24 AWG GOLD CONN SOCKET IDC 24AWG GOLD Headers & Wire Housings IDC FML CONTACT 24 AWG GOLD

$0.4896

Details

DF1B-2428SCF

Hirose Connector

Headers & Wire Housings CRIMP FML CONTACT 24-28 AWG TIN CONN SOCKET CRIMP 24-28AWG TIN DF1B-2428SCF

$0.2461

Details

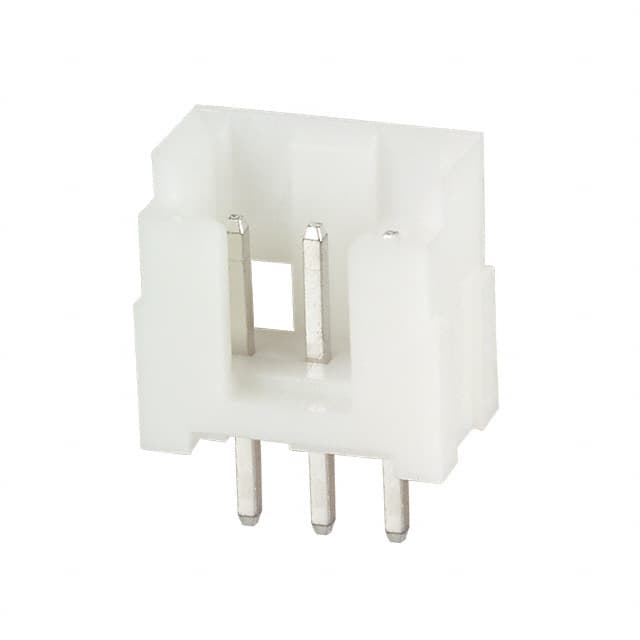

DF1BZ-3P-2.5DSA

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM V SNG ROW HDR 3P THRU-HOLE TIN CONN HEADER 3POS 2.5MM STR TIN Headers & Wire Housings 2.5MM V SNG ROW HDR 3P THRU-HOLE TIN Conn Shrouded Header HDR 3 POS 2.5mm Solder ST Thru-Hole Bag

$0.9010

Details

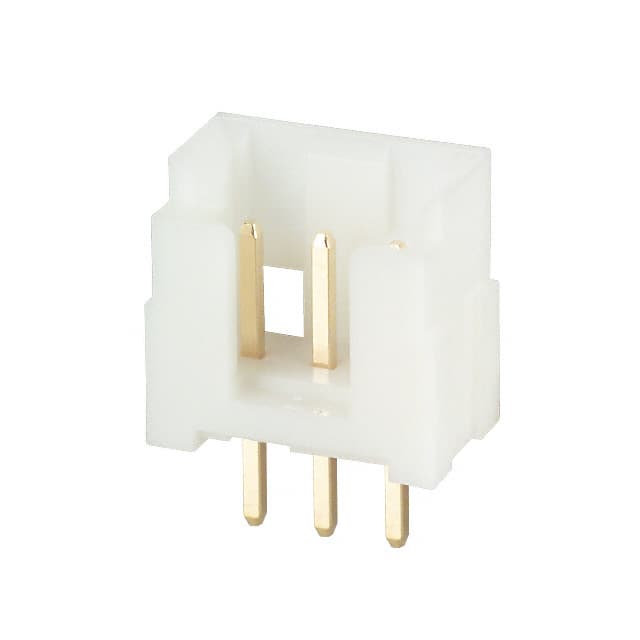

DF1B-3P-2.5DSA(01)

Hirose Connector

Headers & Wire Housings 2.5MM V SNG ROW HDR 3P THRU-HOLE GOLD CONN HEADER 3POS 2.5MM STR GOLD

$1.0608

Details

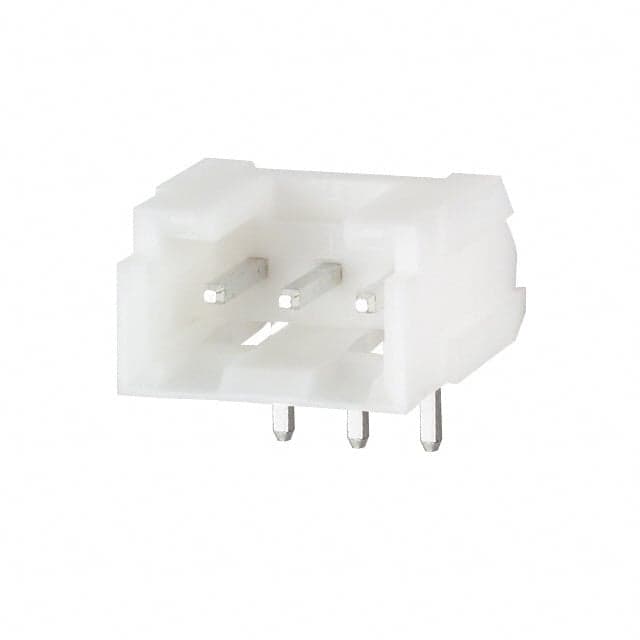

DF1BZ-3P-2.5DS

Hirose Connector

Headers & Wire Housings 2.5MM RA SNG ROW HDR 3P THRU-HOLE TIN CONN HEADER 3POS 2.5MM R/A TIN Conn Shrouded Header HDR 3 POS 2.5mm Solder RA Thru-Hole Bag

$0.9969

Details

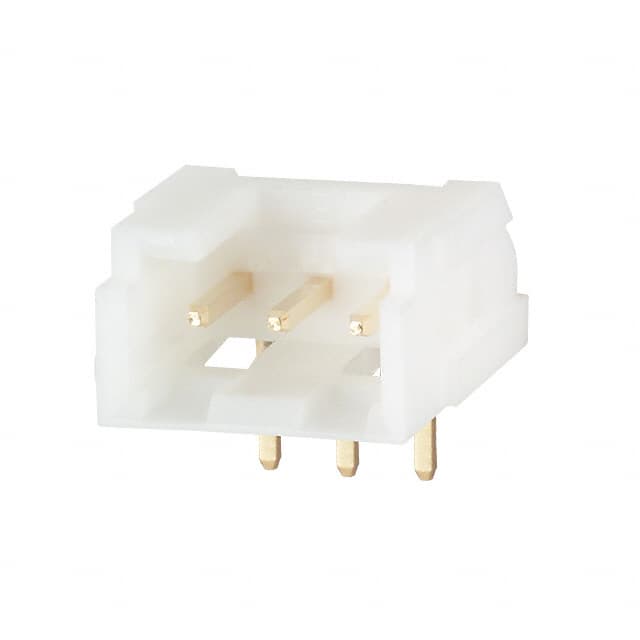

DF1B-3P-2.5DS(01)
