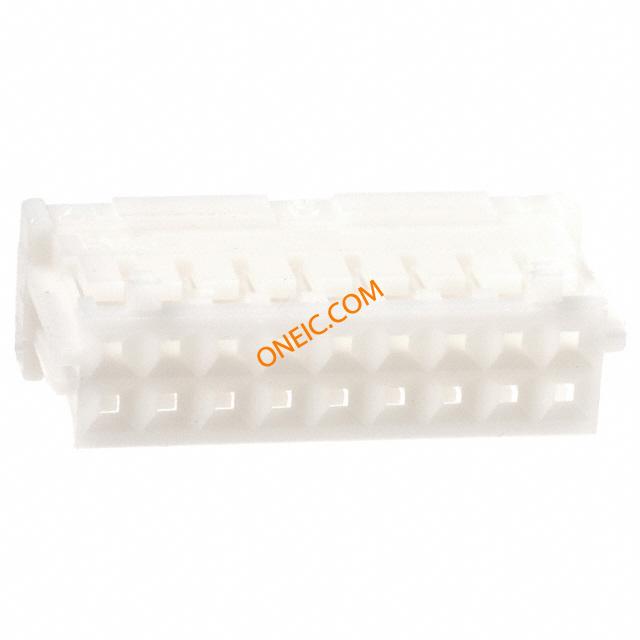

DF1B-18DS-2.5RC

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2.5MM DBL ROW SKT 18P HOUSING CONN RECEPT HOUSING 18POS 2.5MM Conn Housing PL 18 POS 2.5mm Crimp ST Cable Mount Bag
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 VAC	Switch Function	Unlatched
Current Rating (Max)	3 A	Voltage - Supply (Min)	250VAC

Mechanical

Color	White	Depth	11.5 mm
Pitch	0.098" (2.50mm)	Height	8 mm
Packaging	Bulk	Row Spacing	0.098" (2.50mm)
Contact Type	Female Socket	Housing Color	White
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Number of Rows	2	Housing Material	Polyamide (PA)
Length - Overall	25 mm	Termination Style	Through Hole
1st Contact Gender	Socket (Female)	Number of Contacts	18
Contact Termination	Crimp, IDC	Number of Positions	18

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	PL	Series	DF1B
DELETED	Compliant

Environmental

Operating Temperature

-35C to 85C

Documents & Media

PDF Document

DF1B Series

PDF Document

e54102006.pdf

Similar Parts

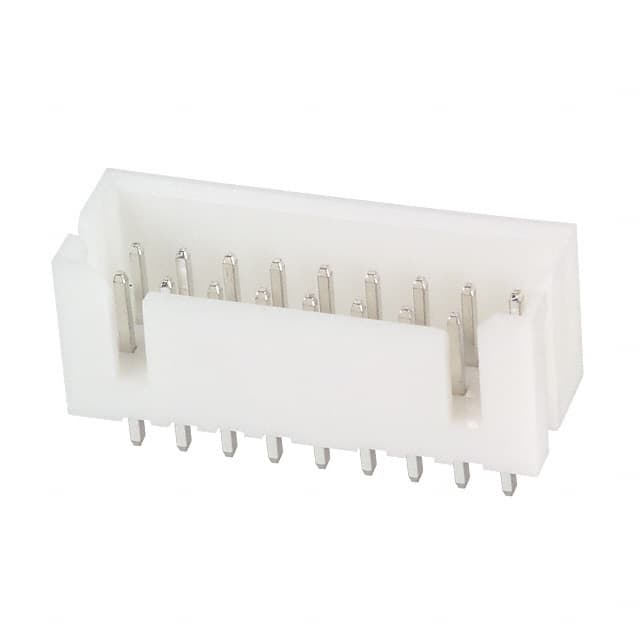

DF1BZ-18DP-2.5DSA

Hirose Connector

Headers & Wire Housings 2.5MM V DBL ROW HDR 18P THRU-HOLE TIN CONN HEADER 18POS 2.5MM STR TIN Conn Shrouded Header HDR 18 POS 2.5mm Solder ST Thru-Hole Bag

$12.2060

Details

DF1B-R24

Hirose Connector

Headers & Wire Housings CRIMP FML CONTACT 24 AWG TIN CONN SOCKET IDC 24AWG TIN DF1B-R24

$0.1360

Details

DF1B-R26F

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 26 AWG TIN CONN SOCKET IDC 26AWG TIN

$0.3070

Details

DF1B-R28F

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 28 AWG TIN CONN SOCKET IDC 28AWG TIN

$0.1360

Details

DF1B-R28FA

Hirose Connector

Headers & Wire Housings Obsolete CONN SOCKET IDC 28AWG GOLD

Details

DF1B-18DP-2.5DSA

Hirose Connector

Headers & Wire Housings Obsolete CONN HEADER 18POS 2.5MM STR TIN

$11.0160

Details

DF1B-R26A

Hirose Connector

Headers & Wire Housings Obsolete CONN SOCKET IDC 26AWG GOLD

Details

DF1B-2428SCFA

Hirose Connector

ヘッダ & ワイヤハウジング CRIMP FML CONTACT 24-28 AWG GOLD CONN SOCKET CRIMP 24-28AWG GOLD Headers & Wire Housings CRIMP FML CONTACT 24-28 AWG GOLD DF1B-2428SCFA

$0.4148

Details

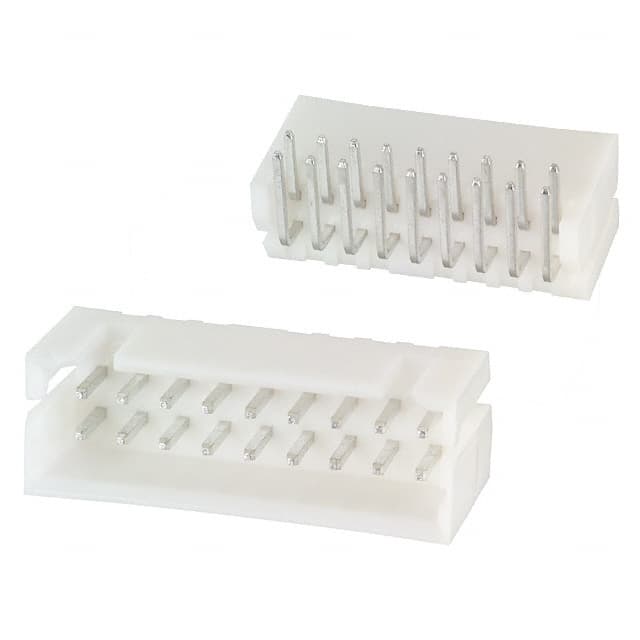

DF1BZ-18DP-2.5DS

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM RA DBL ROW HDR 18P THRU-HOLE TIN CONN HEADER 18POS 2.5MM R/A TIN Headers & Wire Housings 2.5MM RA DBL ROW HDR 18P THRU-HOLE TIN Conn Shrouded Header HDR 18 POS 2.5mm Solder RA Thru-Hole Bag

$23.2805

Details

DF1B-R28FA(06)

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 28 AWG GOLD CONN SOCKET IDC 28AWG GOLD

$0.5440

Details

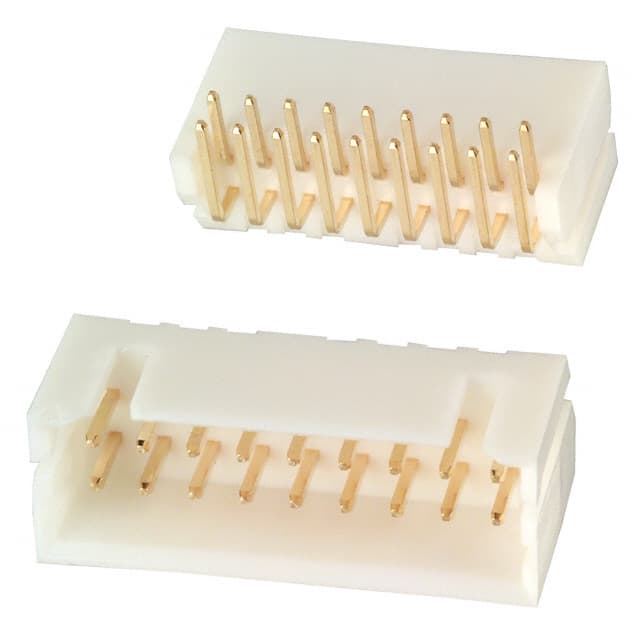

DF1B-18DP-2.5DS(01)

Hirose Connector

Headers & Wire Housings 2.5MM RA DBL ROW HDR 18P THRU-HOLE GOLD CONN HEADER 18POS 2.5MM R/A GOLD

$6.0112

Details

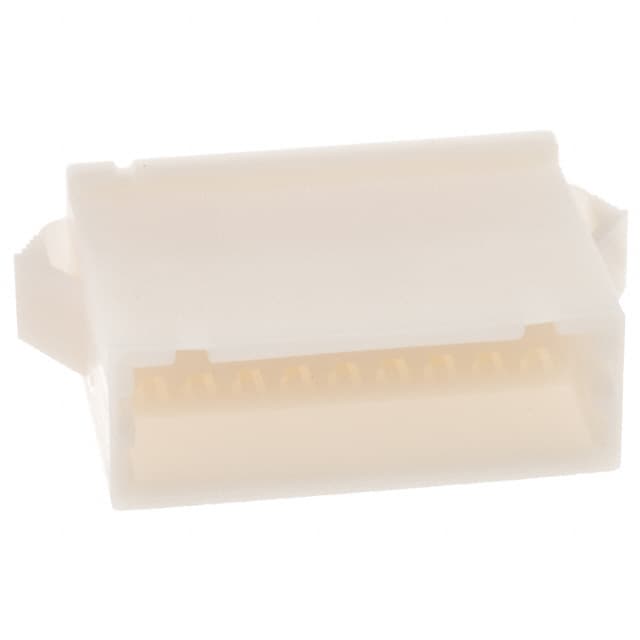

DF1BA-18DEP-2.5RC

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM DBL ROW PLUG 18P INLINE PNL MNT CONN PLUG HOUSING 18POS 2.5MM

$1.2036

Details

DF1B-R24FA(06)

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 24 AWG GOLD CONN SOCKET IDC 24AWG GOLD Headers & Wire Housings IDC FML CONTACT 24 AWG GOLD

$0.4896

Details

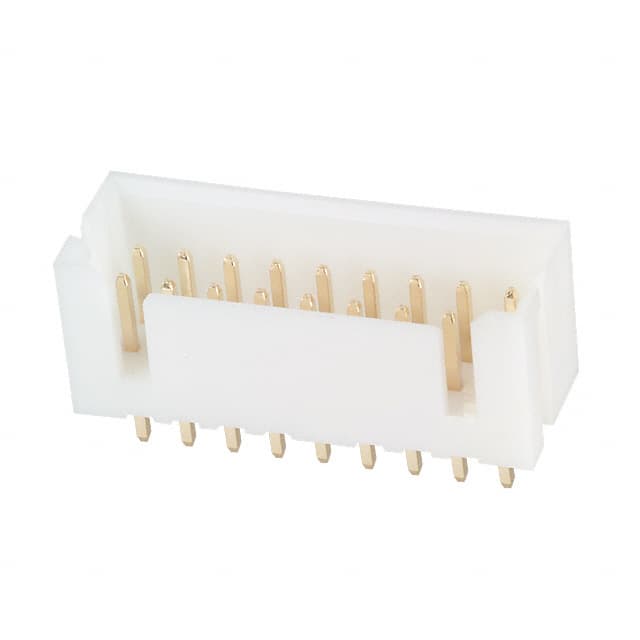

DF1B-18DP-2.5DSA(01)
