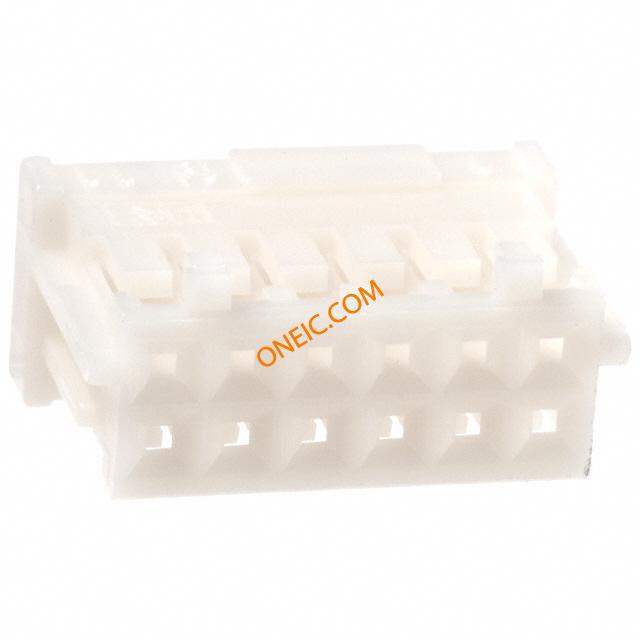

DF1B-12DS-2.5RC

Manufacturer	Hirose Electric Co., Ltd.
Description	ヘッダ & ワイヤハウジング 2.5MM DOUBLE ROW SKT 12P HOUSING CONN RECEPT HOUSING 12POS 2.5MM Headers & Wire Housings 2.5MM DOUBLE ROW SKT 12P HOUSING Conn Housing PL 12 POS 2.5mm Crimp ST Cable Mount Bag
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 VAC	Current Rating (Max)	3 A
Voltage - Supply (Min)	250VAC

Mechanical

Color	White	Depth	11.5 mm
Pitch	0.098" (2.50mm)	Height	8 mm
Packaging	Bulk	Row Spacing	0.098" (2.50mm)
Contact Type	Female Socket	Housing Color	White
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Contact Finish	Gold	Number of Rows	2
Contact Material	Phosphor Copper	Housing Material	Polyamide
Length - Overall	17.5 mm	Termination Style	Through Hole
1st Contact Gender	Socket (Female)	Number of Contacts	12
Contact Termination	Crimp, IDC	Number of Positions	12

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	PL	Series	DF1B
DELETED	Compliant	Product Type	Receptacles / Sockets - Housings

Environmental

Operating Temperature

-35C to 85C

Documents & Media

PDF Document

DF1B Series

PDF Document

e54102006.pdf

Similar Parts

DF1BA-12DEP-2.5RC

Hirose Connector

Headers & Wire Housings 2.5MM DBL ROW PLUG 12P INLINE PNL MNT CONN PLUG HOUSING 12POS 2.5MM

$1.7592

Details

DF1B-R24

Hirose Connector

Headers & Wire Housings CRIMP FML CONTACT 24 AWG TIN CONN SOCKET IDC 24AWG TIN DF1B-R24

$0.1360

Details

DF1B-R26F

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 26 AWG TIN CONN SOCKET IDC 26AWG TIN

$0.3070

Details

DF1B-R28F

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 28 AWG TIN CONN SOCKET IDC 28AWG TIN

$0.1360

Details

DF1B-R28FA

Hirose Connector

Headers & Wire Housings Obsolete CONN SOCKET IDC 28AWG GOLD

Details

DF1B-R26A

Hirose Connector

Headers & Wire Housings Obsolete CONN SOCKET IDC 26AWG GOLD

Details

DF1B-2428SCFA

Hirose Connector

ヘッダ & ワイヤハウジング CRIMP FML CONTACT 24-28 AWG GOLD CONN SOCKET CRIMP 24-28AWG GOLD Headers & Wire Housings CRIMP FML CONTACT 24-28 AWG GOLD DF1B-2428SCFA

$0.4291

Details

DF1B-R28FA(06)

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 28 AWG GOLD CONN SOCKET IDC 28AWG GOLD

$0.5440

Details

DF1B-R24FA(06)

Hirose Connector

ヘッダ & ワイヤハウジング IDC FML CONTACT 24 AWG GOLD CONN SOCKET IDC 24AWG GOLD Headers & Wire Housings IDC FML CONTACT 24 AWG GOLD

$0.4896

Details

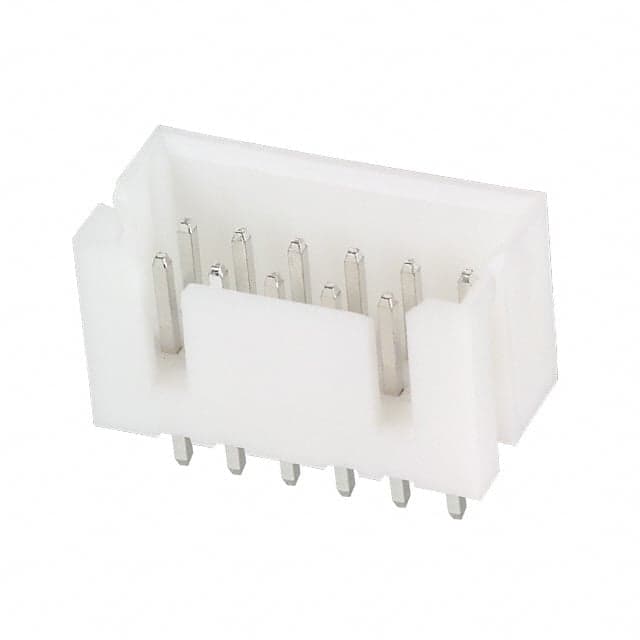

DF1BZ-12DP-2.5DSA

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM V DBL ROW HDR 12P THRU-HOLE TIN CONN HEADER 12POS 2.5MM STR TIN Headers & Wire Housings 2.5MM V DBL ROW HDR 12P THRU-HOLE TIN Conn Shrouded Header HDR 12 POS 2.5mm Solder ST Thru-Hole Bag

$1.9115

Details

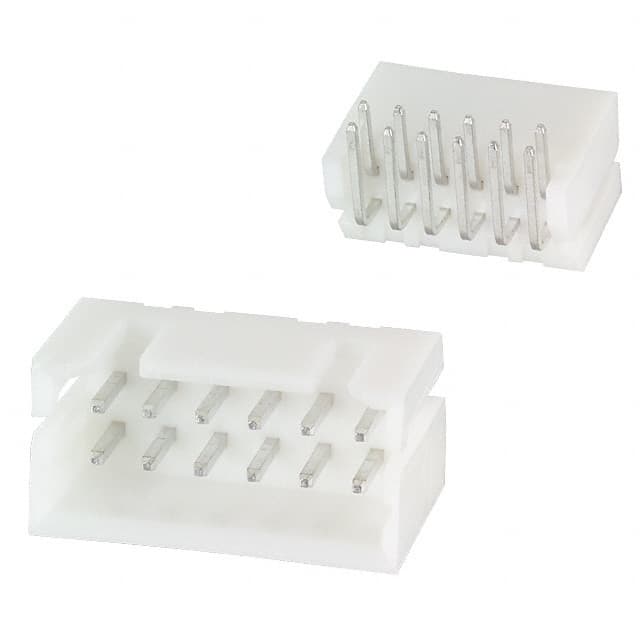

DF1B-12DP-2.5DS(01)

Hirose Connector

ヘッダ & ワイヤハウジング 2.5MM RA DBL ROW HDR 12P THRU-HOLE GOLD CONN HEADER 12POS 2.5MM R/A GOLD Headers & Wire Housings 2.5MM RA DBL ROW HDR 12P THRU-HOLE GOLD

$4.1548

Details

DF1B-2428SCF

Hirose Connector

Headers & Wire Housings CRIMP FML CONTACT 24-28 AWG TIN CONN SOCKET CRIMP 24-28AWG TIN DF1B-2428SCF

$0.1564

Details

DF1B-2022SCFA

Hirose Connector

Headers & Wire Housings 20-22AWG SKT CONTACT GOLD PLATING CONN SOCKET CRIMP 20-22AWG GOLD

$0.5426

Details

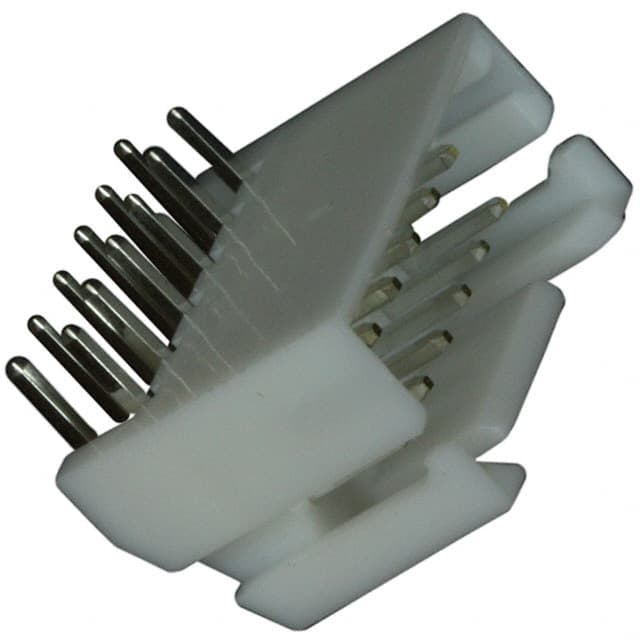

DF1BZ-12DP-2.5DS

Hirose Connector

Headers & Wire Housings 2.5MM RA DBL ROW HDR 12P THRU-HOLE TIN CONN HEADER 12POS 2.5MM R/A TIN

$1.8767

Details

DF1B-2428SC

Hirose Connector

Headers & Wire Housings CRIMP FML CONTACT 24-28 AWG TIN CONN SOCKET CRIMP 24-28AWG TIN connector, nylon, 2.5mm pitch, female, DF1B-2428SC

$0.2703

Details

DF1B-30SCFA

Hirose Connector

Headers & Wire Housings FEMALE SKT CONTACT 30 AWG GOLD CONN SOCKET CRIMP 30AWG GOLD

$2189.9536

Details

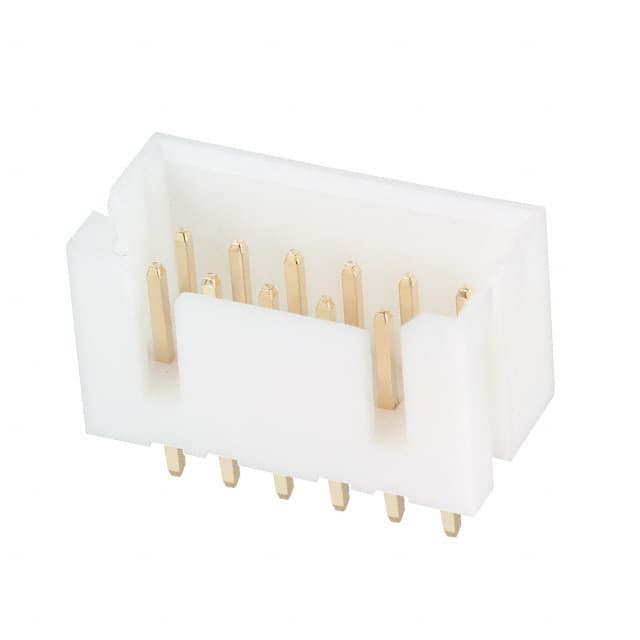

DF1B-12DP-2.5DSA(01)
