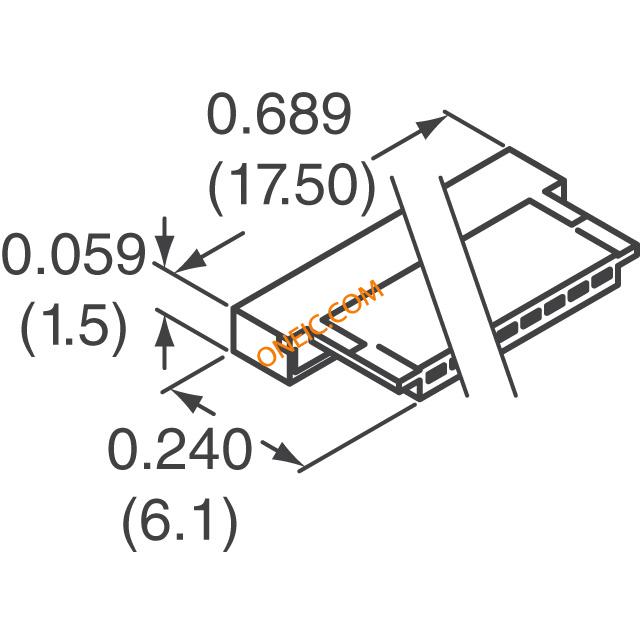

点击放大查看

DF19-14S-1C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 14P PLUG CRMP CONTCT NO GROUNDING PLATE CONN SOCKET CRIMP 14POS 1MM SNGL Conn Housing RCP 14 POS 1mm Crimp ST Cable Mount
Category	CapacitorsFilm CapacitorsMetallized Polypropylene Film Capacitors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	100 V	Current Rating (Max)	1 A
Insulation Resistance	500 MOhms	Voltage - Supply (Min)	100VAC

Mechanical

Color	Beige	Depth	6.1 mm
Pitch	0.039" (1.00mm)	Height	1.5 mm
Packaging	Bulk	Contact Type	Female Socket
Housing Color	Beige	Mounting Type	Free Hanging (In-Line)
Connector Type	Plug	Contact Finish	Gold
Number of Rows	1	Contact Material	Phosphor Bronze
Housing Material	Polyamide	Length - Overall	17.5 mm
Termination Style	Crimp	1st Contact Gender	Pin (Male)
Number of Contacts	1	Contact Termination	Crimp
Number of Positions	14

Product Info

Note	Contacts Not Provided	Type	Housing
Gender	RCP	Series	DF19
DELETED	Compliant	Product Type	Contacts

Environmental

Operating Temperature

- 35 C to + 85 C

Documents & Media

PDF Document

DF19 Series

PDF Document

e68500012.pdf
