DF14-9S-1.25C

Manufacturer	Hirose Electric Co., Ltd.
Description	ヘッダ & ワイヤハウジング 1.25MM SNG ROW SKT 9P HOUSING CONN SOCKET 9POS 1.25MM CRIMP Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 1.25MM SNG ROW SKT 9P HOUSING
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

Not Applicable

Electrical

Voltage Rating	150 V	Current Rating (Max)	1 A
Insulation Resistance	500 MOhms

Mechanical

Color	Beige	Depth	5.8mm
Pitch	0.049" (1.25mm)	Width	2.3mm
Length	13.2mm	Packaging	Bulk
Contact Type	Female Socket	Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle	Number of Rows	1
Housing Material	PA	1st Contact Gender	Socket (Female)
Number of Contacts	9	Contact Termination	Crimp
Number of Positions	9

Product Info

Note	Contacts Not Provided	Type	Socket Housing
Gender	Female	Series	DF14
Product Type	Wire Housings	For Use With/Related Products	Super Low Profile Crimping Connector

Environmental

Operating Temperature

- 35 C to + 85 C

Documents & Media

PDF Document

DF14 Series

PDF Document

en_DF14_20130411.pdf

Similar Parts

DF14A-9P-1.25H(20)

Hirose Connector

Headers & Wire Housings Obsolete CONN HEADER 9POS 1.25MM R/A SMD

Details

DF14A-9P-1.25H(50)

Hirose Connector

Headers & Wire Housings Obsolete CONN HEADER 9POS 1.25MM R/A SMD

Details

DF14-3032SCF

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET TIN CONTACTS REEL CONN TERM 30-32AWG CRIMP TIN Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 30-32 AWG SOCKET TIN CONTACTS REEL DF14-3032SCF

$0.0735

Details

DF14-3032SCFA

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET GOLD CONTACTS REEL CONN TERM 30-32AWG CRIMP GOLD Crimp Contact gold plated 30-32 AWG reel Headers & Wire Housings 30-32 AWG SOCKET GOLD CONTACTS REEL DF14-3032SCFA Hirose DF14 系列母压接接线端子, 压接, 镀金触点

$0.1568

Details

DF14A-9P-1.25H(25)

Hirose Connector

Headers & Wire Housings 1.25MM SNG ROW HDR 9P RA SMT W/O BOSS CONN HEADER 9POS 1.25MM R/A SMD

$4.6648

Details

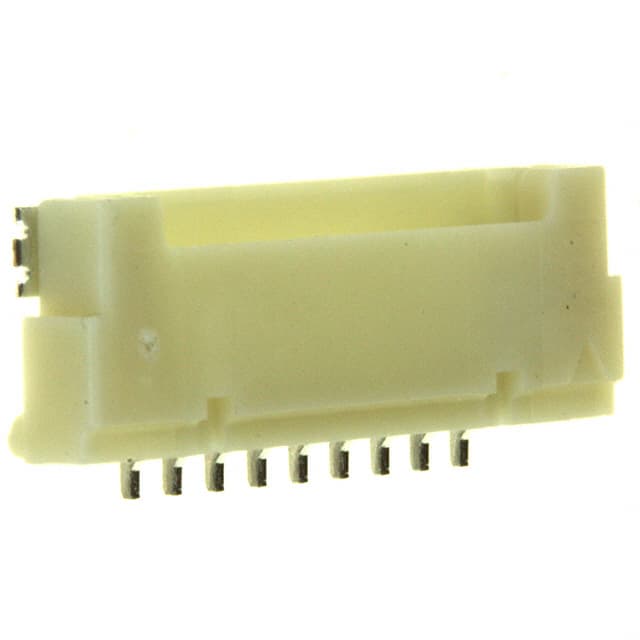

DF14-9P-1.25H(26)

Hirose Connector

Headers & Wire Housings HDR 9POS 1.25MM R/A SMT CONN HEADER 9POS 1.25MM R/A SMD

$4.4132

Details

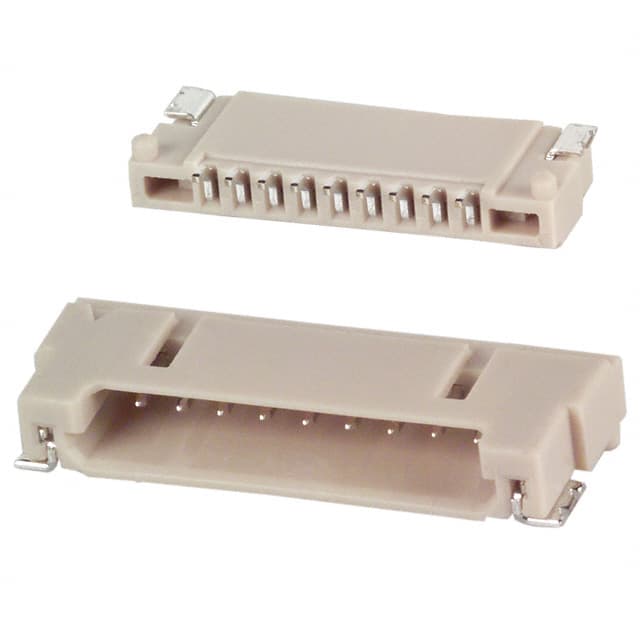

DF14-9P-1.25H(25)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 9P RA SMT TIN CONN HEADER 9POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA tin 9 way Hirose DF14 系列 1.25mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 1A

$4.1072

Details

DF14-2628SCF

Hirose Connector

Headers & Wire Housings 26-28 AWG SOCKET TIN CONTACTS REEL CONN TERM 26-28AWG CRIMP TIN Crimp contact AWG 26-28 DF14-2628SCF Contact; female; 26÷28AWG; DF14; tinned; crimped, on cable Hirose DF14 系列母压接接线端子, 压接, 镀锡触点

$0.1224

Details

DF14A-9P-1.25H(55)

Hirose Connector

Headers & Wire Housings 1.25MM SNG ROW HDR 9P RA SMT W/O BOSS CONN HEADER 9POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 9 way Hirose DF14 系列 1.25mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 1A

$4.5152

Details

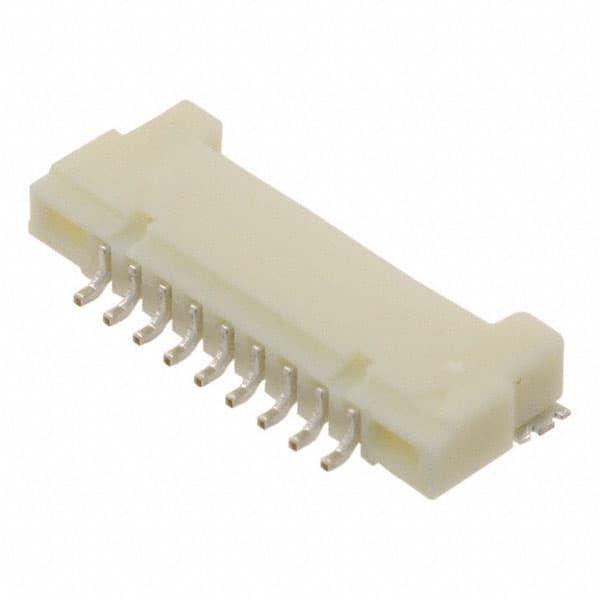

DF14A-9P-1.25H(26)

Hirose Connector

ヘッダ & ワイヤハウジング HDR 9POS 1.25MM R/A SMT CONN HEADER 9POS 1.25MM R/A SMD Headers & Wire Housings HDR 9POS 1.25MM R/A SMT

$4.3316

Details

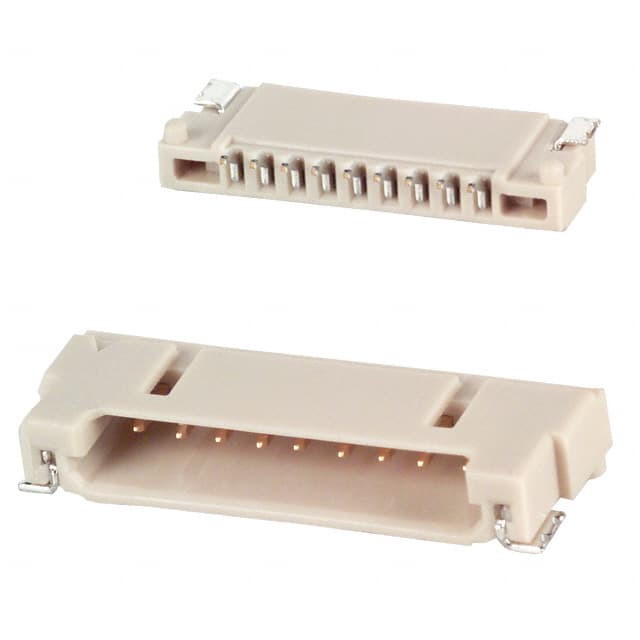

DF14-9P-1.25H(55)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 9P RA SMT GOLD CONN HEADER 9POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 9 way Hirose DF14 系列 1.25mm节距 9路 (1排) 直角 PCB 针座, 焊接端接, 1A

$3.6040

Details

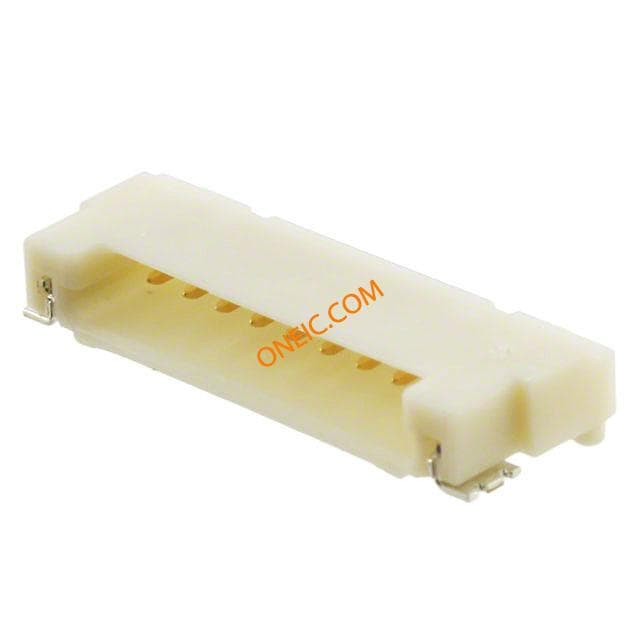

DF14-9P-1.25H(56)

Hirose Connector

Headers & Wire Housings HDR 9POS 1.25MM R/A SMT CONN HEADER 9POS 1.25MM R/A SMD

$5.0388

Details

DF14-2628SCFA

Hirose Connector

Headers & Wire Housings 26-28 AWG SOCKET GOLD CONTACTS REEL CONN TERM 26-28AWG CRIMP GOLD Crimp Contact gold plated 26-28 AWG reel DF14-2628SCFA Hirose DF14 系列母压接接线端子, 压接, 镀金触点

$0.1836

Details

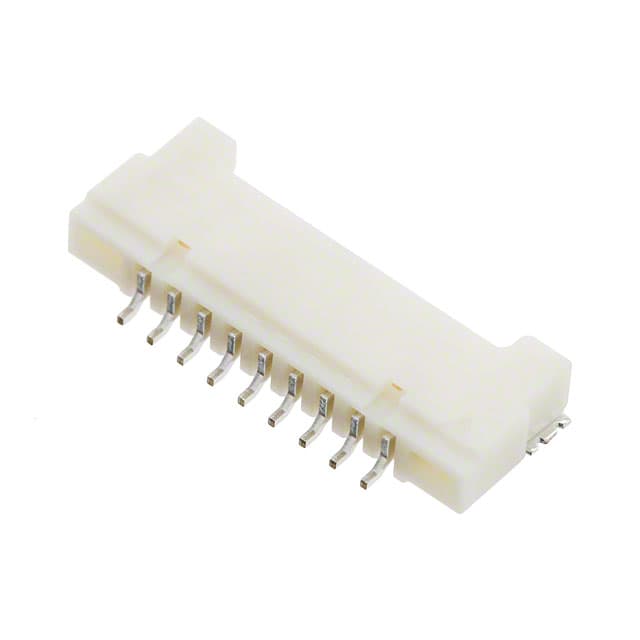

DF14A-9P-1.25H(56)
