DF14-7S-1.25C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 1.25MM SNG ROW SKT 7P HOUSING CONN SOCKET 7POS 1.25MM CRIMP Crimp Housing, 1.25mm pitch, 7 way Conn Housing SKT 7 POS 1.25mm Crimp ST Cable Mount Bag Hirose DF14 系列 1.25mm 节距 7 路直母电缆安装 PCB 壳体
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

Not Applicable

Electrical

Voltage Rating	150 V	Current Rating (Max)	1 A
Voltage - Supply (Min)	150VAC	Connector - Voltage Input	Crimp

Mechanical

Color	Beige	Depth	5.8mm
Pitch	0.049" (1.25mm)	Width	2.3mm
Height	2.3 mm	Length	10.7mm
Packaging	Bulk	Orientation	直
Contact Form	Female Socket	Contact Type	Female Socket
Housing Color	Beige	Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle	Contact Finish	Tin
Mounting Style	Wire	Number of Rows	1
Contact Material	Phosphor Copper	Housing Material	PA
Length - Overall	10.7 mm	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Number of Contacts	7
Contact Termination	Crimp	Number of Positions	7

Product Info

Note	Contacts Not Provided	Type	Socket Housing
Gender	Female	Series	DF14
DELETED	Compliant	Product Type	Wire Housings
Output Configuration	Free Hanging (In-Line)	For Use With/Related Products	Super Low Profile Crimping Connector

Environmental

Operating Temperature

-35C to 85C

Documents & Media

PDF Document

DF14 Series

PDF Document

e53800017.pdf

Similar Parts

DF14A-7P-1.25H(25)

Hirose Connector

Headers & Wire Housings 1.25MM SNG ROW HDR 7P RA SMT W/O BOSS CONN HEADER 7POS 1.25MM R/A SMD

$1.6184

Details

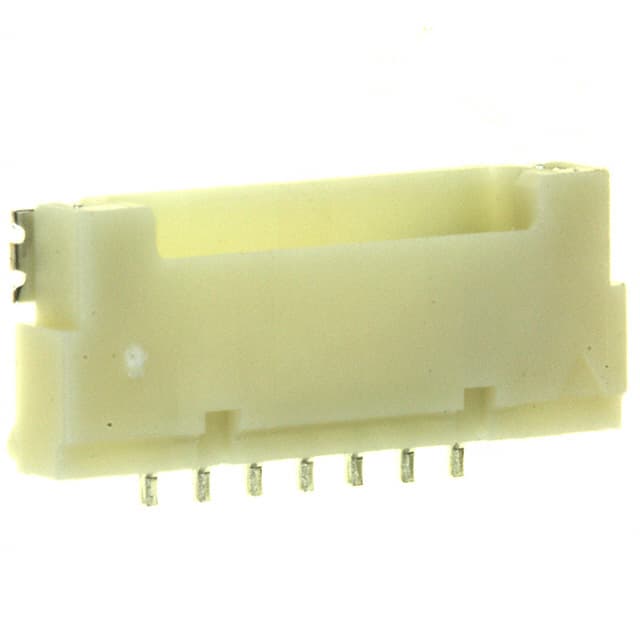

DF14-7P-1.25H(56)

Hirose Connector

Headers & Wire Housings HDR 7POS 1.25MM R/A SMT CONN HEADER 7POS 1.25MM R/A SMD

$4.2432

Details

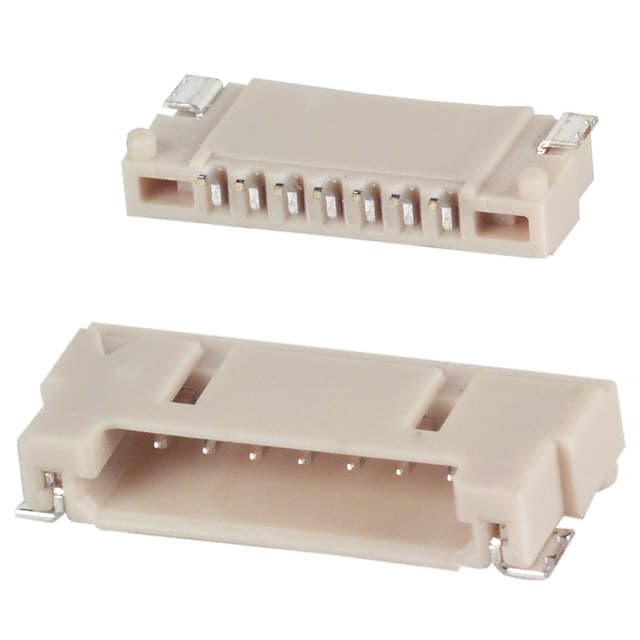

DF14-7P-1.25H(20)

Hirose Connector

Headers & Wire Housings Obsolete CONN HEADER 7POS 1.25MM R/A SMD

Details

DF14A-7P-1.25H(20)

Hirose Connector

Headers & Wire Housings Obsolete CONN HEADER 7POS 1.25MM R/A SMD

Details

DF14-7P-1.25H(25)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 7P RA SMT TIN CONN HEADER 7POS 1.25MM R/A SMD Hirose DF14 Series 1.25mm Pitch 7 Way 1 Row Right Angle PCB Header, Solder Termination, 1A Connector: wire-board; DF14; socket; male; horizontal; PIN:7 sale Hirose DF14 系列 1.25mm节距 7路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装

$6.4700

Details

DF14-3032SCF

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET TIN CONTACTS REEL CONN TERM 30-32AWG CRIMP TIN Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 30-32 AWG SOCKET TIN CONTACTS REEL DF14-3032SCF

$0.0735

Details

DF14-7P-1.25H(26)

Hirose Connector

ヘッダ & ワイヤハウジング HDR 7POS 1.25MM R/A SMT CONN HEADER 7POS 1.25MM R/A SMD Hirose DF14 Series 1.25mm Pitch 7 Way 1 Row Right Angle PCB Header, Solder Termination, 1A

$5.3312

Details

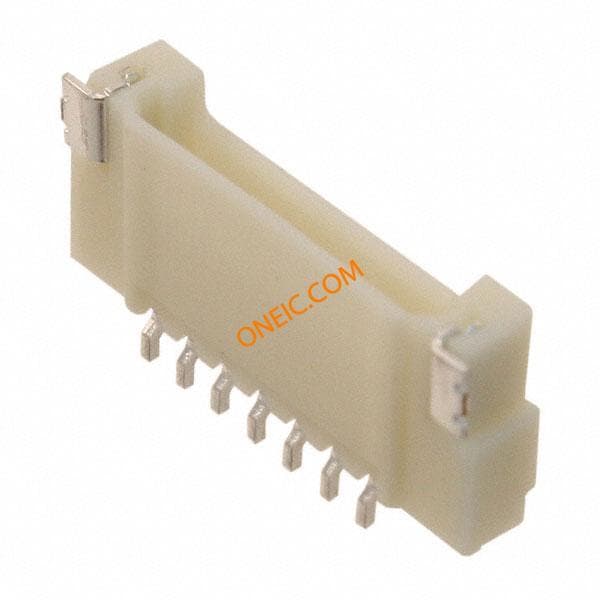

DF14A-7P-1.25H(26)

Hirose Connector

Headers & Wire Housings HDR 7POS 1.25MM R/A SMT CONN HEADER 7POS 1.25MM R/A SMD

$5.7120

Details

DF14-3032SCFA

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET GOLD CONTACTS REEL CONN TERM 30-32AWG CRIMP GOLD Crimp Contact gold plated 30-32 AWG reel Headers & Wire Housings 30-32 AWG SOCKET GOLD CONTACTS REEL DF14-3032SCFA Hirose DF14 系列母压接接线端子, 压接, 镀金触点

$0.1568

Details

DF14A-7P-1.25H(56)

Hirose Connector

Headers & Wire Housings HDR 7POS 1.25MM R/A SMT CONN HEADER 7POS 1.25MM R/A SMD Conn Shrouded Header HDR 7 POS 1.25mm Solder RA SMD Embossed T/R

$4.2432

Details

DF14A-7P-1.25H(55)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 7P RA SMT W/O BOSS CONN HEADER 7POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 7 way Hirose DF14 系列 1.25mm节距 7路 (1排) 直角 PCB 针座, 焊接端接, 1A

$1.7136

Details

DF14-2628SCF

Hirose Connector

Headers & Wire Housings 26-28 AWG SOCKET TIN CONTACTS REEL CONN TERM 26-28AWG CRIMP TIN Crimp contact AWG 26-28 DF14-2628SCF Contact; female; 26÷28AWG; DF14; tinned; crimped, on cable Hirose DF14 系列母压接接线端子, 压接, 镀锡触点

$0.1224

Details

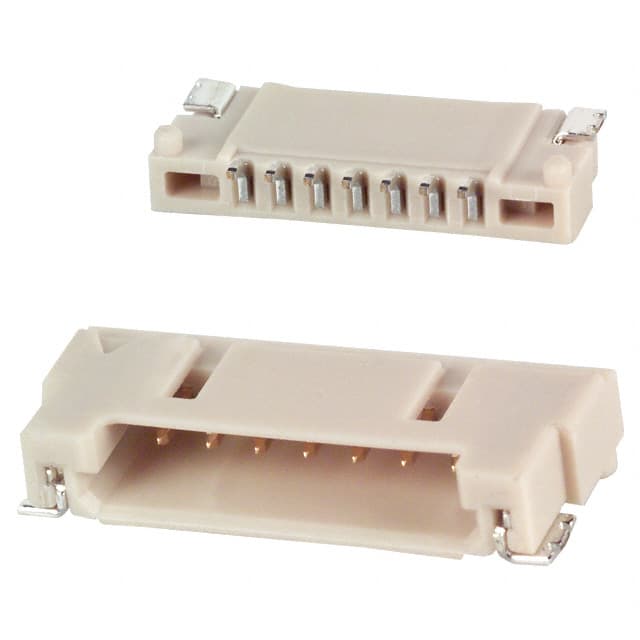

DF14-7P-1.25H(55)
