DF14-30S-1.25C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 1.25MM SNG ROW SKT 30P HOUSING CONN SOCKET 30POS 1.25MM CRIMP Crimp Housing, 1.25mm pitch, 30 way Connector, PCB-Board-to-Wire, 1.25mm Conn Housing SKT 30 POS 1.25mm Crimp ST Cable Mount Bag Hirose DF14 系列 1.25mm 节距 30 路直母电缆安装 PCB 壳体
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

Not Applicable

Electrical

Voltage Rating	150 V	Current Rating (Max)	1 A
Voltage - Supply (Min)	150VAC	Connector - Voltage Input	Crimp

Mechanical

Color	Beige	Depth	5.8mm
Pitch	0.049" (1.25mm)	Width	2.3mm
Height	2.3 mm	Length	39.45mm
Packaging	Bulk	Orientation	直
Weight (g):	0.05	Contact Form	Female Socket
Contact Type	Female Socket	Housing Color	Beige
Mounting Type	Free Hanging (In-Line)	Connector Type	Receptacle
Contact Finish	Tin	Mounting Style	Wire
Number of Rows	1	Contact Material	Phosphor Copper
Housing Material	PA	Length - Overall	39.45 mm
Termination Style	Crimp	1st Contact Gender	Socket (Female)
Number of Contacts	30	Contact Termination	Crimp
Number of Positions	30

Product Info

Name	塑壳	Note	Contacts Not Provided
Type	Socket Housing	Unit	PCS
Gender	Female	Series	DF14
DELETED	Compliant	Quantity	1000.0
Product Type	Wire Housings	Output Configuration	Free Hanging (In-Line)
Manufacturing Country	马来西亚/日本	Minimum Order Quantity	1
For Use With/Related Products	Super Low Profile Crimping Connector

Environmental

Operating Temperature

-35C to 85C

Documents & Media

PDF Document

DF14 Series

PDF Document

e53800017.pdf

Similar Parts

DF14-3032SCF

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET TIN CONTACTS REEL CONN TERM 30-32AWG CRIMP TIN Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 30-32 AWG SOCKET TIN CONTACTS REEL DF14-3032SCF

$0.0735

Details

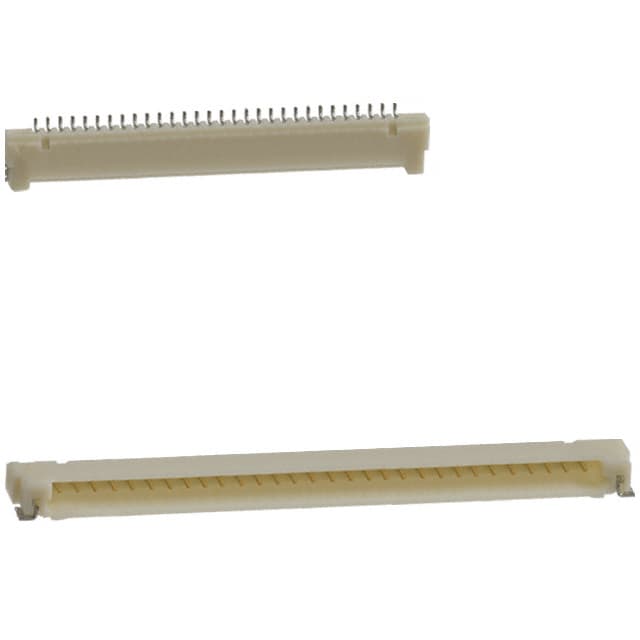

DF14A-30P-1.25H(55)

Hirose Connector

Headers & Wire Housings 1.25MM SNG ROW HDR 30P RA SMT W/O BOSS CONN HEADER 30POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 30 way Conn Shrouded Header HDR 30 POS 1.25mm Solder RA SMD Tube Hirose DF14 系列 1.25mm节距 30路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装

$10.2000

Details

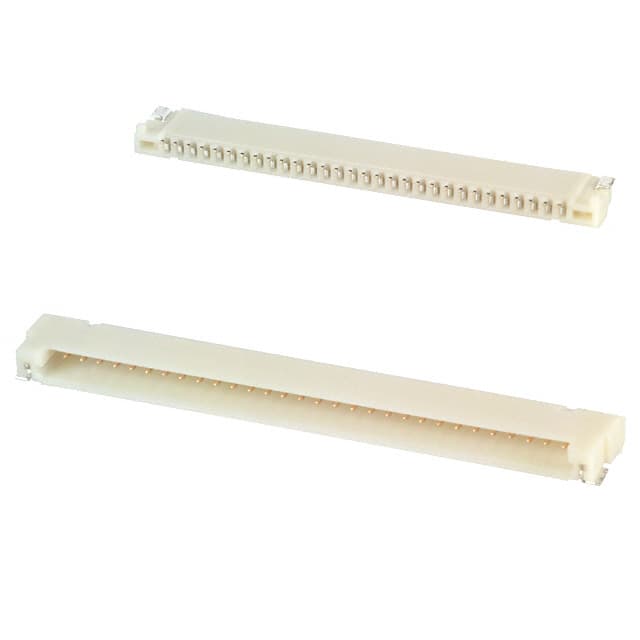

DF14-30P-1.25H(55)

Hirose Connector

Headers & Wire Housings 1.25MM SNG ROW HDR 30P RA SMT GOLD CONN HEADER 30POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 30 way Hirose DF14 系列 1.25mm节距 30路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装

$10.2000

Details

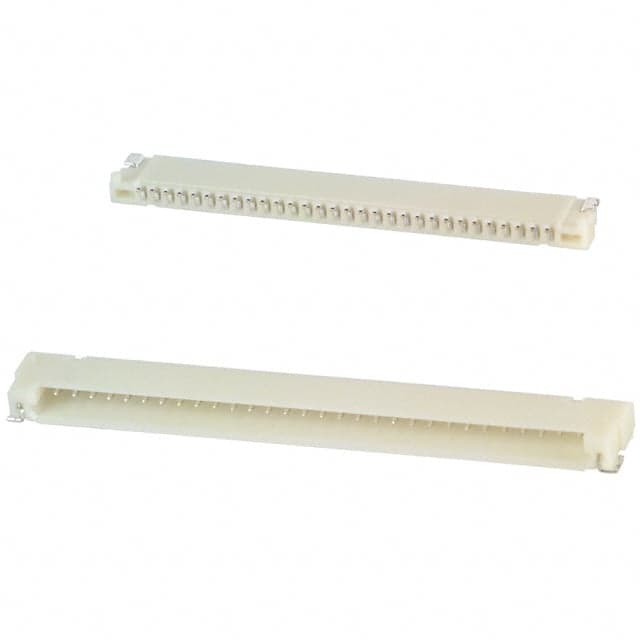

DF14-30P-1.25H(25)
