DF14-2S-1.25C
| Manufacturer | |
| Description | Headers & Wire Housings 1.25MM SNG ROW SKT 2P HOUSING CONN SOCKET 2POS 1.25MM CRIMP Connector, PCB-Board-to-Wire, 1.25mm Conn Housing SKT 2 POS 1.25mm Crimp ST Cable Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | Not Applicable | ||
Electrical
| Voltage Rating | 150 VAC | Switch Function | Unlatched |
| Current Rating (Max) | 1 A | Voltage - Supply (Min) | 150VAC |
Mechanical
| Color | Beige | Depth | 5.8mm |
| Pitch | 0.049" (1.25mm) | Width | 2.3mm |
| Height | 2.3 mm | Length | 4.45mm |
| Packaging | Bulk | Contact Type | Female Socket |
| Housing Color | Beige | Mounting Type | Free Hanging (In-Line) |
| Connector Type | Receptacle | Mounting Style | Free Hanging |
| Number of Rows | 1 | Housing Material | PA |
| Length - Overall | 4.45 mm | Termination Style | Crimp |
| 1st Contact Gender | Socket (Female) | Number of Contacts | 2 |
| Contact Termination | Crimp | Number of Positions | 2 |
Product Info
| Note | Contacts Not Provided | Type | Socket Housing |
| Gender | Female | Series | DF14 |
| DELETED | Compliant | Product Type | Wire Housings |
| For Use With/Related Products | Super Low Profile Crimping Connector | ||
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
Similar Parts
.jpg&w=3840&q=75)

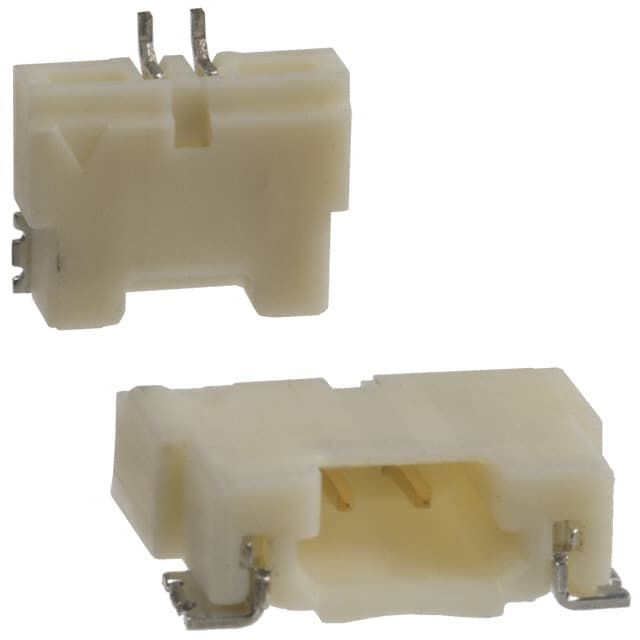

DF14A-2P-1.25H(55)
Hirose Connector
Headers & Wire Housings 1.25MM SNG ROW HDR 2P RA SMT W/O BOSS CONN HEADER 2POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 2 way Hirose DF14 系列 1.25mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 1A
.jpg&w=3840&q=75)

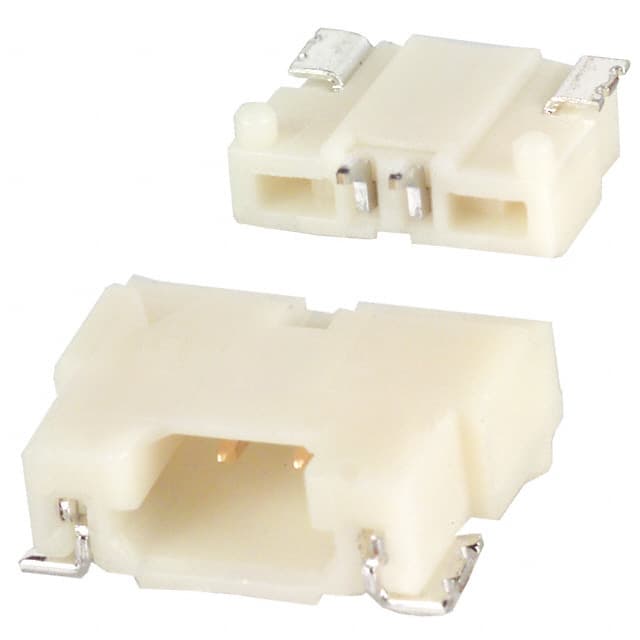

DF14-2P-1.25H(50)
Hirose Connector
Headers & Wire Housings Obsolete CONN HEADER 2POS 1.25MM R/A SMD
DF14-3032SCF
Hirose Connector
ヘッダ & ワイヤハウジング 30-32 AWG SOCKET TIN CONTACTS REEL CONN TERM 30-32AWG CRIMP TIN Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 30-32 AWG SOCKET TIN CONTACTS REEL DF14-3032SCF
DF14-2P-1.25H(55)
Hirose Connector
Headers & Wire Housings 1.25MM SNG ROW HDR 2P RA SMT GOLD CONN HEADER 2POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 2 way Conn Shrouded Header HDR 2 POS 1.25mm Solder RA SMD Tube Hirose DF14 系列 1.25mm节距 2路 (1排) 直角 PCB 针座, 焊接端接, 1A
DF14A-2P-1.25H(25)
Hirose Connector
ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 2P RA SMT W/O BOSS CONN HEADER 2POS 1.25MM R/A SMD
DF14A-2P-1.25H(56)
Hirose Connector
Headers & Wire Housings HDR 2POS 1.2MM R/A SMT CONN HEADER 2POS 1.25MM R/A SMD
DF14-3032SCFA
Hirose Connector
ヘッダ & ワイヤハウジング 30-32 AWG SOCKET GOLD CONTACTS REEL CONN TERM 30-32AWG CRIMP GOLD Crimp Contact gold plated 30-32 AWG reel Headers & Wire Housings 30-32 AWG SOCKET GOLD CONTACTS REEL DF14-3032SCFA Hirose DF14 系列 母 压接接线端子, 压接, 镀金触点
DF14-2628SCF
Hirose Connector
Headers & Wire Housings 26-28 AWG SOCKET TIN CONTACTS REEL CONN TERM 26-28AWG CRIMP TIN Crimp contact AWG 26-28 DF14-2628SCF Contact; female; 26÷28AWG; DF14; tinned; crimped, on cable Hirose DF14 系列 母 压接接线端子, 压接, 镀锡触点
.JPG&w=3840&q=75)

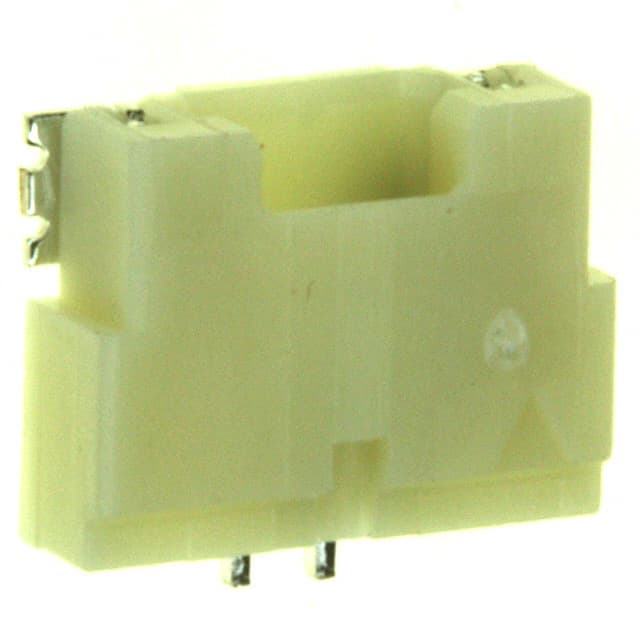

DF14A-2P-1.25H(26)
Hirose Connector
Headers & Wire Housings HDR 2POS 1.2MM R/A SMT CONN HEADER 2POS 1.25MM R/A SMD Conn Shrouded Header HDR 2 POS 1.25mm Solder RA SMD Embossed T/R
DF14-2628SCFA
Hirose Connector
Headers & Wire Housings 26-28 AWG SOCKET GOLD CONTACTS REEL CONN TERM 26-28AWG CRIMP GOLD Crimp Contact gold plated 26-28 AWG reel DF14-2628SCFA Hirose DF14 系列 母 压接接线端子, 压接, 镀金触点
.jpg&w=3840&q=75)

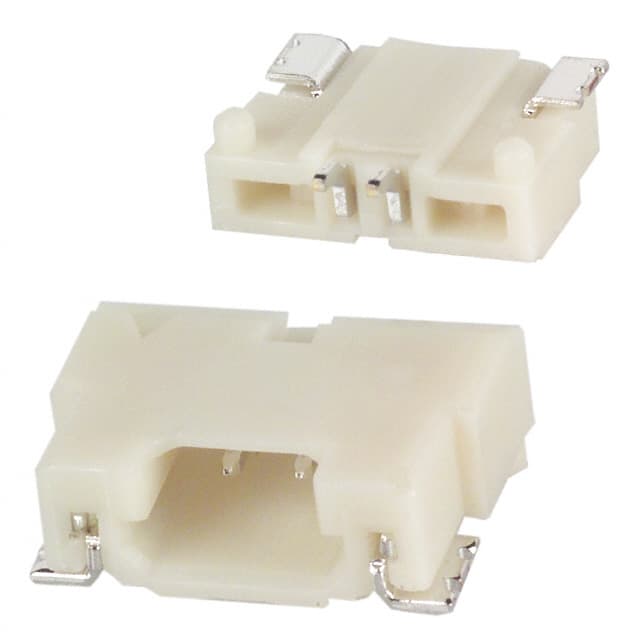

DF14-2P-1.25H(25)
