DF14-20S-1.25C

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 1.25MM SNG ROW SKT 20P HOUSING CONN SOCKET 20POS 1.25MM CRIMP Crimp Housing, 1.25mm pitch, 20 way Conn Housing SKT 20 POS 1.25mm Crimp ST Cable Mount Bag Hirose DF14 系列 1.25mm 节距 20 路直母电缆安装 PCB 壳体
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

Compliant

Electrical

Voltage Rating	150 VAC	Switch Function	Unlatched
Current Rating (Max)	1 A	Voltage - Supply (Min)	150VAC

Mechanical

Color	Beige	Depth	5.8mm
Pitch	0.049" (1.25mm)	Width	2.3mm
Height	2.3 mm	Length	26.95mm
Packaging	Bulk	Orientation	直
Weight (g):	1.6	Contact Type	Female Socket
Housing Color	Beige	Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle	Mounting Style	Free Hanging
Number of Rows	1	Housing Material	PA
Length - Overall	26.95 mm	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Number of Contacts	20
Contact Termination	Crimp	Number of Positions	20

Product Info

Name	塑壳	Note	Contacts Not Provided
Type	Socket Housing	Unit	PCS
Gender	Female	Series	DF14
DELETED	Compliant	Quantity	5000.0
Product Type	Wire Housings	Manufacturing Country	日本
Minimum Order Quantity	1	For Use With/Related Products	Super Low Profile Crimping Connector

Environmental

Operating Temperature

-35C to 85C

Documents & Media

PDF Document

DF14 Series

PDF Document

e53800017.pdf

Similar Parts

DF14-3032SCF

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET TIN CONTACTS REEL CONN TERM 30-32AWG CRIMP TIN Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 30-32 AWG SOCKET TIN CONTACTS REEL DF14-3032SCF

$0.0735

Details

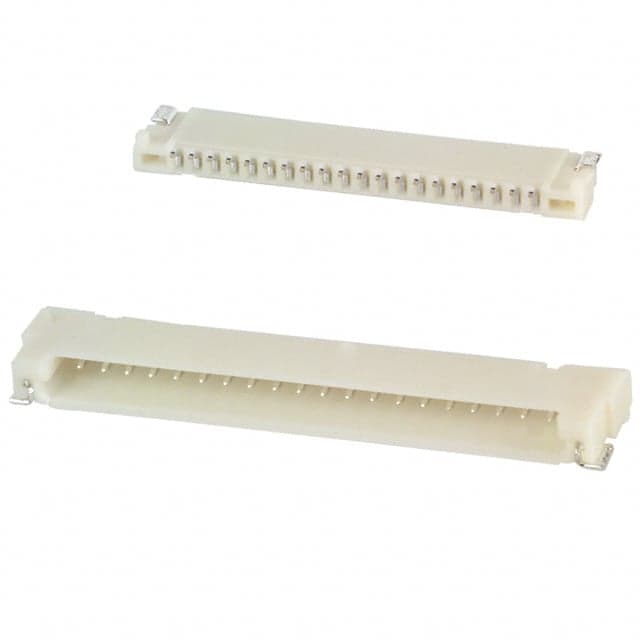

DF14-20P-1.25H(25)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 20P RA SMT TIN CONN HEADER 20POS 1.25MM R/A SMD Hirose DF14 Series 1.25mm Pitch 20 Way 1 Row Right Angle PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 20 POS 1.25mm Solder RA SMD HEADER,R/A,1.25MM,20WAY Hirose DF14 系列 1.25mm节距 20路 (1排) 直角 PCB 针座, 焊接端接, 1A DF14-20P-1.25H(26), 表面安装

$9.0600

Details

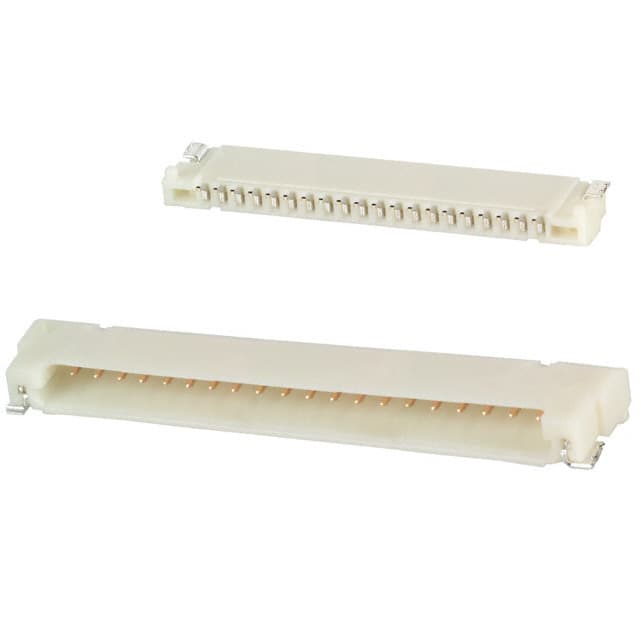

DF14-20P-1.25H(55)

Hirose Connector

Headers & Wire Housings 1.25MM SNG ROW HDR 20P RA SMT GOLD CONN HEADER 20POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 20 way Conn Shrouded Header HDR 20 POS 1.25mm Solder RA SMD Tube Hirose DF14 系列 1.25mm节距 20路 (1排) 直角 PCB 针座, 焊接端接, 1A

$49.4224

Details

DF14A-20P-1.25H(55)

Hirose Connector

Headers & Wire Housings 1.25MM SNG ROW HDR 20P RA SMT W/O BOSS CONN HEADER 20POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 20 way Conn Shrouded Header HDR 20 POS 1.25mm Solder RA SMD Tube Hirose DF14 系列 1.25mm节距 20路 (1排) 直角 PCB 针座, 焊接端接, 1A

$9.0600

Details

DF14-3032SCFA

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET GOLD CONTACTS REEL CONN TERM 30-32AWG CRIMP GOLD Crimp Contact gold plated 30-32 AWG reel Headers & Wire Housings 30-32 AWG SOCKET GOLD CONTACTS REEL DF14-3032SCFA Hirose DF14 系列母压接接线端子, 压接, 镀金触点

$0.1568

Details

DF14-2628SCF

Hirose Connector

Headers & Wire Housings 26-28 AWG SOCKET TIN CONTACTS REEL CONN TERM 26-28AWG CRIMP TIN Crimp contact AWG 26-28 DF14-2628SCF Contact; female; 26÷28AWG; DF14; tinned; crimped, on cable Hirose DF14 系列母压接接线端子, 压接, 镀锡触点

$0.1224

Details

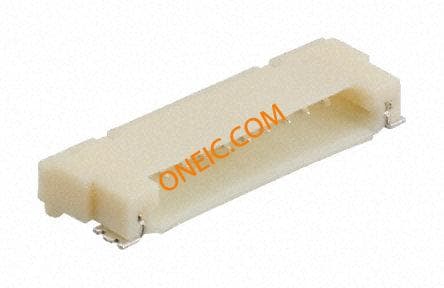

DF14-20P-1.25H(26)
