DF14-15S-1.25C

Manufacturer	Hirose Electric Co., Ltd.
Description	ヘッダ & ワイヤハウジング 1.25MM SNG ROW SKT 15P HOUSING CONN SOCKET 15POS 1.25MM CRIMP Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 1.25MM SNG ROW SKT 15P HOUSING Conn Housing SKT 15 POS 1.25mm Crimp ST Cable Mount Bag
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

Not Applicable

Electrical

Voltage Rating	150 V	Current Rating (Max)	1 A
Voltage - Supply (Min)	150VAC

Mechanical

Color	Beige	Depth	5.8mm
Pitch	0.049" (1.25mm)	Width	2.3mm
Height	2.3 mm	Length	20.7mm
Packaging	Bulk	Contact Type	Female Socket
Housing Color	Beige	Mounting Type	Free Hanging (In-Line)
Connector Type	Receptacle	Contact Finish	Tin
Mounting Style	Wire	Number of Rows	1
Contact Material	Phosphor Copper	Housing Material	PA
Length - Overall	20.7 mm	Termination Style	Crimp
1st Contact Gender	Socket (Female)	Number of Contacts	15
Contact Termination	Crimp	Number of Positions	15

Product Info

Note	Contacts Not Provided	Type	Socket Housing
Gender	Female	Series	DF14
DELETED	Compliant	Product Type	Wire Housings
For Use With/Related Products	Super Low Profile Crimping Connector

Environmental

Operating Temperature

-35C to 85C

Documents & Media

PDF Document

DF14 Series

PDF Document

e53800017.pdf

Similar Parts

DF14-3032SCF

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET TIN CONTACTS REEL CONN TERM 30-32AWG CRIMP TIN Connector, PCB-Board-to-Wire, 1.25mm Headers & Wire Housings 30-32 AWG SOCKET TIN CONTACTS REEL DF14-3032SCF

$0.0735

Details

DF14-15P-1.25H(25)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 15P RA SMT TIN CONN HEADER 15POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA tin 15 way Headers & Wire Housings 1.25MM SNG ROW HDR 15P RA SMT TIN Conn Shrouded Header HDR 15 POS 1.25mm Solder RA SMD Tube Hirose DF14 系列 1.25mm节距 15路 (1排) 直角 PCB 针座, 焊接端接, 1A DF14-15P-1.25H(26)

$12.0360

Details

DF14-3032SCFA

Hirose Connector

ヘッダ & ワイヤハウジング 30-32 AWG SOCKET GOLD CONTACTS REEL CONN TERM 30-32AWG CRIMP GOLD Crimp Contact gold plated 30-32 AWG reel Headers & Wire Housings 30-32 AWG SOCKET GOLD CONTACTS REEL DF14-3032SCFA Hirose DF14 系列母压接接线端子, 压接, 镀金触点

$0.1568

Details

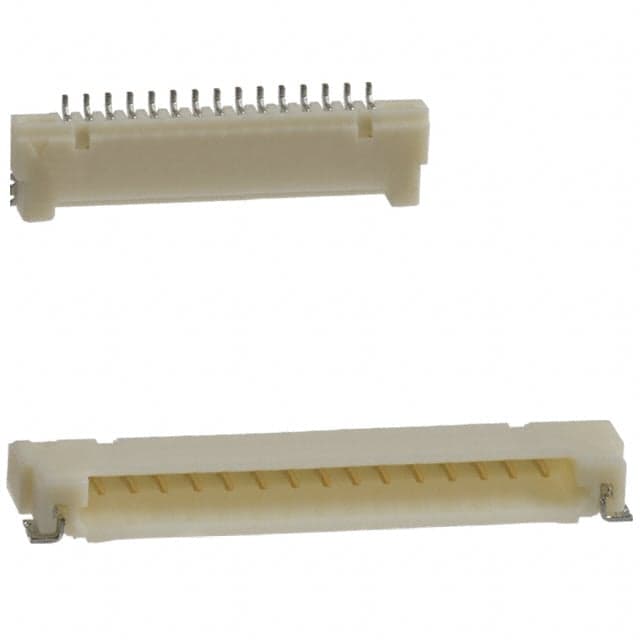

DF14A-15P-1.25H(25)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 15P RA SMT W/O BOSS CONN HEADER 15POS 1.25MM R/A SMD Headers & Wire Housings 1.25MM SNG ROW HDR 15P RA SMT W/O BOSS Conn Shrouded Header HDR 15 POS 1.25mm Solder RA SMD Tube

$6.1880

Details

DF14A-15P-1.25H(55)

Hirose Connector

ヘッダ & ワイヤハウジング 1.25MM SNG ROW HDR 15P RA SMT W/O BOSS CONN HEADER 15POS 1.25MM R/A SMD Header 1.25mm pitch SMT RA gold 15 way Headers & Wire Housings 1.25MM SNG ROW HDR 15P RA SMT W/O BOSS Hirose DF14 系列 1.25mm节距 15路 (1排) 直角 PCB 针座, 焊接端接, 1A , 表面安装

$6.8680

Details

DF14-2628SCF

Hirose Connector

Headers & Wire Housings 26-28 AWG SOCKET TIN CONTACTS REEL CONN TERM 26-28AWG CRIMP TIN Crimp contact AWG 26-28 DF14-2628SCF Contact; female; 26÷28AWG; DF14; tinned; crimped, on cable Hirose DF14 系列母压接接线端子, 压接, 镀锡触点

$0.1020

Details

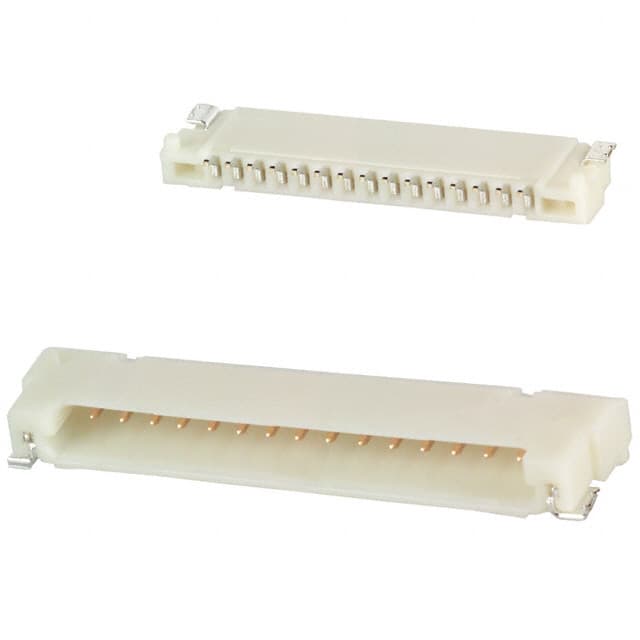

DF14-15P-1.25H(55)
