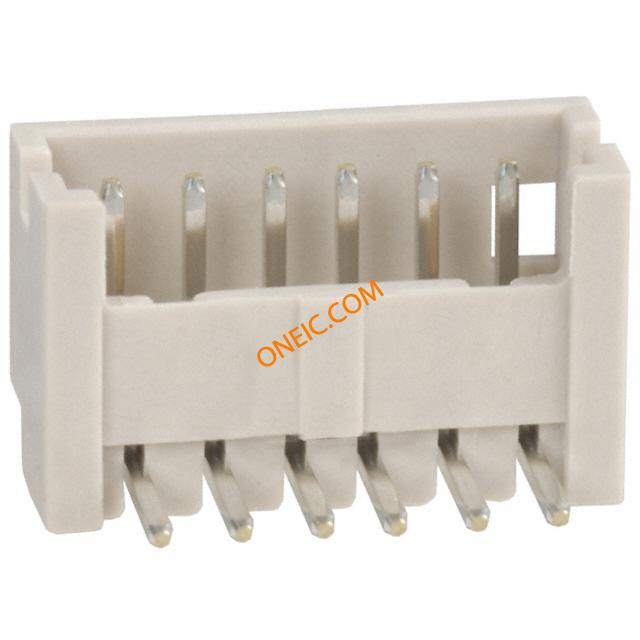

DF13-6P-1.25DS(20)
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 1.25MM RA PCB HEADER 6P THRU-HOLE TIN CONN HEADER 6POS 1.25MM R/A TIN Hirose DF13 Series 1.25mm Pitch 6 Way 1 Row Right Angle PCB Header, Solder Termination, 1A Headers & Wire Housings 1.25MM RA PCB HEADER 6P THRU-HOLE TIN Conn Shrouded Header HDR 6 POS 1.25mm Solder RA Thru-Hole Tube DF1390ªDIPheader,1row,6-way Pin header, angled Pitch1.25 mm Poles 6 DF13, DF13-6P-1.25DS(20), Hirose |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Standard Package | 52 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | Material Flammability Rating | UL 94 V-0 |
Electrical
| Voltage Rating | 150 V ac | Number of Poles | 6 |
| Current Rating (Max) | 1A | ||
Mechanical
| Color | Beige | Pitch | 0.049" (1.25mm) |
| Packaging | Tube | Body Color | 9.15 |
| Termination | Solder | Contact Type | Male Pin |
| Mounting Type | Through Hole, Right Angle | Connector Type | Header, Shrouded |
| Contact Finish | Tin | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyamide |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 6 | Number of Positions | 6 |
| 1st Connector Gender | Male | ||
Product Info
| Type | Shrouded Header | Series | DF13 |
| Features | Board Guide | Product Type | Headers |
| Amplifier Type | 6.25 | Connection Method | Wire-Board |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -30...+85 °C | ||
Documents & Media
PDF Document
