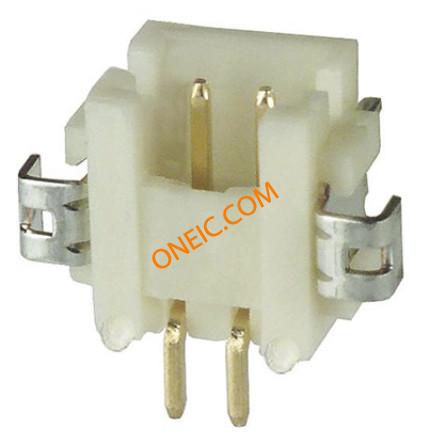

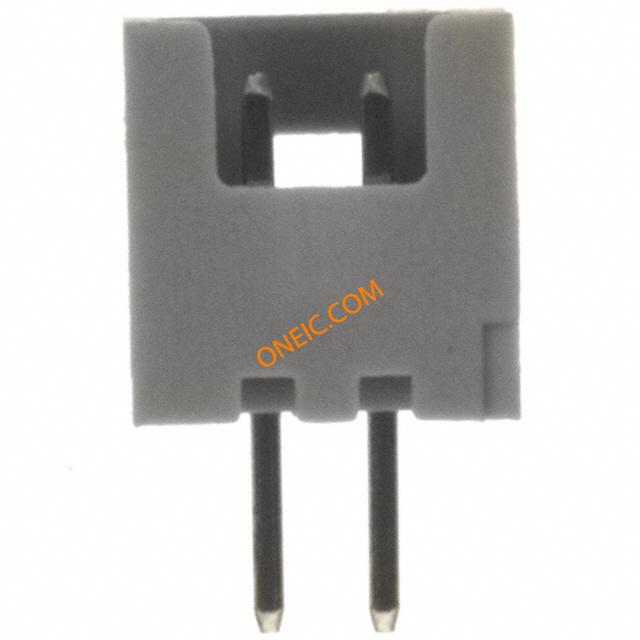

DF13-2P-1.25DSA(50)
| Manufacturer | |
| Description | Headers & Wire Housings 1.25MM V PIN HEADER 2P THRU HOLE GOLD CONN HEADER 2POS 1.25MM GOLD Hirose DF13 Series 1.25mm Pitch 2 Way 1 Row Straight PCB Header, Solder Termination, 1A Conn Shrouded Header HDR 2 POS 1.25mm Solder ST Thru-Hole Hirose DF13 系列 1.25mm节距 2路 (1排) 直 PCB 针座, 焊接端接, 1A |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Standard Package | 115 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | Compliant | ||
Electrical
| Voltage Rating | 150 V ac | Contact Resistance | 30 mohm |
| Current Rating (Max) | 1A | Voltage - Supply (Min) | 150VAC |
Mechanical
| Color | Beige | Depth | 3.4 mm |
| Pitch | 0.049" (1.25mm) | Height | 4.3 mm |
| Packaging | Tube | Orientation | 直 |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Beige | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Mounting Style | Through Hole | Number of Rows | 1 |
| Contact Material | Brass | Housing Material | Polyamide |
| Length - Overall | 4.15 mm | Termination Rows | 焊接 |
| Termination Style | Through Hole | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 2 | Number of Positions | 2 |
Product Info
| Type | Board to Wire | Gender | HDR |
| Series | DF13 | DELETED | Compliant |
| Coverage | 覆盖 | Features | Board Guide |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -35C to 85C | ||
Documents & Media
PDF Document
