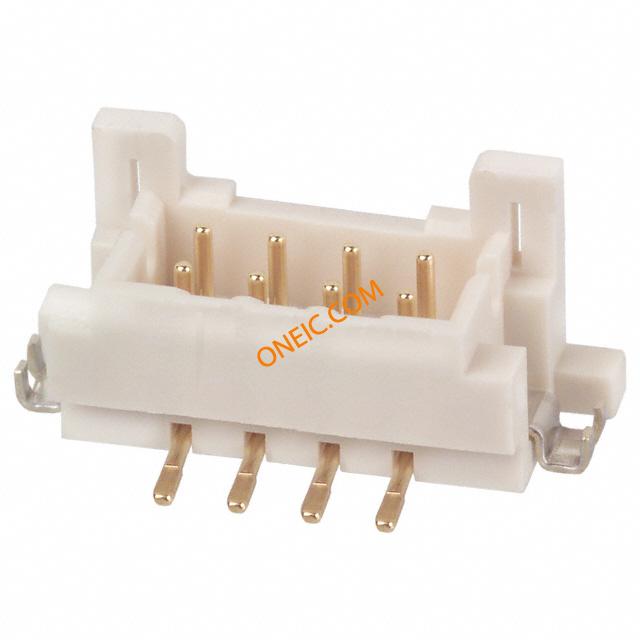

DF11G-8DP-2V(50)

Manufacturer	Hirose Electric Co., Ltd.
Description	ヘッダ & ワイヤハウジング 2MM V PCB HEADER 8P DR SMT GLD CONN HEADER 8POS 2MM SMD GOLD Headers & Wire Housings 2MM V PCB HEADER 8P DR SMT GLD Conn Shrouded Header HDR 8 POS 2mm Solder ST SMD
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	30
Factory Pack Quantity	1

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 V	Contact Resistance	30 mohm
Current Rating (Max)	2 A

Mechanical

Color	Beige	Depth	6.2 mm
Pitch	0.079" (2.00mm)	Height	7.2 mm
Packaging	Tube	Row Spacing	0.079" (2.00mm)
Termination	Solder	Contact Form	Male Pin
Contact Type	Male Pin	Lead Spacing	0.079" (2.00mm)
Housing Color	Beige	Mounting Type	Surface Mount
Connector Type	Header, Shrouded	Contact Finish	Gold
Fastening Type	Detent Lock	Mounting Style	Surface Mount
Number of Rows	2	Contact Material	Brass
Housing Material	Polyamide	Length - Overall	15.5 mm
Termination Style	SMD	Number of Contacts	8
Number of Positions	8	Number of Positions/Bay/Row	All

Product Info

Type	Shrouded	Gender	HDR
Series	DF11	DELETED	Compliant
Features	Board Guide	Main Purpose	Board Guide
Product Type	Headers	Output Configuration	Surface Mount
Number of Positions Loaded	All

Environmental

Operating Temperature

-30C to 85C

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf
