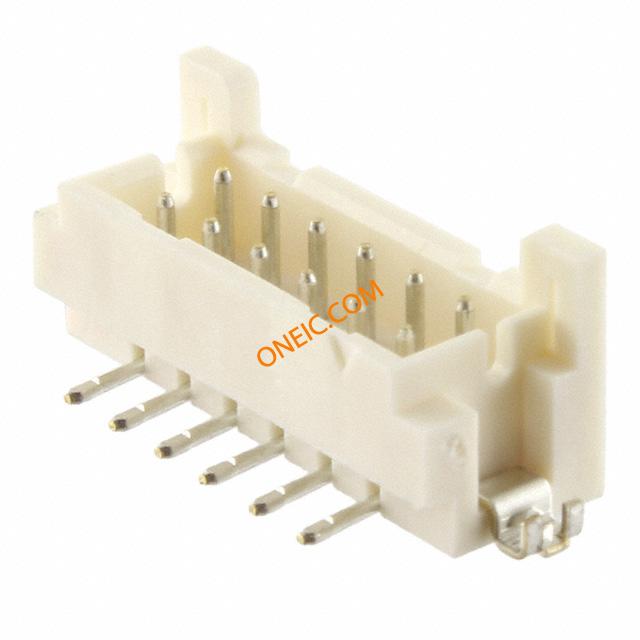

DF11CZ-12DP-2V(27)

Manufacturer	Hirose Electric Co., Ltd.
Description	ヘッダ & ワイヤハウジング 12P STRT HEADER SMT,BD MNT SN MALE CONN HEADER 102OS 2MM SMD TIN Hirose DF11 Series 2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 2A Headers & Wire Housings 12P STRT HEADER SMT,BD MNT SN MALE Conn Shrouded Header HDR 12 POS 2mm Solder ST SMD Embossed T/R DF11PinHeader,SMT,Vertical,2mm,12w Pin header, straight, SMD Pitch2 mm Poles 2 x 6 DF11, DF11CZ-12DP-2V(27), Hirose Hirose DF11 系列 2mm节距 12路 (2排) 直 PCB 针座, 焊接端接, 2A , 表面安装
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	500
Factory Pack Quantity	500

Compliance

RoHS

Lead free / RoHS Compliant

Material Flammability Rating

UL 94 V-0

Electrical

Voltage Rating	250 V	Number of Poles	2 x 6
Contact Resistance	30 mohm	Current Rating (Max)	2A
Insulation Resistance	1000 MOhms

Mechanical

Color	Black	Depth	6.2 mm
Pitch	0.079" (2.00mm)	Height	7.2 mm
Packaging	Tape & Reel (TR)	Body Color	16.5
Orientation	直	Row Spacing	0.079" (2.00mm)
Termination	Solder	Contact Form	Male Pin
Contact Type	Male Pin	Lead Spacing	0.079" (2.00mm)
Housing Color	Beige	Mounting Type	Surface Mount
Connector Type	Header, Shrouded	Contact Finish	Tin
Fastening Type	Detent Lock	Mounting Style	Surface Mount
Number of Rows	2	Contact Material	Tin Plated Brass
Housing Material	Polyamide (PA)	Length - Overall	19.5 mm
Termination Rows	焊接	Termination Style	SMD
1st Contact Gender	Pin (Male)	Number of Contacts	12
Number of Positions	12	1st Connector Gender	Male
Number of Positions/Bay/Row	All

Product Info

Type	Shrouded Header	Gender	HDR
Series	DF11	DELETED	Compliant
Coverage	覆盖	Features	Solder Retention
Main Purpose	Solder Retention	Product Type	Headers
Amplifier Type	10	Connection Method	Wire-Board
Output Configuration	Surface Mount	Number of Positions Loaded	All

Environmental

Operating Temperature

- 30 C to + 85 C

Documents & Media

PDF Document

HiroseDF11series.pdf
