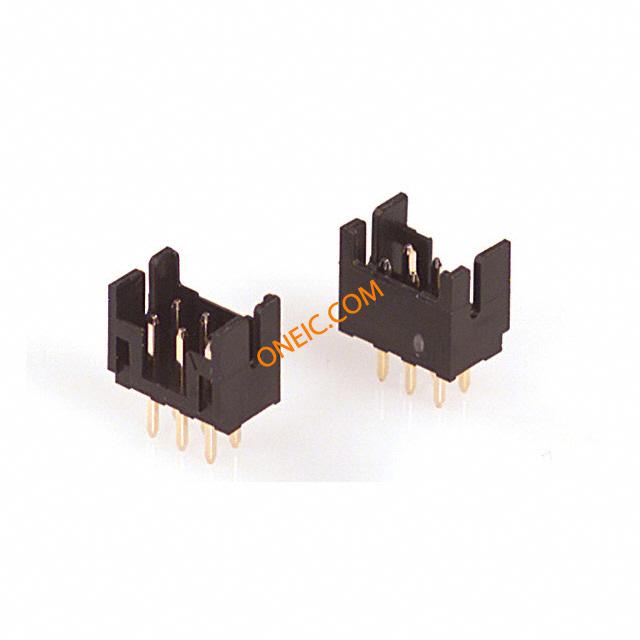

DF11-6DP-2DSA(01)

Manufacturer	Hirose Electric Co., Ltd.
Description	ヘッダ & ワイヤハウジング 2MM V PCB HEADER 6P DR THRU-HOLE GLD CONN HEADER 6POS 2MM PCB GOLD Headers & Wire Housings 2MM V PCB HEADER 6P DR THRU-HOLE GLD Conn Shrouded Header HDR 6 POS 2mm Solder ST Thru-Hole Bag
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 V	Contact Resistance	30 mohm
Current Rating (Max)	2 A

Mechanical

Color	Black	Depth	5 mm
Pitch	0.079" (2.00mm)	Height	6.6 mm
Packaging	Bulk	Row Spacing	0.079" (2.00mm)
Termination	Solder	Contact Type	Male Pin
Housing Color	Black	Mounting Type	Through Hole
Connector Type	Header, Shrouded	Contact Finish	Gold
Fastening Type	Detent Lock	Mounting Style	Through Hole
Number of Rows	2	Contact Material	Brass
Housing Material	Polyamide	Length - Overall	8 mm
Termination Style	Through Hole	Number of Contacts	6
Number of Positions	6	Contact Length - Mating	0.118" (3.00mm)

Product Info

Type	Shrouded	Gender	HDR
Series	DF11	DELETED	Compliant
Product Type	Headers	Number of Positions Loaded	All

Environmental

Operating Temperature

-30C to 85C

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf
