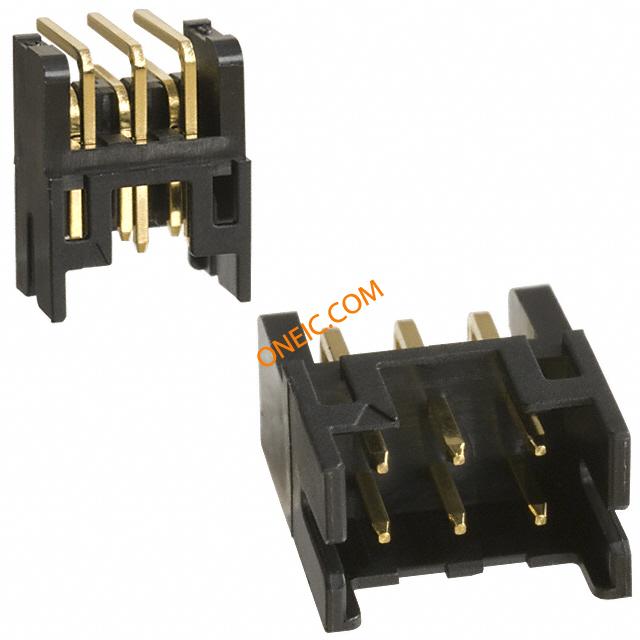

DF11-6DP-2DS(52)

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2MM R/A PCB HEADER 6P DR THRU-HOLE GLD CONN HEADER 6POS 2MM R/A GOLD Box pin Header 2mm pitch RA gold 3+3 way Conn Shrouded Header HDR 6 POS 2mm Solder RA Thru-Hole Tube Hirose DF11 系列 2mm节距 6路 (2排) 直角 PCB 针座, 焊接端接, 2A
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	61
Factory Pack Quantity	1

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 V	Contact Resistance	30 mohm
Current Rating (Max)	2 A

Mechanical

Color	Black	Depth	10 mm
Pitch	2 mm	Height	5 mm
Length	8 mm	Packaging	Tube
Orientation	直角	Row Spacing	0.079" (2.00mm)
Termination	Solder	Contact Type	Male Pin
Housing Color	Black	Mounting Type	Right
Connector Type	Header, Shrouded	Contact Finish	Gold
Fastening Type	Detent Lock	Mounting Style	Through Hole
Number of Rows	2	Contact Material	Brass
Housing Material	Polyamide	Length - Overall	8 mm
Termination Rows	焊接	Termination Style	Solder Pin
Number of Contacts	6	Number of Positions	6
Contact Length - Mating	0.118" (3.00mm)

Product Info

Type	Shrouded Header	Gender	HDR
Series	DF11	DELETED	Compliant
Coverage	覆盖	Product Type	Headers - Shrouded
Number of Positions Loaded	All

Environmental

Operating Temperature

-30C to 85C

Documents & Media

PDF Document

e54305002.pdf

PDF Document

DF11 Series
