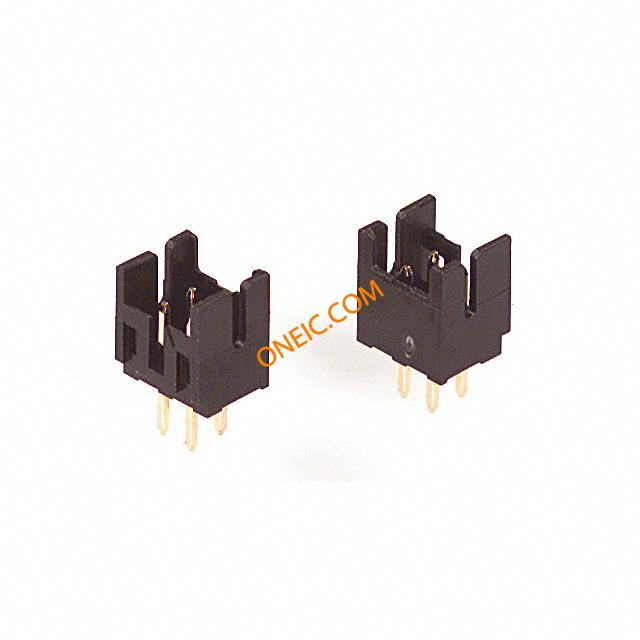

DF11-4DP-2DSA(01)
| Manufacturer | |
| Description | ヘッダ & ワイヤハウジング 2MM V PCB HEADER 4P DR THRU-HOLE GLD CONN HEADER 4POS 2MM PCB GOLD Headers & Wire Housings 2MM V PCB HEADER 4P DR THRU-HOLE GLD Conn Shrouded Header HDR 4 POS 2mm Solder ST Thru-Hole Bag |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Contact Resistance | 30 mohm |
| Current Rating (Max) | 2 A | ||
Mechanical
| Color | Black | Depth | 5 mm |
| Pitch | 0.079" (2.00mm) | Height | 6.6 mm |
| Packaging | Bulk | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Through Hole |
| Connector Type | Header, Shrouded | Contact Finish | Gold |
| Fastening Type | Detent Lock | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polyamide | Length - Overall | 6 mm |
| Termination Style | Through Hole | Number of Contacts | 4 |
| Number of Positions | 4 | Contact Length - Mating | 0.118" (3.00mm) |
Product Info
| Type | Shrouded | Gender | HDR |
| Series | DF11 | DELETED | Compliant |
| Product Type | Headers | Number of Positions Loaded | All |
Environmental
| Operating Temperature | -30C to 85C | ||
Documents & Media
PDF Document
PDF Document
Similar Parts
.jpg&w=3840&q=75)

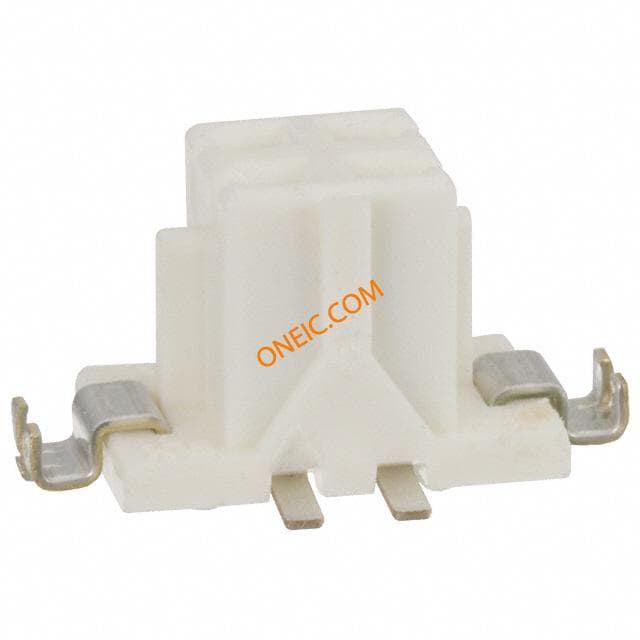

DF11Z-4DS-2V(20)
