点击放大查看

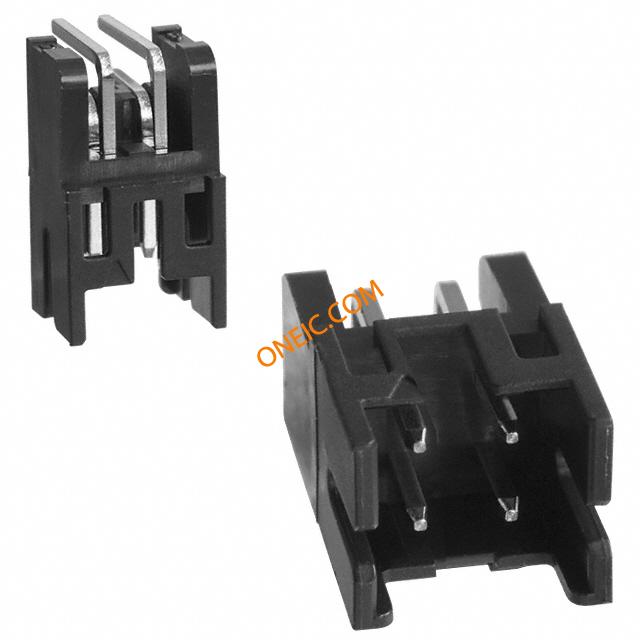

DF11-4DP-2DS(24)
| Manufacturer | |
| Description | Headers & Wire Housings 2MM R/A PCB HEADER 4P DR THRU-HOLE TIN CONN HEADER 4POS 2MM RT ANG TIN Hirose DF11 Series 2mm Pitch 4 Way 2 Row Right Angle PCB Header, Solder Termination, 2A Conn Shrouded Header HDR 4 POS 2mm Solder RA Thru-Hole Tube DF11R/APinhdr,ThroughHole,4w Hirose DF11 系列 2mm节距 4路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔 |
| Category |
对参数有疑问？问 AI 助手
Business
| Product Category | Headers & Wire Housings | Standard Package | 81 |
| Factory Pack Quantity | 1 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Contact Resistance | 30 mohm |
| Current Rating (Max) | 2 A | ||
Mechanical
| Color | Black | Depth | 10 mm |
| Pitch | 2 mm | Height | 5 mm |
| Length | 6 mm | Packaging | Tube |
| Orientation | 直角 | Row Spacing | 0.079" (2.00mm) |
| Termination | Solder | Contact Type | Male Pin |
| Housing Color | Black | Mounting Type | Right |
| Connector Type | Header, Shrouded | Contact Finish | Tin |
| Fastening Type | Detent Lock | Mounting Style | Through Hole |
| Number of Rows | 2 | Contact Material | Brass |
| Housing Material | Polyamide | Length - Overall | 6 mm |
| Termination Rows | 焊接 | Termination Style | Solder Pin |
| Number of Contacts | 4 | Number of Positions | 4 |
| Contact Length - Mating | 0.118" (3.00mm) | ||
Product Info
| Type | Shrouded Header | Gender | HDR |
| Series | DF11 | DELETED | Compliant |
| Coverage | 覆盖 | Product Type | Headers - Shrouded |
| Number of Positions Loaded | All | ||
Environmental
| Operating Temperature | -30C to 85C | ||
Documents & Media
PDF Document
PDF Document
