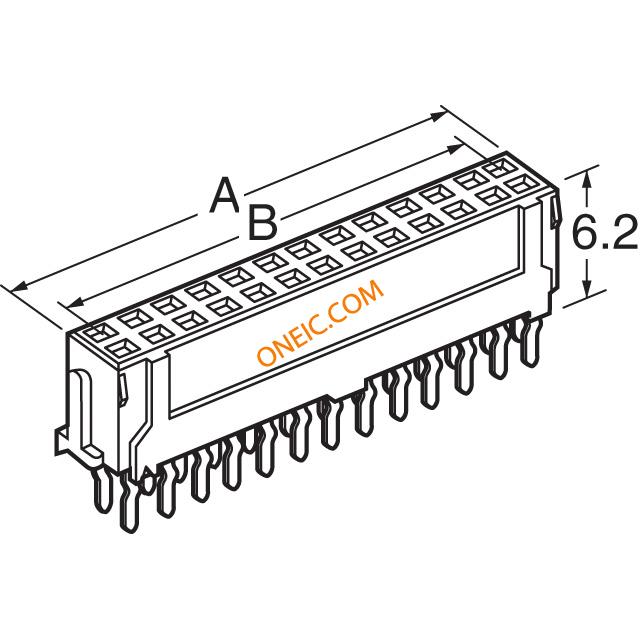

DF11-26DS-2DSA(05)

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2MM V PCB RECEPTACLE 26P DR THRU-HOLE TIN CONN RECEPT 26POS 2MM PCB TIN Hirose DF11 Series 2mm Pitch 26 Way 2 Row Straight PCB Header, Solder Termination, 2A PCB socket, straight Pitch2 mm Poles 2 x 13 DF11, DF11-26DS-2DSA(05), Hirose Hirose DF11 系列 2mm节距 26路 (2排) 直 PCB 针座, 焊接端接, 2A , 通孔
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

Compliant

Material Flammability Rating

UL 94 V-0

Electrical

Voltage Rating	250 V	Number of Poles	2 x 13
Current Rating (Max)	2A

Mechanical

Color	Black	Pitch	0.079" (2.00mm)
Packaging	Bulk	Body Color	24
Orientation	直	Row Spacing	0.079" (2.00mm)
Termination	Press-Fit	Contact Form	Female Socket
Contact Type	Female Socket	Lead Spacing	0.079" (2.00mm)
Mounting Type	Through Hole	Connector Type	Receptacle
Contact Finish	Tin	Number of Rows	2
Contact Material	Brass	Housing Material	Polyamide (PA/Nylon)
Termination Rows	焊接	Termination Style	Through Hole
1st Contact Gender	Socket (Female)	Number of Contacts	26
Number of Positions	26	1st Connector Gender	Female
Number of Positions/Bay/Row	All

Product Info

Type	Shrouded Header	Series	DF11
Coverage	覆盖	Amplifier Type	28
Connection Method	Board-Board	Output Configuration	Through Hole
Number of Positions Loaded	All

Environmental

Operating Temperature

-30...+85 °C

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf
