DF11-12DP-2DSA(24)

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 12P STRT HEADER THRU HL,BD MNT,SN CONN HEADER 12POS 2MM PCB TIN Hirose DF11 Series 2mm Pitch 12 Way 2 Row Straight PCB Header, Solder Termination, 2A Pin header, straight Pitch2 mm Poles 2 x 6 DF11, DF11-12DP-2DSA(24), Hirose Hirose DF11 系列 12路 2mm节距 (2排) 直 PCB 针座 DF11-12DP-2DSA(08), 焊接端接, 2A, 通孔
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	34
Factory Pack Quantity	1

Compliance

RoHS

Compliant

Material Flammability Rating

UL 94 V-0

Electrical

Voltage Rating	250 V ac	Number of Poles	2 x 6
Current Rating (Max)	2A

Mechanical

Color	Black	Pitch	0.079" (2.00mm)
Packaging	Tube	Body Color	10
Orientation	直	Row Spacing	0.079" (2.00mm)
Termination	Solder	Contact Type	Male Pin
Mounting Type	Through Hole	Connector Type	Header, Shrouded
Contact Finish	Tin	Fastening Type	Detent Lock
Number of Rows	2	Contact Material	Brass
Housing Material	Polyamide (PA/Nylon)	Termination Rows	焊接
Termination Style	Through Hole	1st Contact Gender	Pin (Male)
Number of Contacts	12	Number of Positions	12
1st Connector Gender	Male	Contact Length - Mating	0.118" (3.00mm)

Product Info

Type	Shrouded Header	Series	DF11
Coverage	覆盖	Product Type	Receptacles / Sockets - Housings
Amplifier Type	14	Connection Method	Wire-Board
Number of Positions Loaded	All

Environmental

Operating Temperature

-30...+85 °C

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf

Similar Parts

DF11-12DS-2C

Hirose Connector

ヘッダ & ワイヤハウジング 2MM RECEPT HOUSING 12P DUALROW CRIMP CONN SOCKET 12POS 2MM DUAL CRIMP DF11 Crimp Housing, 12w, 2mm Headers & Wire Housings 2MM RECEPT HOUSING 12P DUALROW CRIMP Conn Housing PL 12 POS 2mm Crimp ST Cable Mount Bag Connector: wire-board; DF11; plug; female; w/o terminals; PIN:12 Crimp housing Pitch2 mm Poles 2 x 6 DF11, DF11-12DS-2C, Hirose Hirose DF11 系列 2 行 2mm 节距 12 路直母电缆安装 PCB 壳体

$0.5304

Details

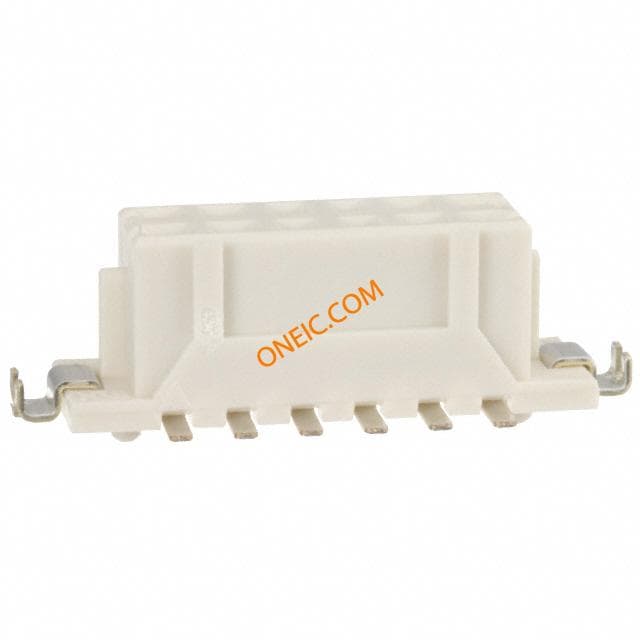

DF11Z-12DS-2V(50)

Hirose Connector

Headers & Wire Housings 2MM V PCB RECEPTACLE 12P DR SMT GLD CONN RECEPT 12POS 2MM SMD GOLD

$6.3716

Details

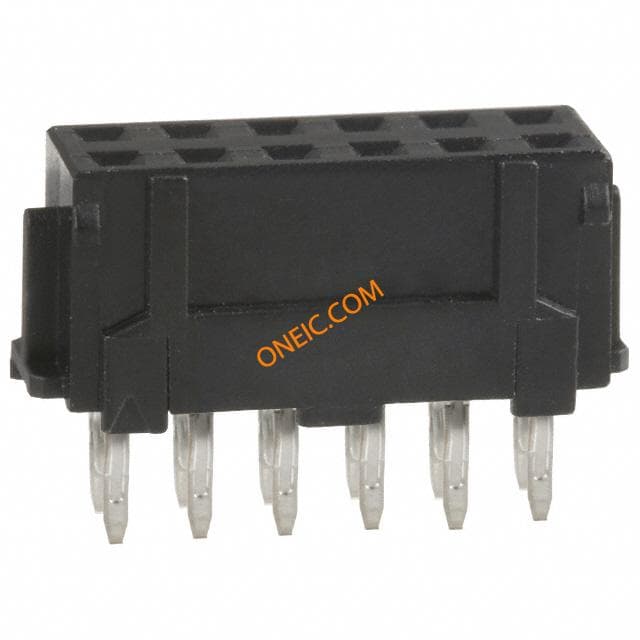

DF11-12DS-2DSA(06)
