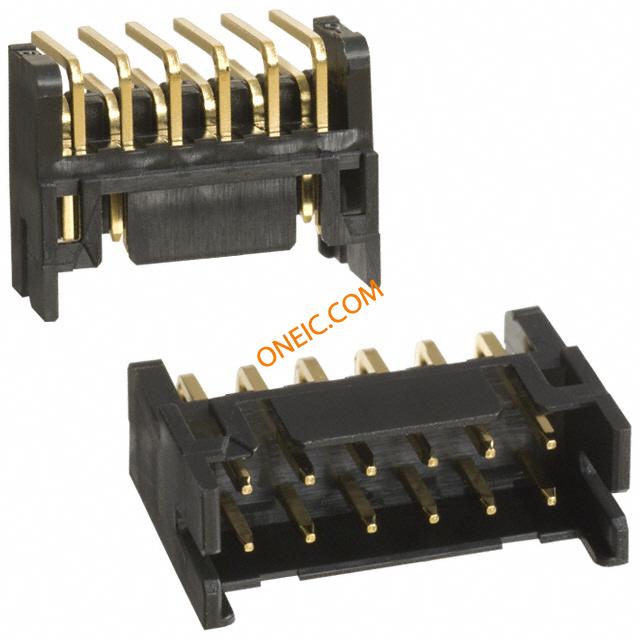

DF11-12DP-2DS(52)

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2MM R/A PCB HEADER 12P DR THRU-HOLE GLD CONN HEADER 12POS 2MM R/A GOLD Box pin Header 2mm pitch RA gold 6+6 way Conn Shrouded Header HDR 12 POS 2mm Solder RA Thru-Hole Tube Hirose DF11 系列 2mm节距 12路 (2排) 直角 PCB 针座, 焊接端接, 2A , 通孔
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	34
Factory Pack Quantity	1

Compliance

RoHS

Compliant

Electrical

Voltage Rating	250 V ac	Contact Resistance	30 mohm
Current Rating (Max)	2A

Mechanical

Color	Black	Depth	10 mm
Pitch	0.079" (2.00mm)	Height	5 mm
Packaging	Tube	Orientation	直角
Row Spacing	0.079" (2.00mm)	Termination	Solder
Contact Type	Male Pin	Housing Color	Black
Mounting Type	Through Hole, Right Angle	Connector Type	Header, Shrouded
Contact Finish	Gold	Fastening Type	Detent Lock
Mounting Style	Through Hole	Number of Rows	2
Contact Material	Brass	Housing Material	Polyamide
Length - Overall	14 mm	Termination Rows	焊接
Termination Style	Through Hole	Number of Contacts	12
Number of Positions	12	Contact Length - Mating	0.118" (3.00mm)

Product Info

Type	Shrouded Header	Gender	HDR
Series	DF11	DELETED	Compliant
Coverage	覆盖	Product Type	Headers
Number of Positions Loaded	All

Environmental

Operating Temperature

-30C to 85C

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf

Similar Parts

DF11-12DS-2C

Hirose Connector

ヘッダ & ワイヤハウジング 2MM RECEPT HOUSING 12P DUALROW CRIMP CONN SOCKET 12POS 2MM DUAL CRIMP DF11 Crimp Housing, 12w, 2mm Headers & Wire Housings 2MM RECEPT HOUSING 12P DUALROW CRIMP Conn Housing PL 12 POS 2mm Crimp ST Cable Mount Bag Connector: wire-board; DF11; plug; female; w/o terminals; PIN:12 Crimp housing Pitch2 mm Poles 2 x 6 DF11, DF11-12DS-2C, Hirose Hirose DF11 系列 2 行 2mm 节距 12 路直母电缆安装 PCB 壳体

$0.5304

Details

DF11Z-12DS-2V(50)

Hirose Connector

Headers & Wire Housings 2MM V PCB RECEPTACLE 12P DR SMT GLD CONN RECEPT 12POS 2MM SMD GOLD

$6.3716

Details

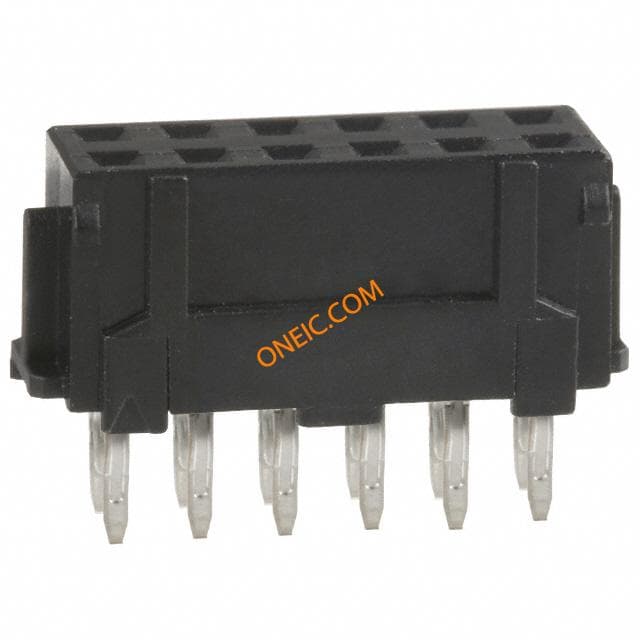

DF11-12DS-2DSA(06)
