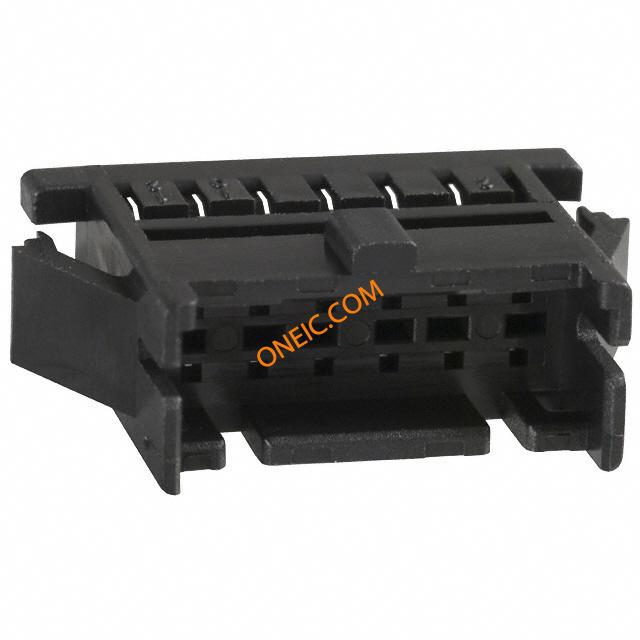

DF11-12DEP-2C
| Manufacturer | |
| Description | Headers & Wire Housings 2MM PLUG HOUSING 12P DUAL ROW CRIMP CONN PLUG HOUSING 12POS 2MM Conn Housing RCP 12 POS 2mm Crimp ST Panel Mount Bag |
| Category |
Business
| Product Category | Headers & Wire Housings | Standard Package | 100 |
| Factory Pack Quantity | 100 | ||
Compliance
| RoHS | RoHS Compliant | ||
Electrical
| Voltage Rating | 250 V | Current Rating (Max) | 2 A |
| Voltage - Supply (Min) | 250VAC | ||
Mechanical
| Color | Black | Depth | 13 mm |
| Pitch | 0.079" (2.00mm) | Height | 6.9 mm |
| Packaging | Bulk | Wire Gauge | 22-30 AWG |
| Row Spacing | 0.079" (2.00mm) | Weight (g): | 0.745 |
| Contact Type | Male Pin | Housing Color | Black |
| Mounting Type | Panel Mount, Snap-In | Connector Type | Plug |
| Mounting Style | Wire | Number of Rows | 2 |
| Housing Material | Polyamide | Length - Overall | 19 mm |
| Termination Style | Crimp | 1st Contact Gender | Pin (Male) |
| Number of Contacts | 12 | Contact Termination | Crimp |
| Number of Positions | 12 | ||
Product Info
| Name | 塑壳 | Note | Contacts Not Provided |
| Type | Housing | Unit | PCS |
| Gender | RCP | Series | DF11 |
| DELETED | Compliant | Quantity | 1000.0 |
| Product Type | Plugs - Housings | Manufacturing Country | 日本 |
| Minimum Order Quantity | 1 | ||
Environmental
| Operating Temperature | -30C to 85C | ||
