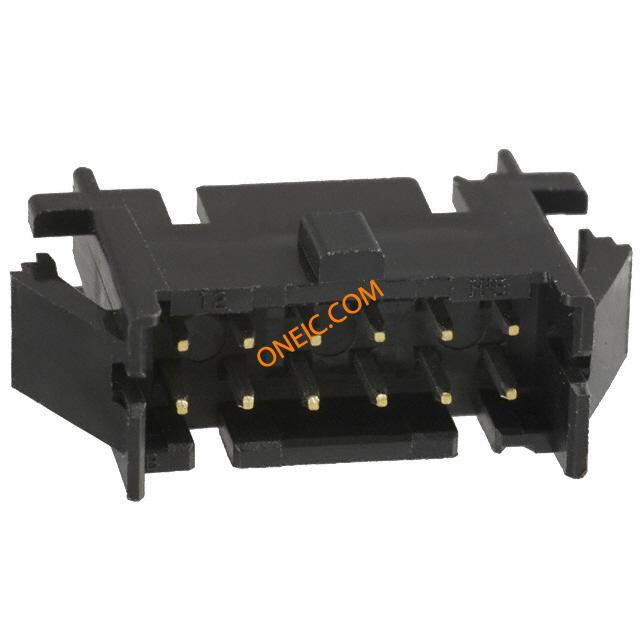

DF11-12DEP-2A

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2MM M/M ADAPTER 12P TIN W/PNL LOCK CONN ADAPTER PLUG/PLUG 12POS 2MM
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 V	Switch Function	Panel Lock
Current Rating (Max)	2 A

Mechanical

Pitch	0.079" (2.00mm)	Packaging	Bag
Row Spacing	0.079" (2.00mm)	Lead Spacing	0.079" (2.00mm)
Mounting Type	Panel Mount, Snap-In	Contact Finish	Tin
Number of Rows	2	Contact Material	Brass
Housing Material	Polyamide	1st Contact Gender	Pin (Male)
Number of Contacts	12	Number of Positions	12

Product Info

Type	Adapters	Series	DF11
Product Type	Connectors	Output Configuration	Panel Mount, Snap-In
Convert To (Adapter End)	Plug, Male Pins	Convert From (Adapter End)	Plug, Male Pins

Documents & Media

PDF Document

DF11 Series

PDF Document

e54305002.pdf
