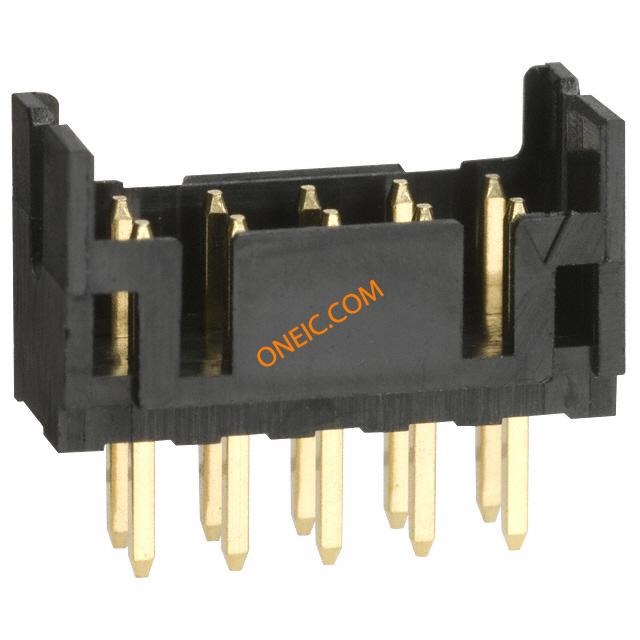

DF11-10DP-2DSA(01)

Manufacturer	Hirose Electric Co., Ltd.
Description	Headers & Wire Housings 2MM V PCB HEADER 10P DR THRU-HOLE GLD CONN HEADER 10POS 2MM PCB GOLD Conn Shrouded Header HDR 10 POS 2mm Solder ST Thru-Hole Bag
Category	Connector SolutionsBoard to Board ConnectorsBoard-to-Board Connectors

对参数有疑问？问 AI 助手

Business

Product Category	Headers & Wire Housings	Standard Package	100
Factory Pack Quantity	100

Compliance

RoHS

RoHS Compliant

Electrical

Voltage Rating	250 V	Contact Resistance	30 mohm
Current Rating (Max)	2 A

Mechanical

Color	Black	Depth	5 mm
Pitch	2 mm	Height	6.6 mm
Length	12 mm	Packaging	Bag
Row Spacing	0.079" (2.00mm)	Termination	Solder
Contact Type	Male Pin	Housing Color	Black
Mounting Type	Vertical	Connector Type	Header, Shrouded
Contact Finish	Gold	Fastening Type	Detent Lock
Mounting Style	Through Hole	Number of Rows	2
Contact Material	Brass	Housing Material	Polyamide
Length - Overall	12 mm	Termination Style	Solder Pin
Number of Contacts	10	Number of Positions	10
Contact Length - Mating	0.118" (3.00mm)

Product Info

Type	Shrouded	Gender	HDR
Series	DF11	DELETED	Compliant
Product Type	Headers - Shrouded	Number of Positions Loaded	All

Environmental

Operating Temperature

-30C to 85C

Documents & Media

PDF Document

e54305002.pdf

PDF Document

DF11 Series

Similar Parts

DF11Z-10DS-2V(20)

Hirose Connector

ヘッダ & ワイヤハウジング 2MM V PCB RECEPTACLE 10P DR SMT TIN CONN RECEPT 10POS 2MM SMD TIN Headers & Wire Housings 2MM V PCB RECEPTACLE 10P DR SMT TIN

$3.0056

Details

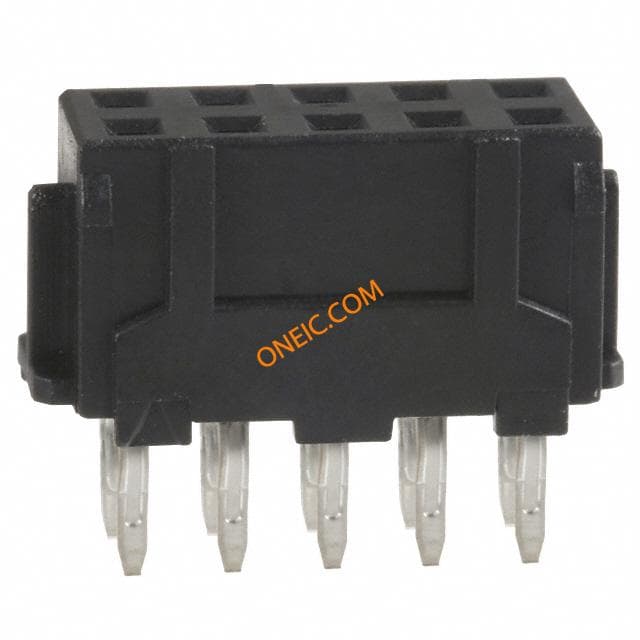

DF11-10DS-2DSA(05)
